Introducing the Bykski 120 Universal Distro Plate: Elevated Protection with Full Armor PMMA and 5v Addressable RGB (RBW)

Revitalize your loop's aesthetics with the Bykski 120 Universal Distro Plate. This innovative solution offers a distinctive and captivating upgrade for your system. Designed to accommodate a 120 radiator, these distribution plates are not bound to any specific case, allowing you to integrate them seamlessly into your setup.

One of the notable features is the optional inline pump, which serves as the heart of your loop, enabling you to power your entire system from a central focal point.

Included in the package are the Distro Plate itself, mounting hardware for easy installation, an A-RGB (RBW) LED strip for stunning lighting effects, and the choice of equipping a DDC pump with armor, a DDC pump with LCD, or opting for no pump at all.

Bykski Distro Plates offer more than aesthetics; they deliver exceptional performance and a clean, visually captivating water-cooling solution. Elevate your system's appearance while maintaining high-quality performance with Bykski.

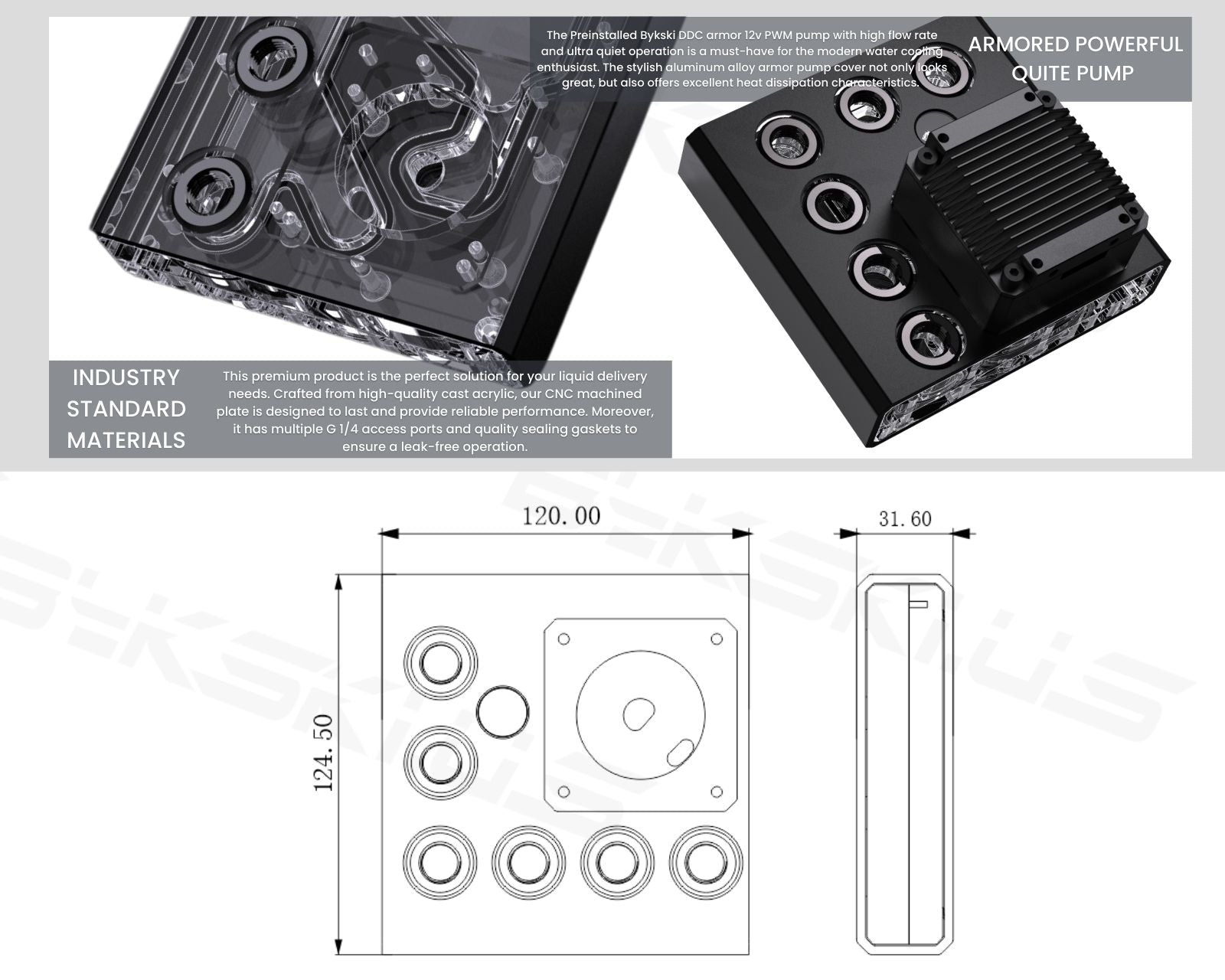

Specifications - Distro Plate

• Material: PMMA
• Thread: G 1/4

Compatibility

• Universal fit in 120 Radiator space
• Loop: Aluminum or Non-Aluminum
• Radiator: Designed for 30mm thick or less

Included Parts

• 1x Distro plate
• Mounting Hardware

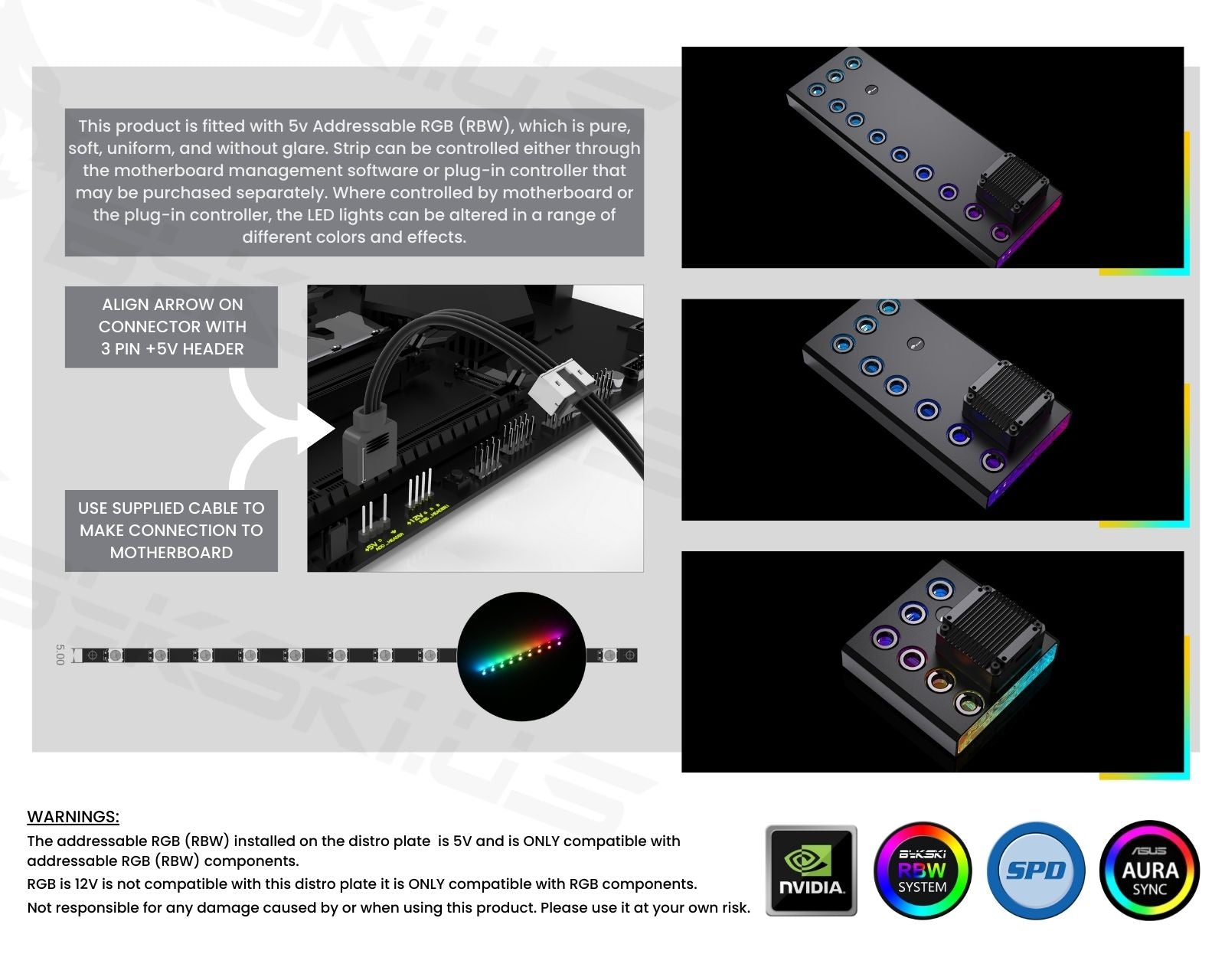

• A-RGB (RBW) LED Strip

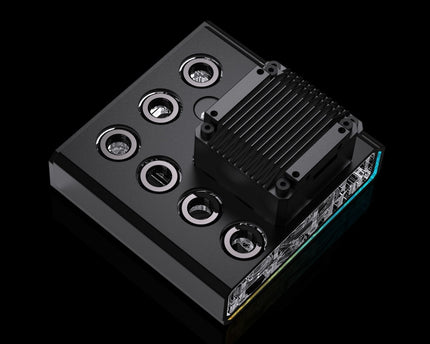

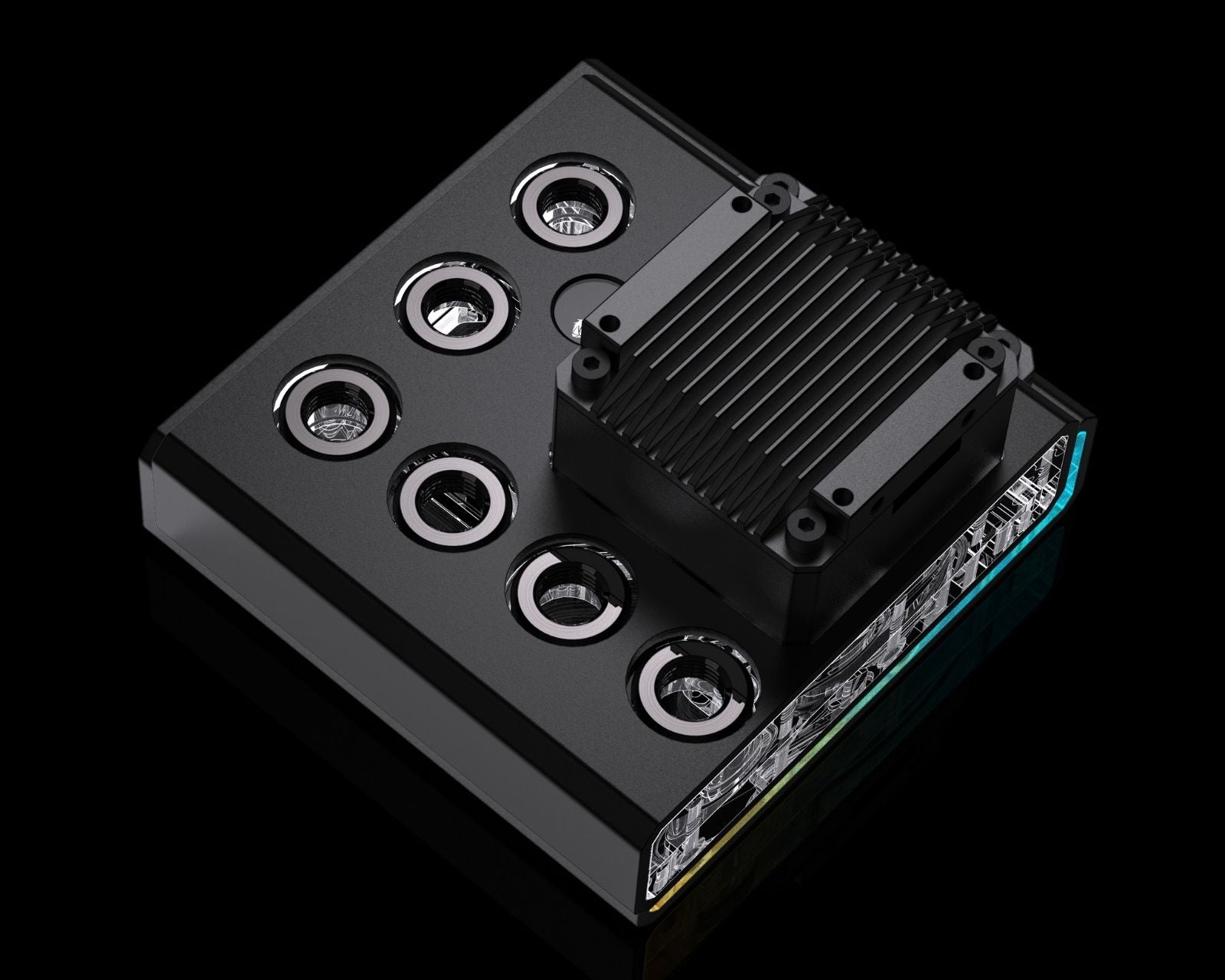

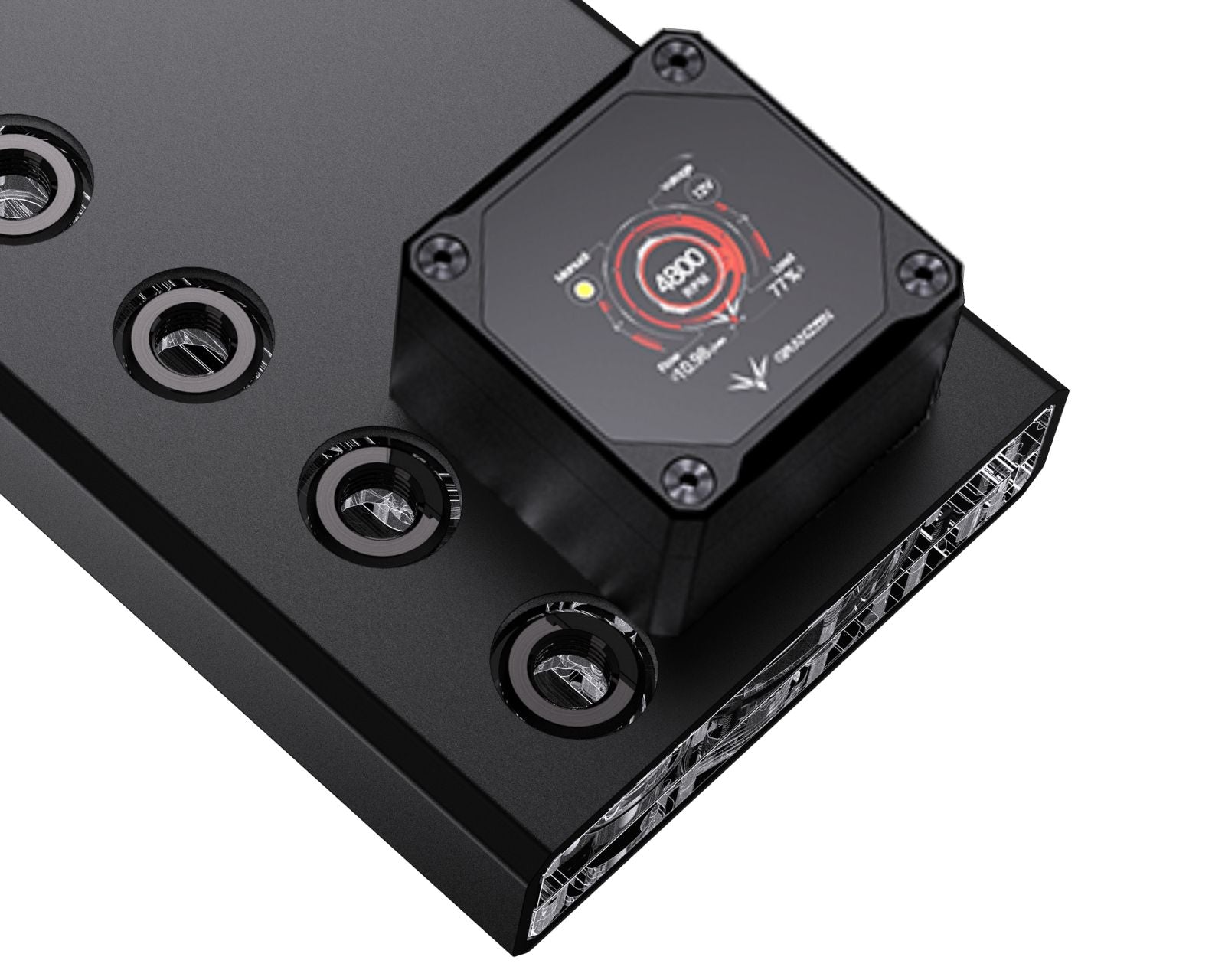

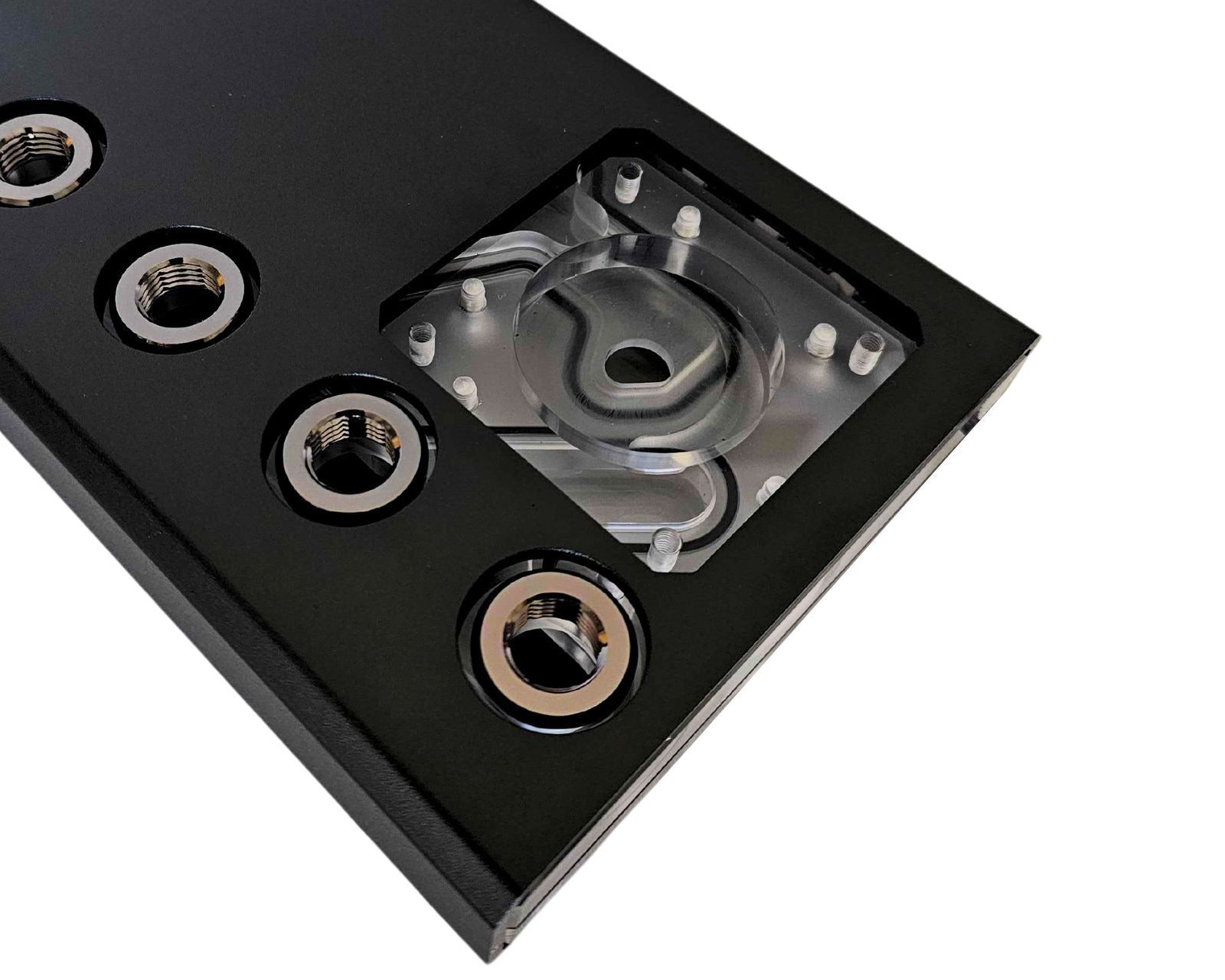

• Optional DDC pump with armor, DDC pump with LCD, or No Pump Included

Specifications - Optional DDC

• Heatsink Material: Aluminum
• Power: Standard 4-pin power connector and a PWM 4-Pin header
• Voltage Range: 10V - 15V DC
• MTBF (Mean Time Between Failure): 50,000 hours equivalent to 5 years of lifetime
• Maximum discharge:~ 132 GPH (600 LPH)
• Max RPM:5000
• Dimensions:62 x 62 x 58mm
• The performance will vary based on the cooling loop dynamic

Warnings

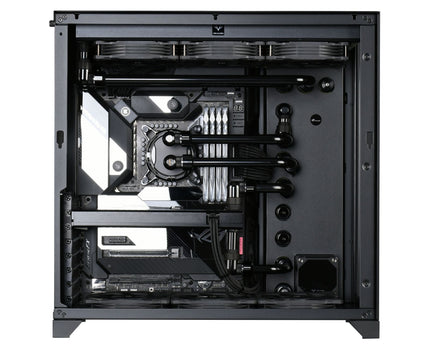

Depending on the motherboard, blocks, fittings used, and layout, the connecting tubing may not appear as pictured (perfectly horizontal). Not responsible for any hardware damage. Use at your own risk.
