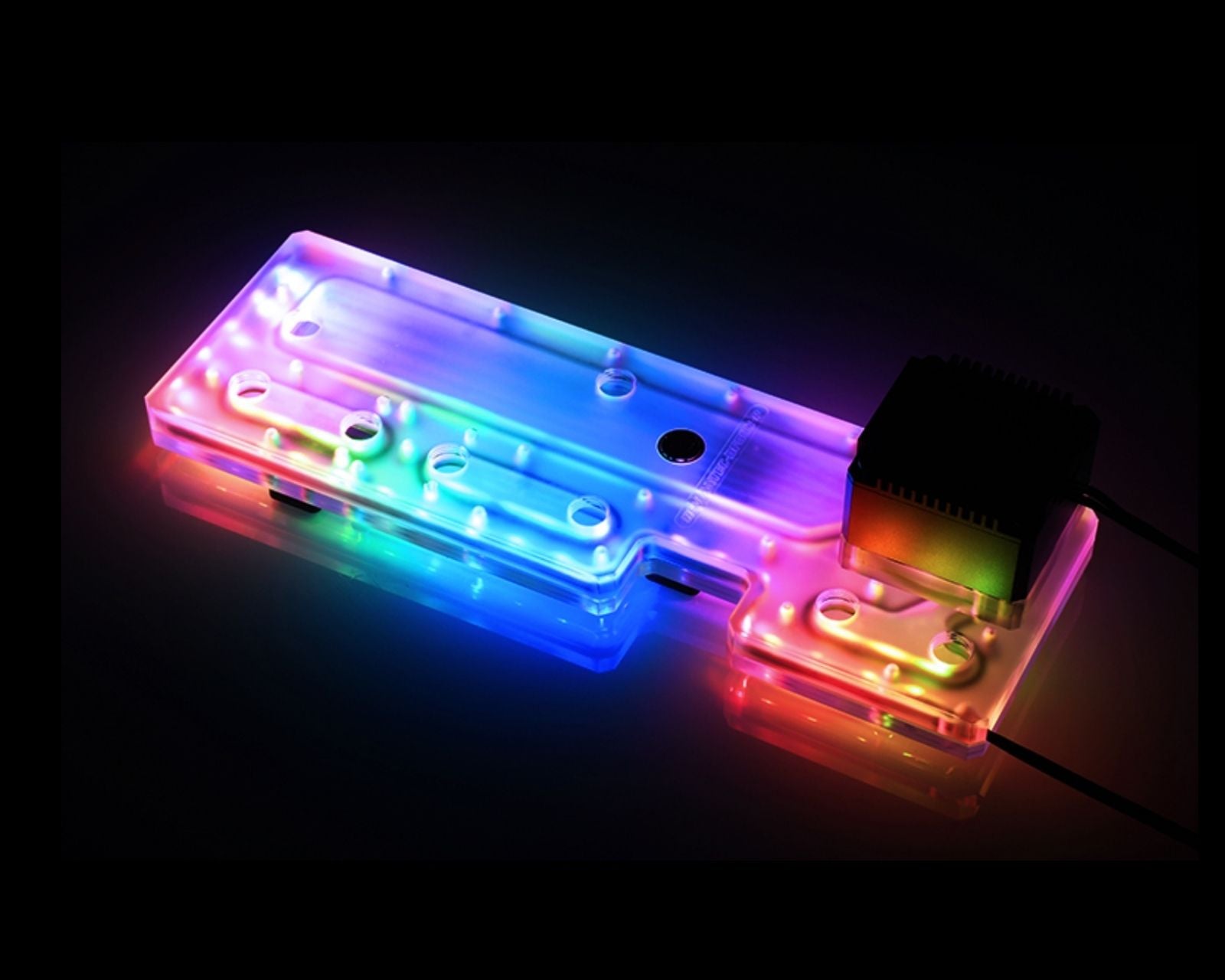

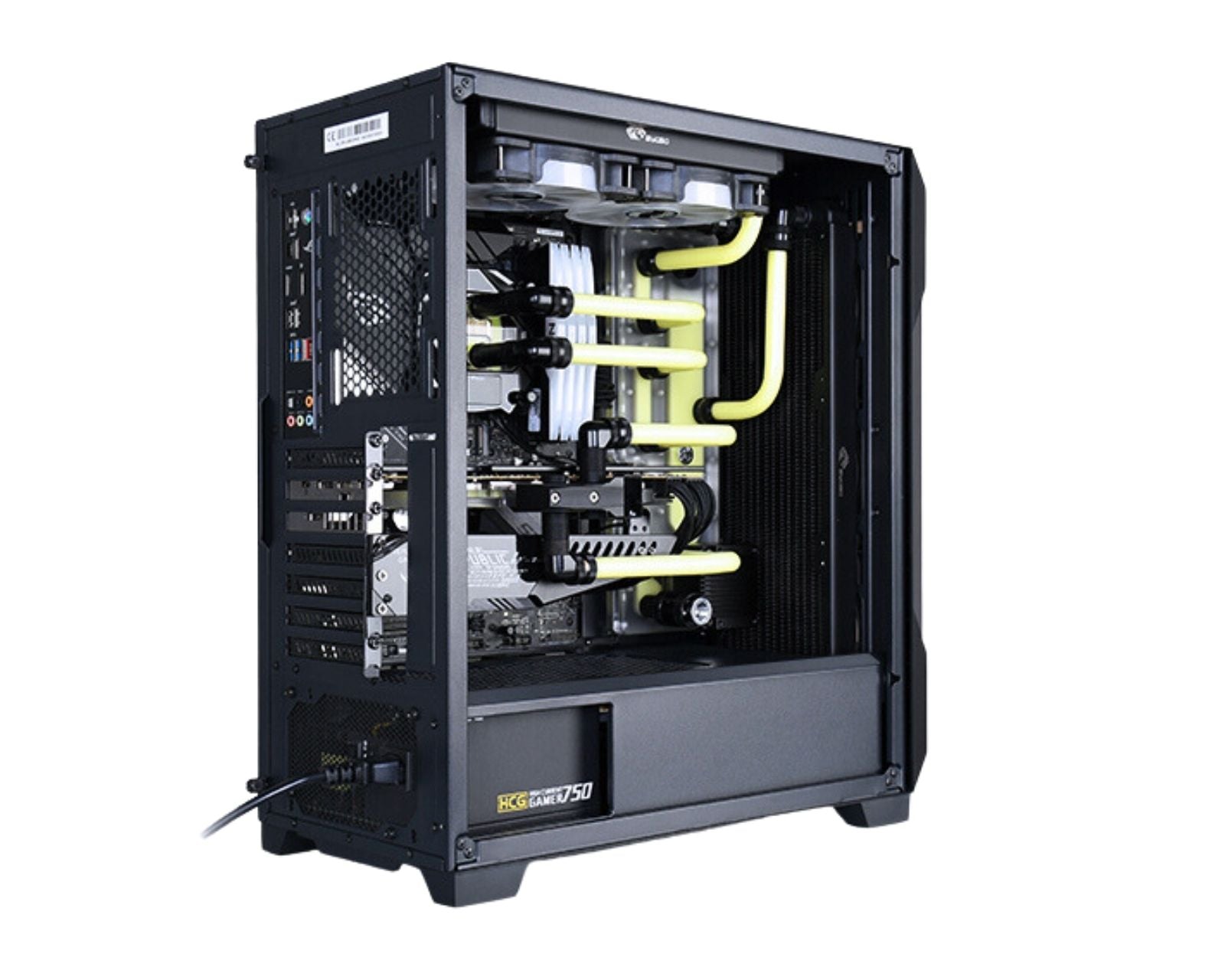

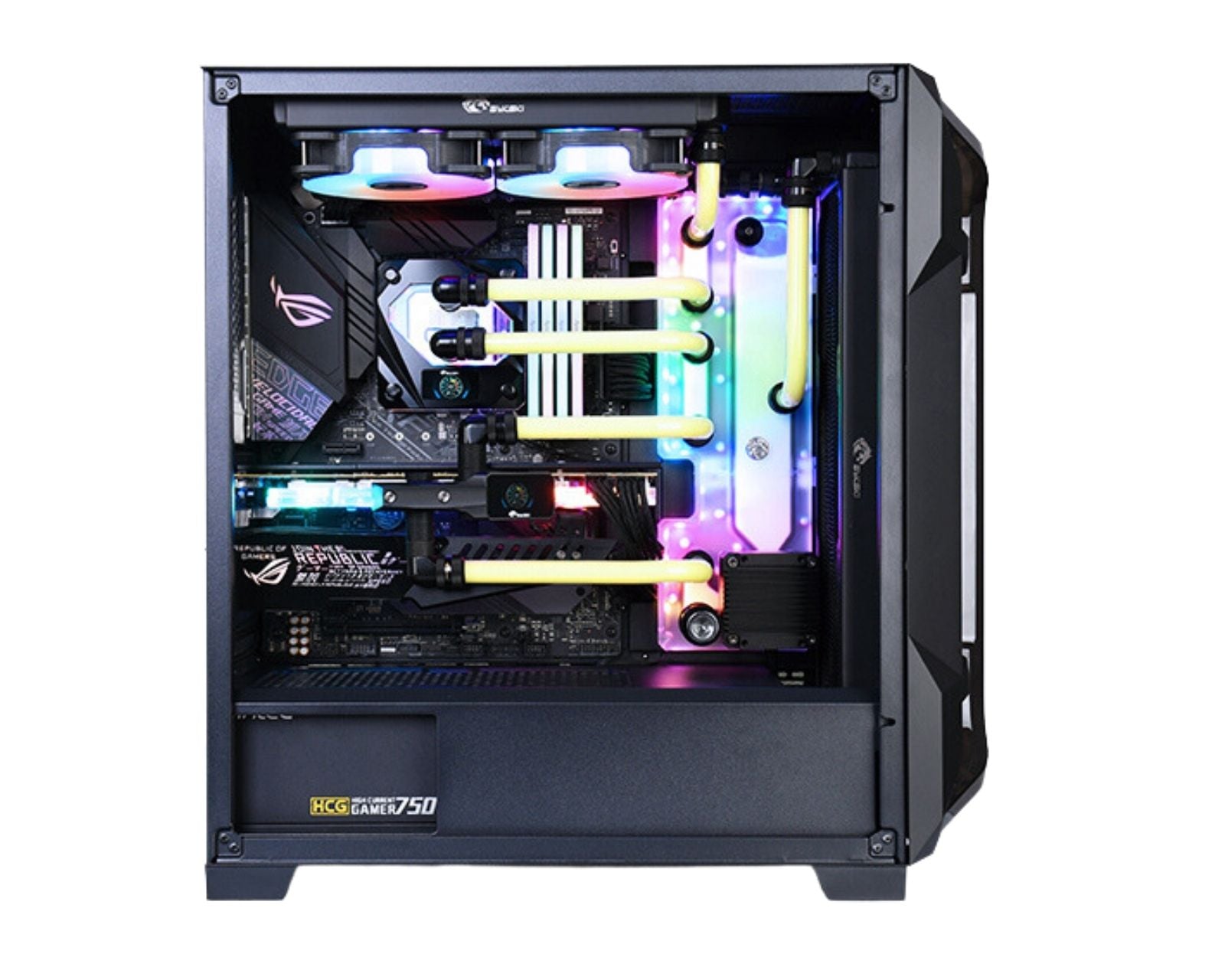

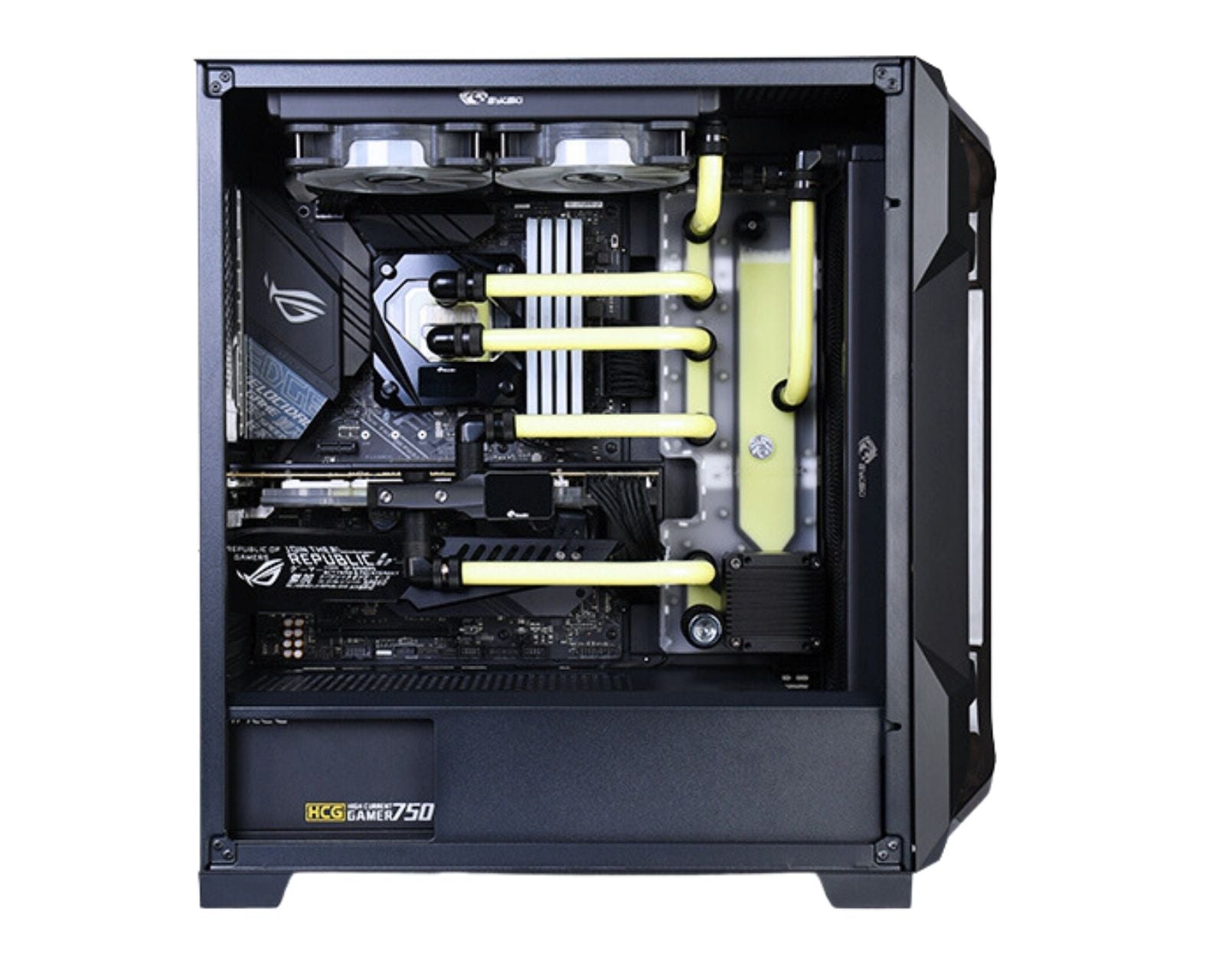

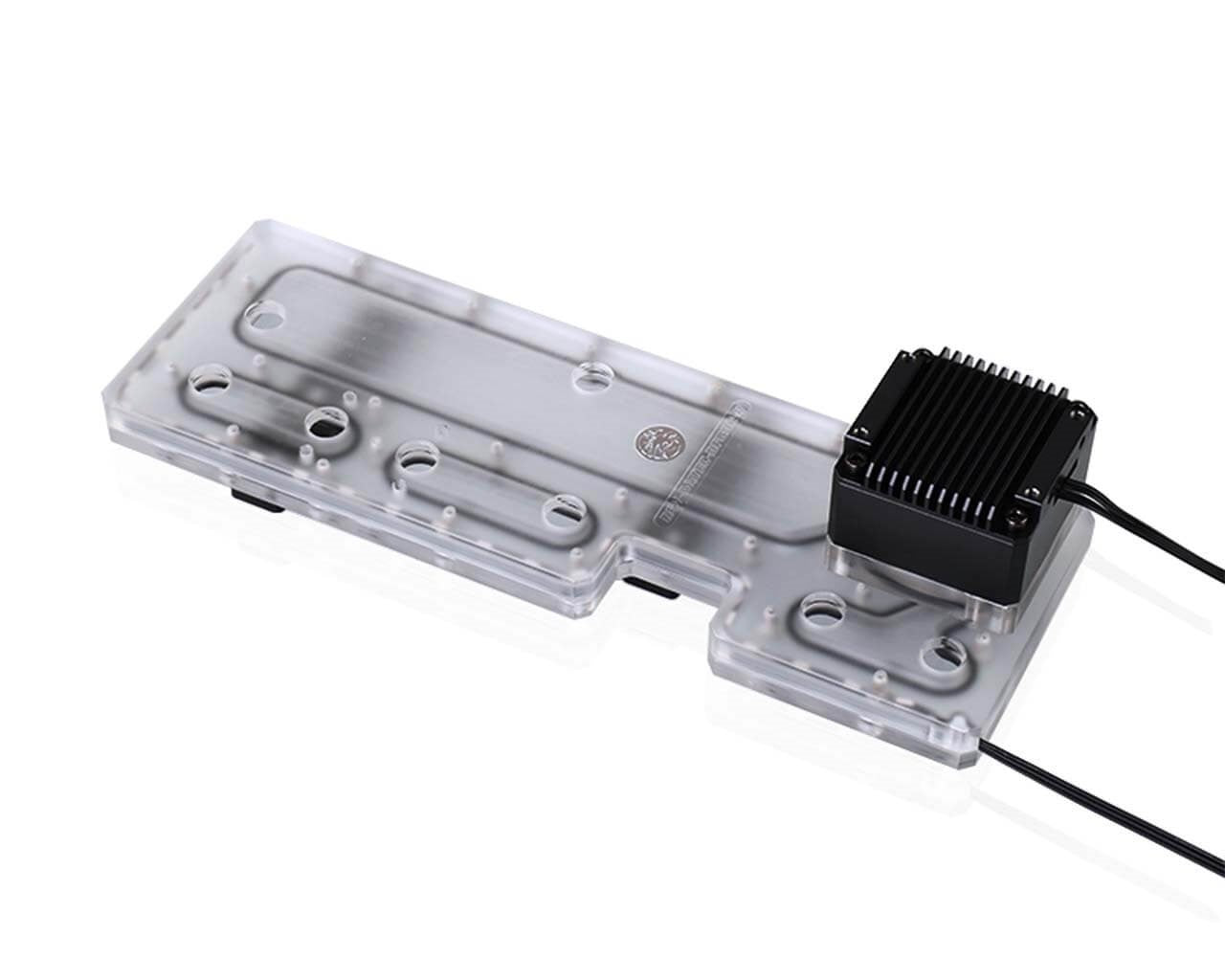

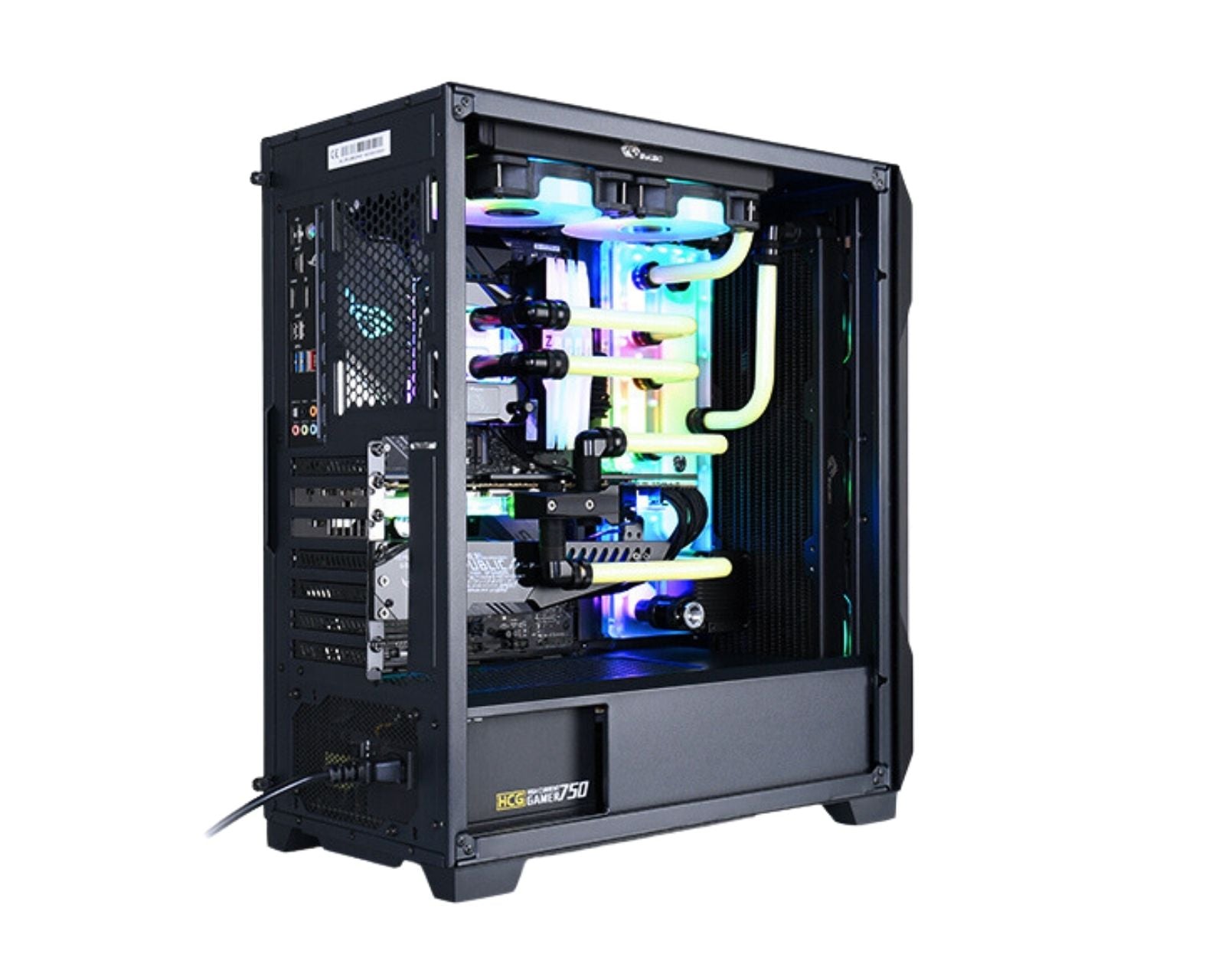

The Bykski Distro or Distribution Plates provide a distinct and innovative way to enhance your loop's appearance. These plates are customized to fit your specific case, creating a sleek and parallel look. The already installed inline pump allows you to power your entire loop from the centerpiece.

The Distro Plate is built using Frosted PMMA material, featuring G 1/4 threads, and is designed to be compatible with the Antec DF600 / DP502  case. It works well with Aluminum and Non-Aluminum loops and is engineered to support radiators up to 30mm thick or less.

In addition to the Distro Plate itself, the package includes mounting hardware, an A-RGB (RBW) LED strip and a DDC pump with armor.  Bykski Distro Plates are an excellent option for those looking for a clean, visually appealing water-cooling solution that provides high-quality performance.

Specifications - Distro Plate

• Material: Frosted PMMA
• Thread: G 1/4

Compatibility

• Compatible with Antec DF600 / DP502
• Loop: Aluminum or Non-Aluminum
• Radiator: Designed for 30mm thick or less

Included Parts

• 1x Distro plate
• Mounting Hardware

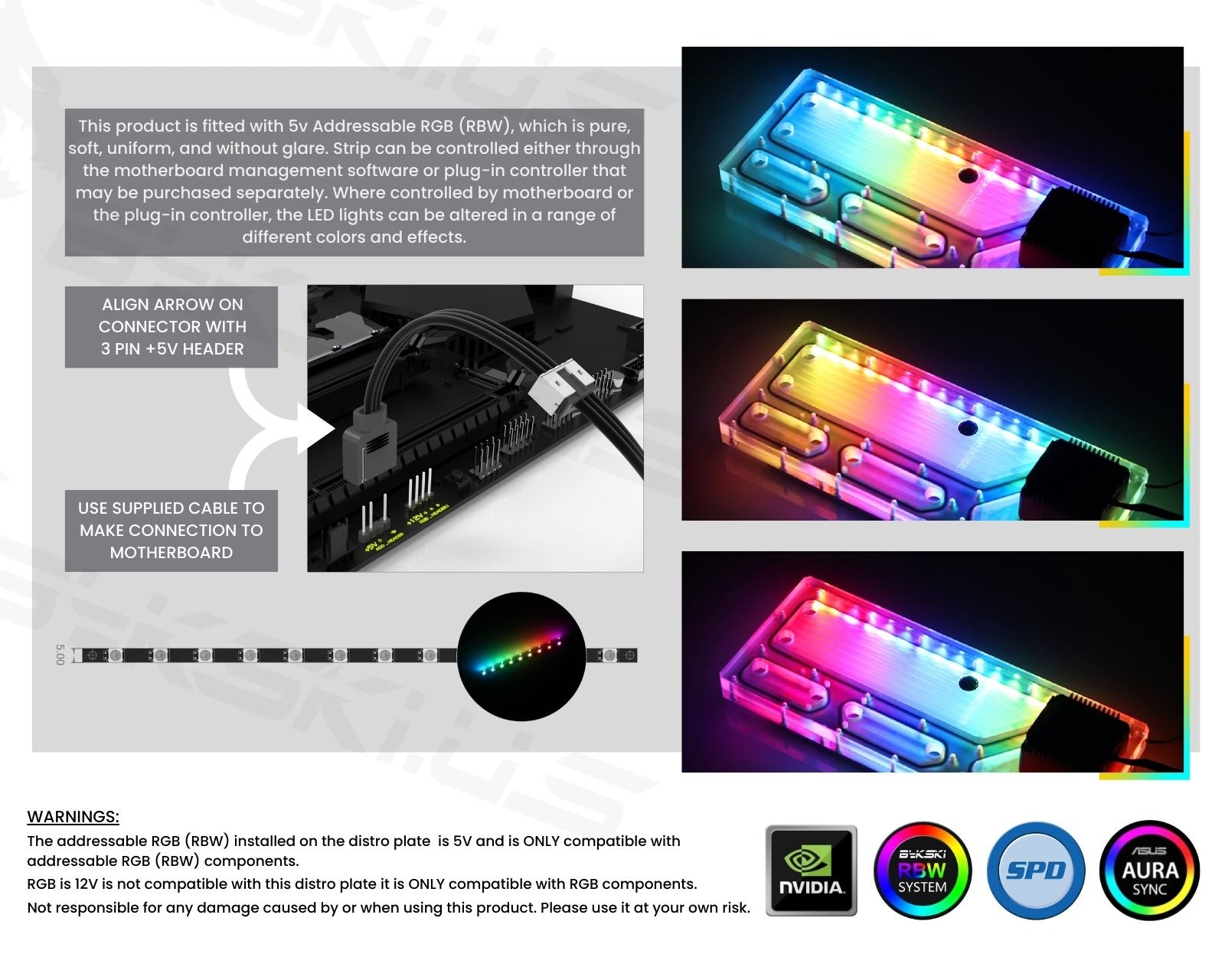

• A-RGB (RBW) LED Strip
• DDC pump with armor

Specifications -  DDC

• Heatsink Material: Aluminum
• Power: Standard 4-pin power connector and a PWM 4-Pin header
• Voltage Range: 10V - 15V DC
• MTBF (Mean Time Between Failure): 50,000 hours equivalent to 5 years of lifetime
• Maximum discharge:~ 132 GPH (600 LPH)
• Max RPM:5000
• Dimensions:62 x 62 x 58mm
• The performance will vary based on the cooling loop dynamic

Warnings
This block is designed specifically for this case. Depending on the motherboard, blocks, fittings used, and layout, the connecting tubing may not appear as pictured (perfectly horizontal). Not responsible for any hardware damage. Use at your own risk.
