About this part

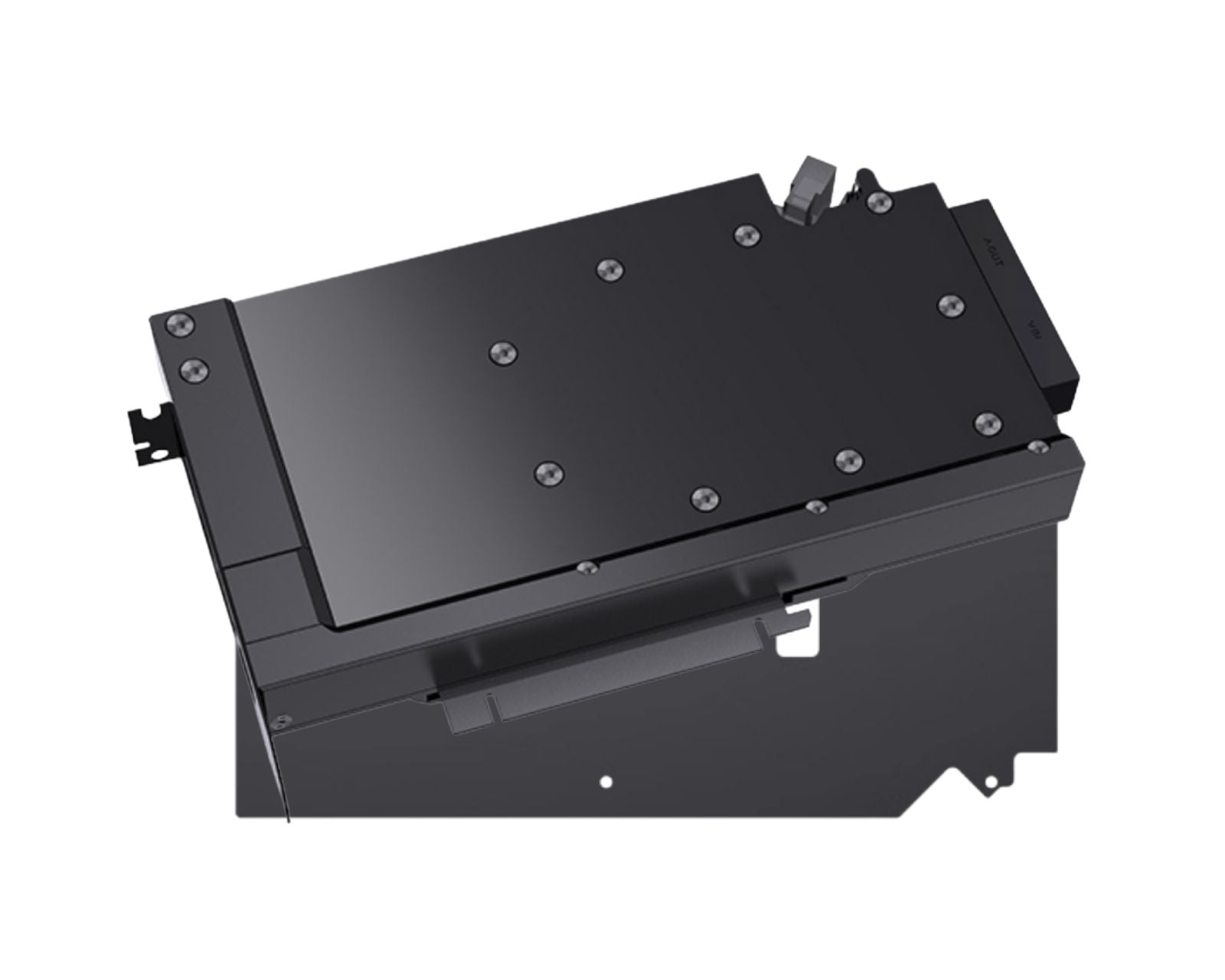

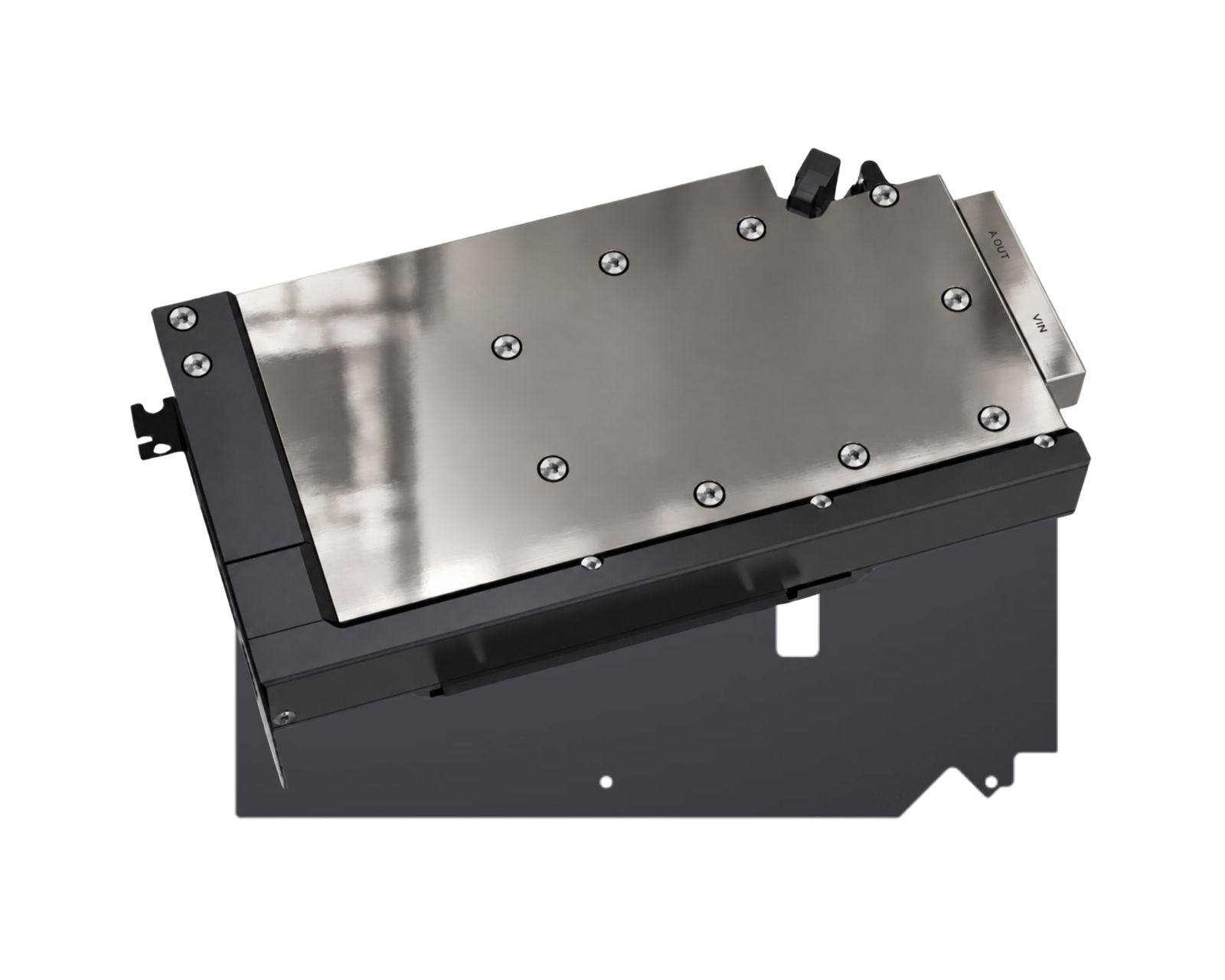

The Bykski N-RTX5090FE-SR is a full-cover metal GPU water block with backplate for custom liquid-cooled workstations, servers and data-center builds that run around the clock. It fits the NVIDIA GeForce RTX 5090 Founders Edition and cools the GPU chip, memory and power stages in one pass.

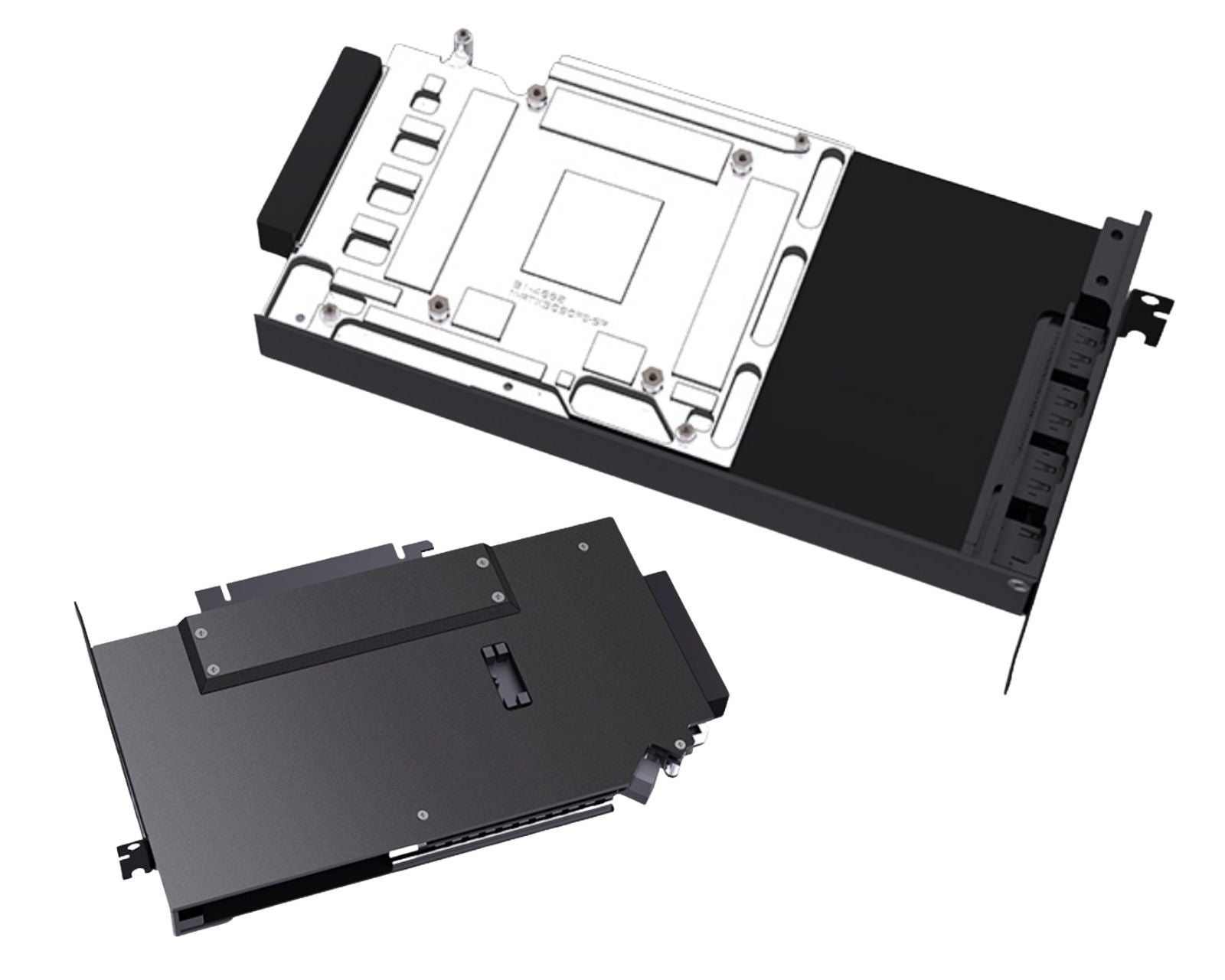

A jet impingement cold plate drives coolant through 56 fine microchannels right over the GPU chip, pulling heat away quickly under sustained load. The all-metal build, with no acrylic, is made for machines that stay on, and an anodized aluminum backplate stiffens the board against flexing. Standard G1/4 ports connect it to an existing loop.
- GPU water block with backplate: 1
- Thermal paste: 1
- 1.5 mm thermal pads: 5
- 0.5 mm washers: 4
- Spring screws: 4
- Backplate screws: 4
- M2 x 5 mm cross flat head screws: 8
- M1.5 x 4 mm cross flat head screws: 2
- Backplate brackets: 2
- M2 x 3 mm flat head screws: 8
- PCI-E bracket: 1
- M3 x 5 mm flat head screws: 3
Technical specifications 21 specs
| Model | N-RTX5090FE-SR |
|---|---|
| Base Material | Nickel-Plated T2 Copper |
| Top Panel Material | Nickel-Plated Copper |
| Backplate Material | Anodized Aluminum |
| Sealing O-Ring | EPDM |
| Nickel Plating Thickness | 0.001 mm - 0.002 mm |
| Base Plate Thickness | 9.5 mm |
| Base Plate Core Thickness | 0.35 mm |
| Copper Plate Length | 136.55 mm |
| Microchannel Width | 0.3 mm |
| Microchannel Count | 56 |
| Heat Dissipation Area | 15565.30 mm2 |

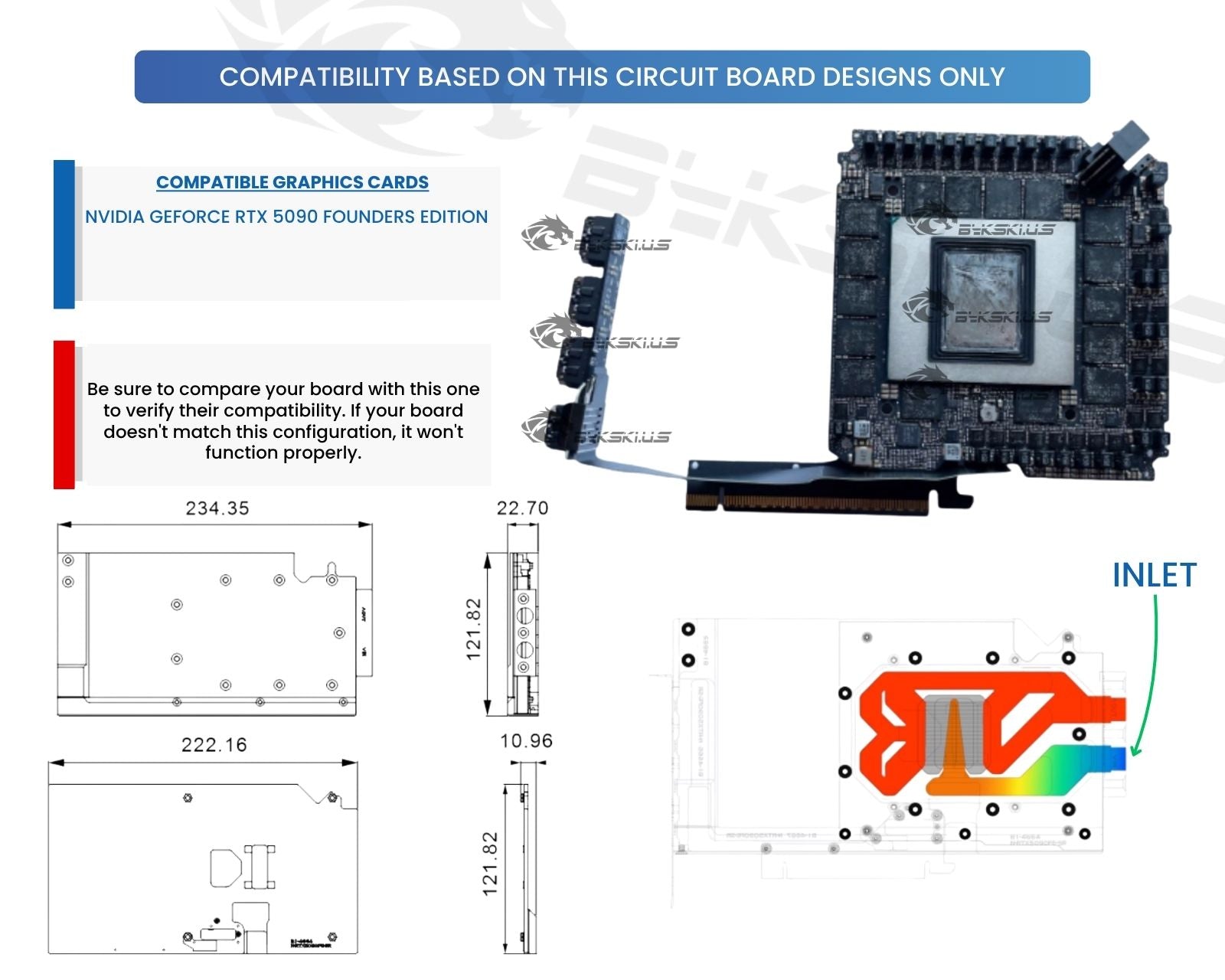

| Water Block Dimensions | 234.35 x 121.82 x 22.70 mm |
| Backplate Dimensions | 222.16 x 121.82 x 10.96 mm |
| Net Weight | 1.5 kg |
| Thread | G1/4 |
| Maximum Working Pressure | 2 bar |
| Operating Temperature Range | -20 to 60 C |
| Cooling Method | Jet Impingement |
| Supported Fluids | Water, Ethylene Glycol, Propylene Glycol, Fluorinated Fluid, Mineral Oil |
| Warranty | 1 year |
Sealed kit, or just the block
Same cold plate, two ways to buy it, and what happens if you keep the cooler the card shipped with.
 B-FRD-RTX5090FE-SR-360 |
 N-RTX5090FE-SR | Stock cooling
As the card ships
|
|
|---|---|---|---|
| You already have | A case with a 360 mm radiator mount. Nothing else. | A working water-cooling loop: pump, radiator, reservoir, fittings, coolant. | The card and the cooler it came with: a passive fin stack or a small blower, built to be fed by a server's front-to-back airflow. |
| Day one | Remove the stock cooler, install the pads and the block, mount the radiator. Done. | Same block install, then plumb it into your loop, fill and bleed. | Plug it in. In a rack with a cold aisle it runs as designed. In a workstation or desktop case, nothing pushes air through the fin stack. |
| Serviceable | Sealed. Nothing to fill, bleed or top up. | Every part, because it is your loop. | Nothing to service, and nothing to improve: the cooler can only move the heat the case pushes through it. |
| Best for | Servers and workstations that need it running this week. | A build that already has water in it. | The rack it was designed for. Not a desktop, a workstation or an open bench, where it throttles under sustained load. |
| Where to buy it | $549.99 · See the kit | This page | You already own it. |
What buyers said
Left by people who bought this part here. Compatibility reports are the useful ones — if you installed it, say which board.

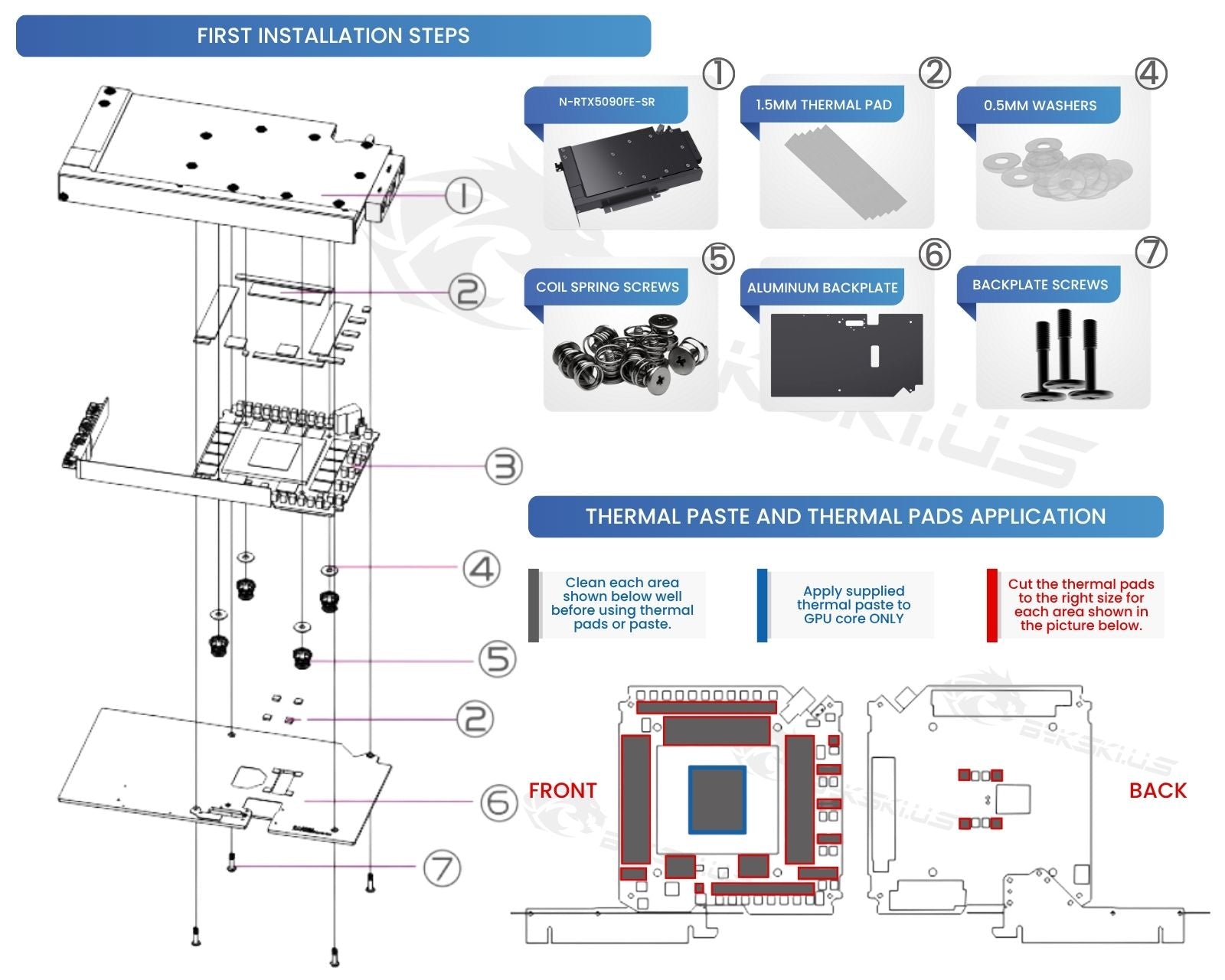

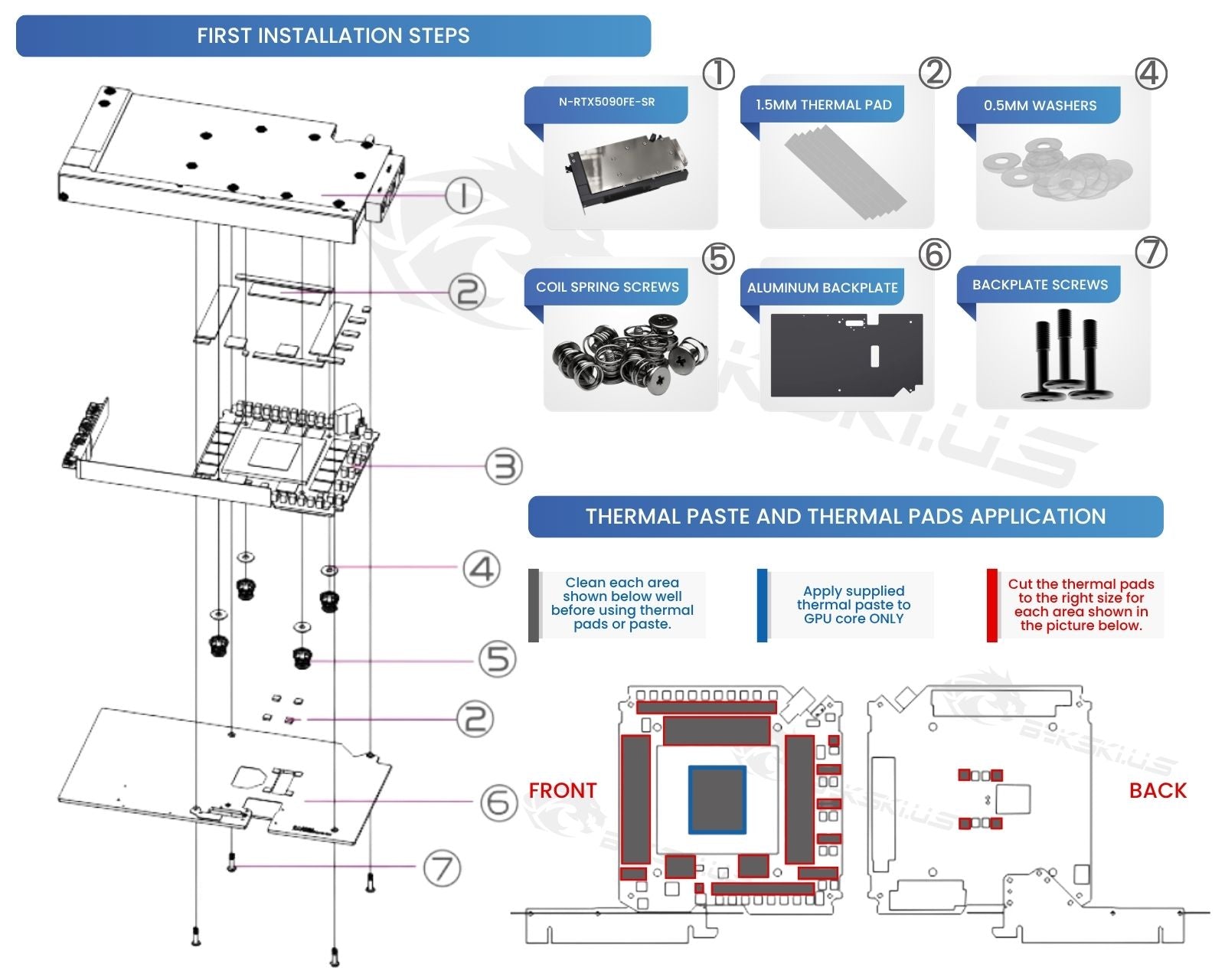

What installing it actually involves
Three steps, in the order that matters. The one people get wrong is the first.
NVIDIA NVIDIA 5090 - GEFORCE RTX 5090 FOUNDERS EDITION — the exact model, not the family. Partner boards differ.
Thermal interface material as supplied. Even mounting pressure, correct bracket orientation, no over-torquing.
Run the pump on a bench supply with the rest of the system unpowered. 24 hours is the standard, an hour is the minimum.
