PrimoChill Black Aluminum Latching Vandal Resistant Switch - 22mm
$14.95
The Black Aluminum Latching Vandal Resistant Switch is a latching switch that remains latched when pressed. Easy to install and will fit on a regular 5.25 drive cover or wherever...
SKU: PSW-BLV22
- In Stock Items Ship Today just order in next:
- No Hassle Returns within 30 days
- Pay within 30 days with Klarna or Shop Pay
Description
The Black Aluminum Latching Vandal Resistant Switch is a latching switch that remains latched when pressed. Easy to install and will fit on a regular 5.25 drive cover or wherever you chose.
Features

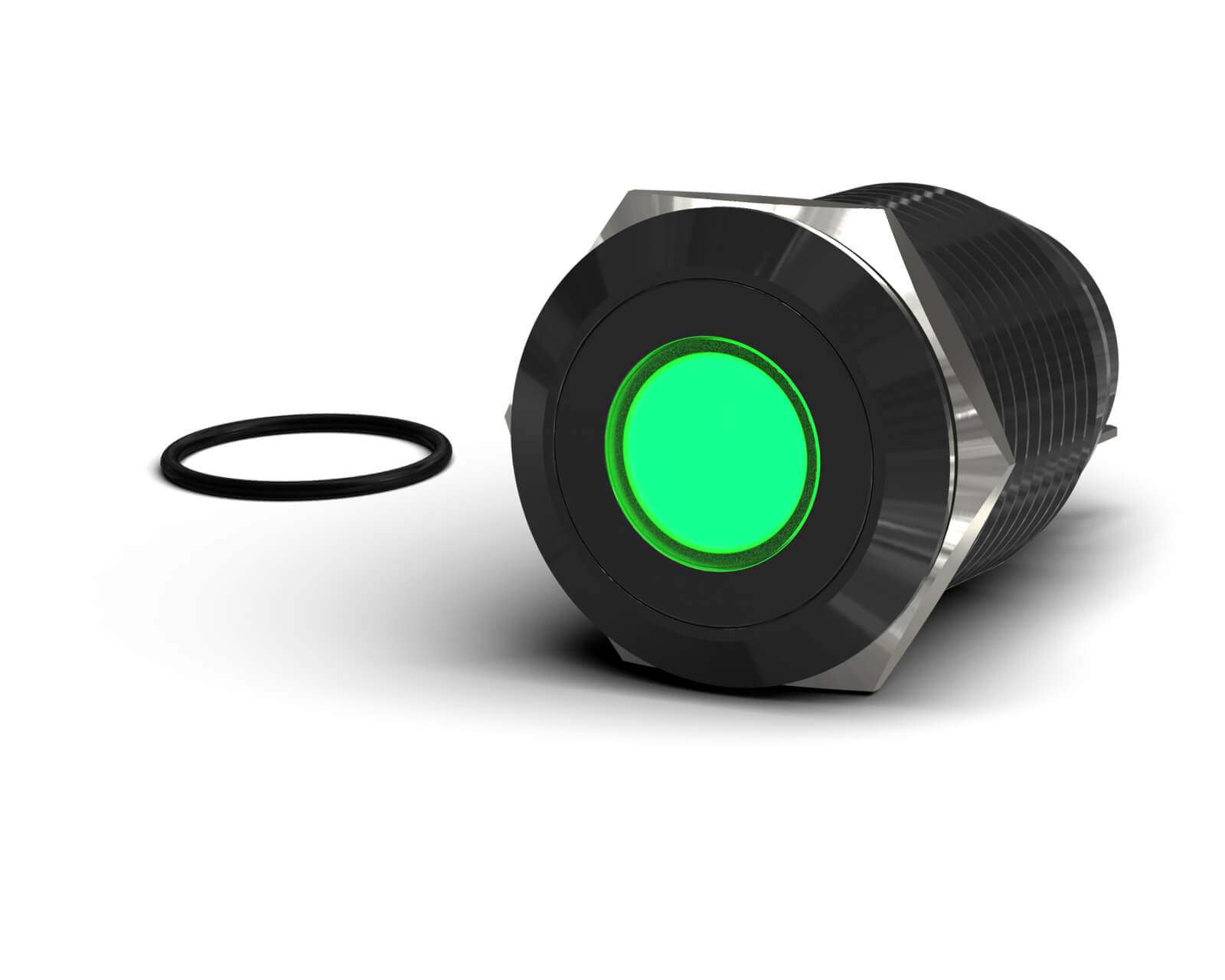

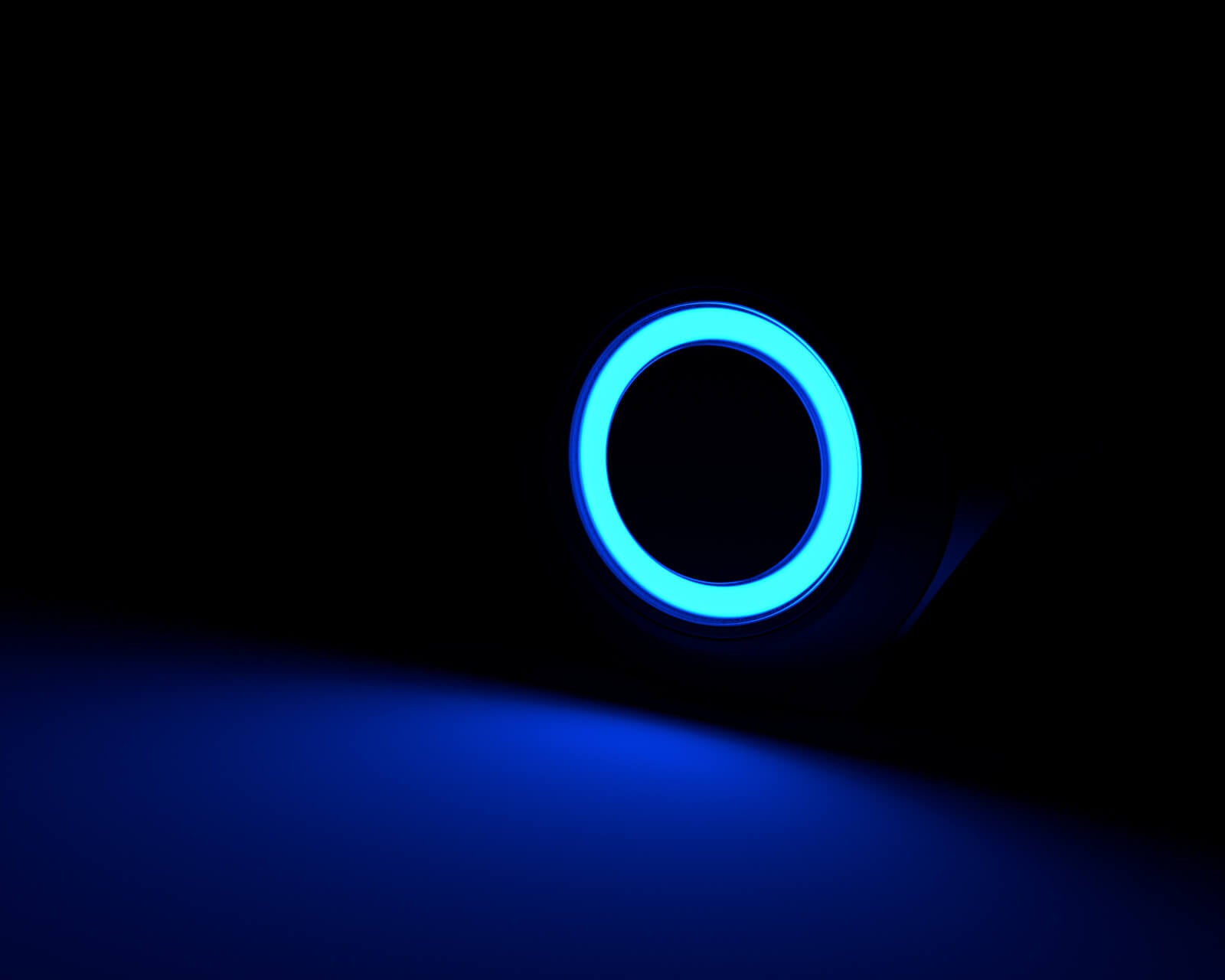

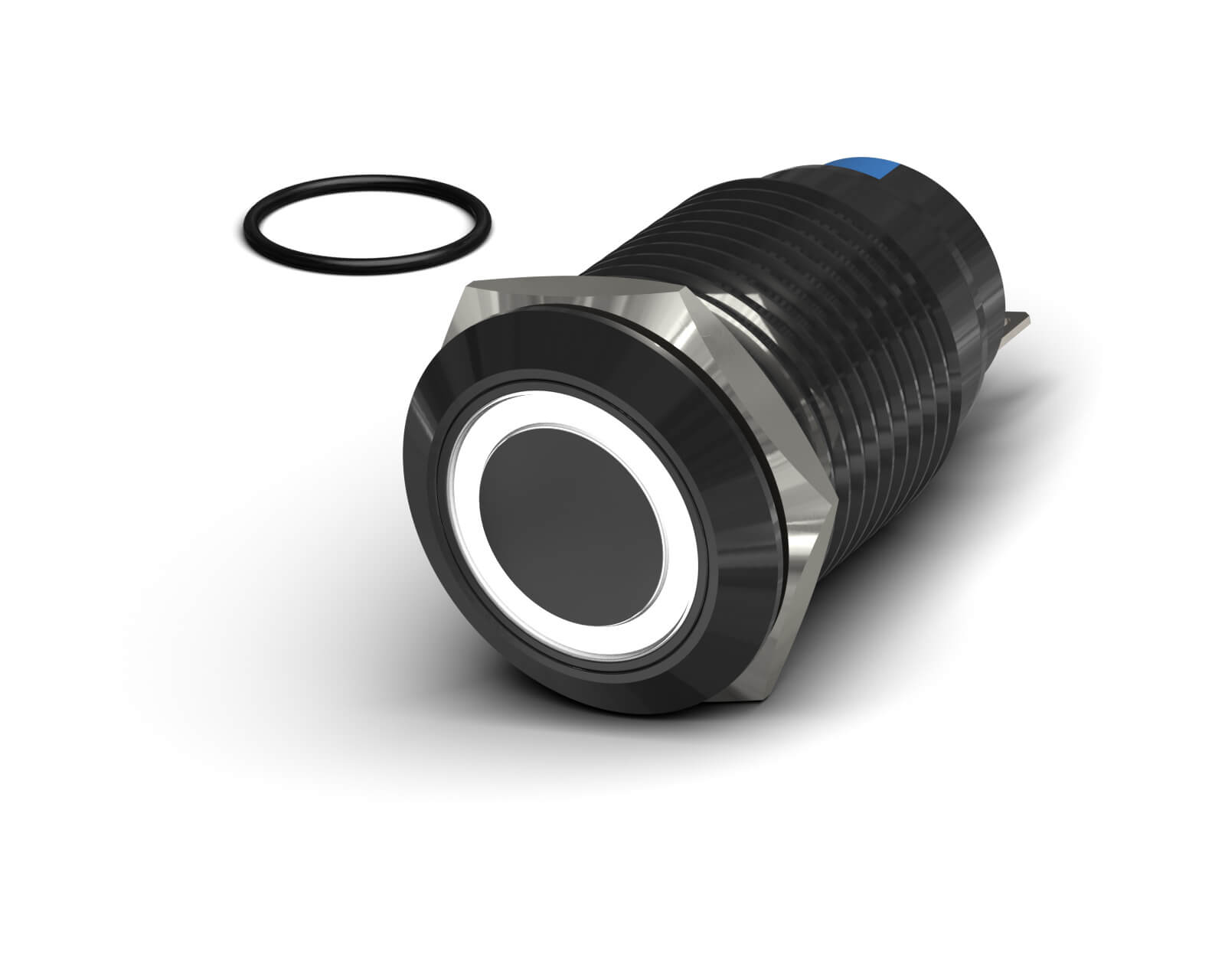

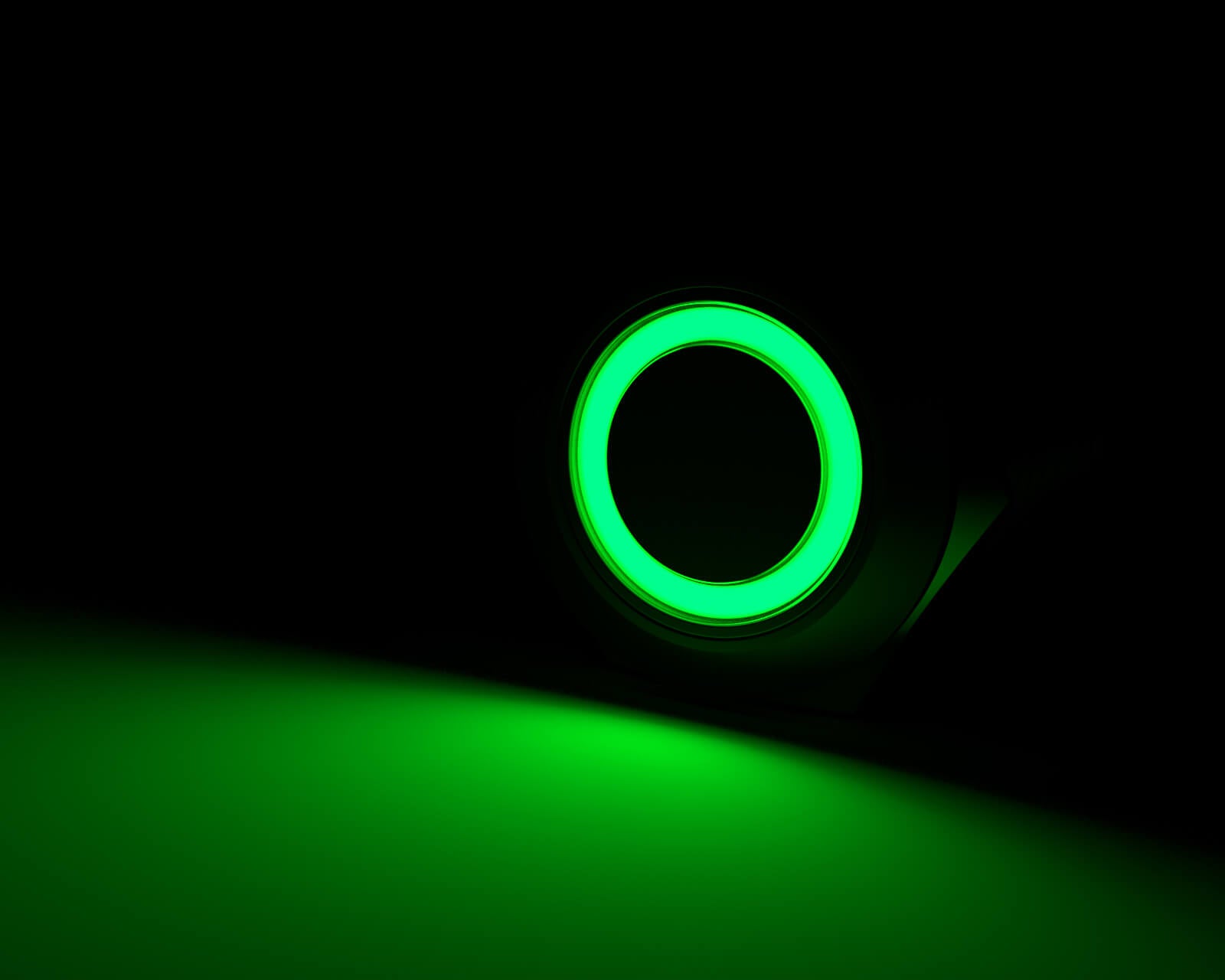

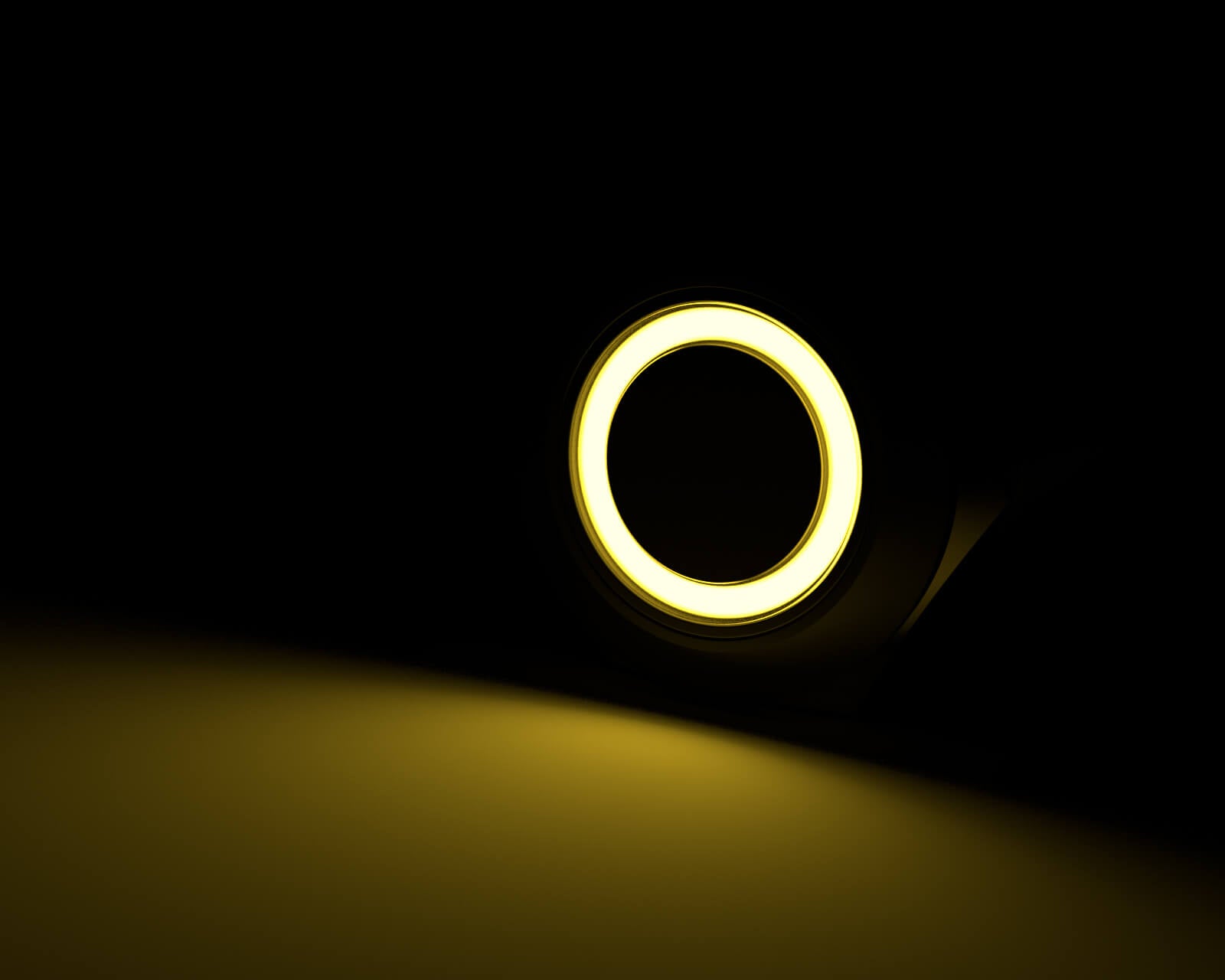

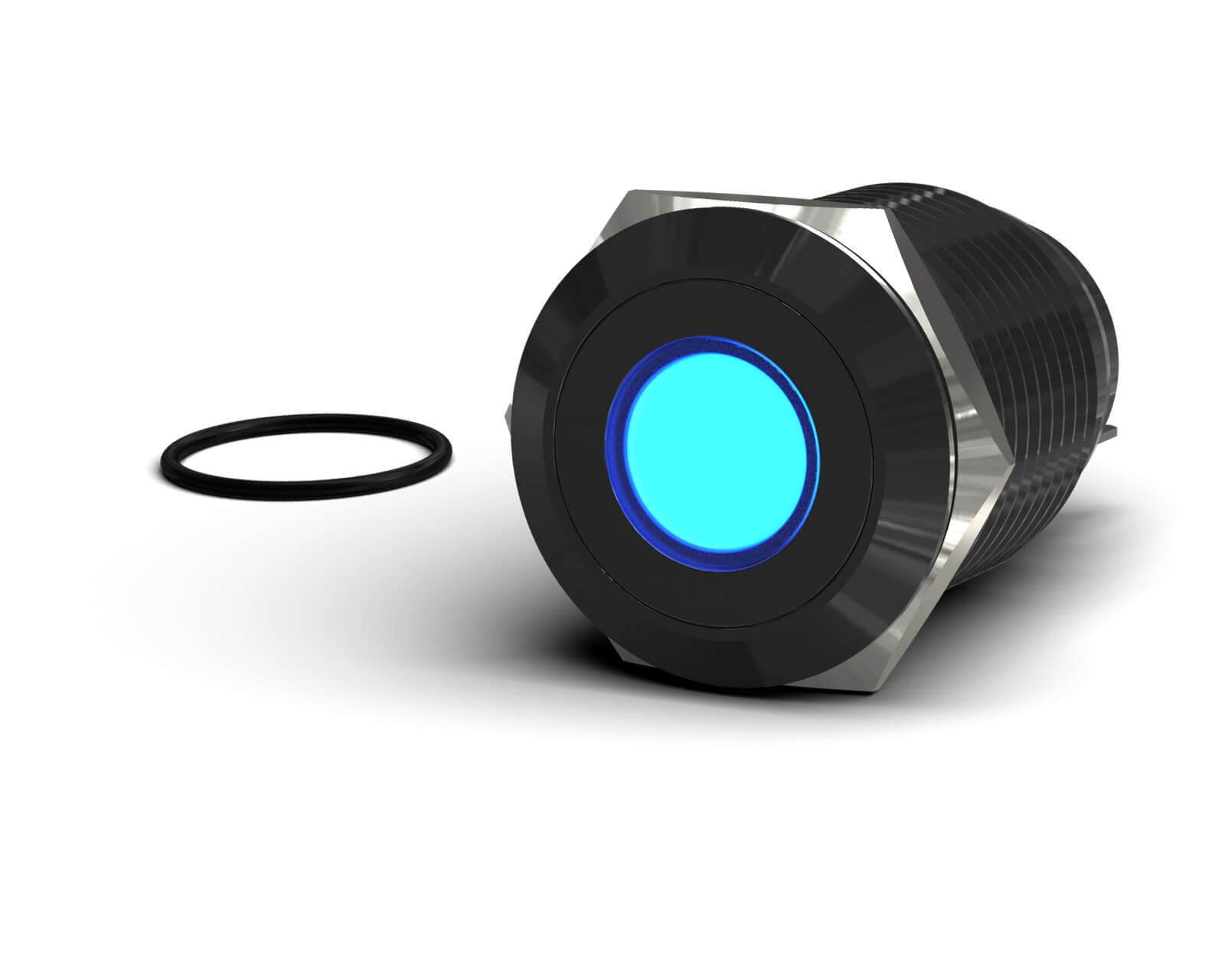

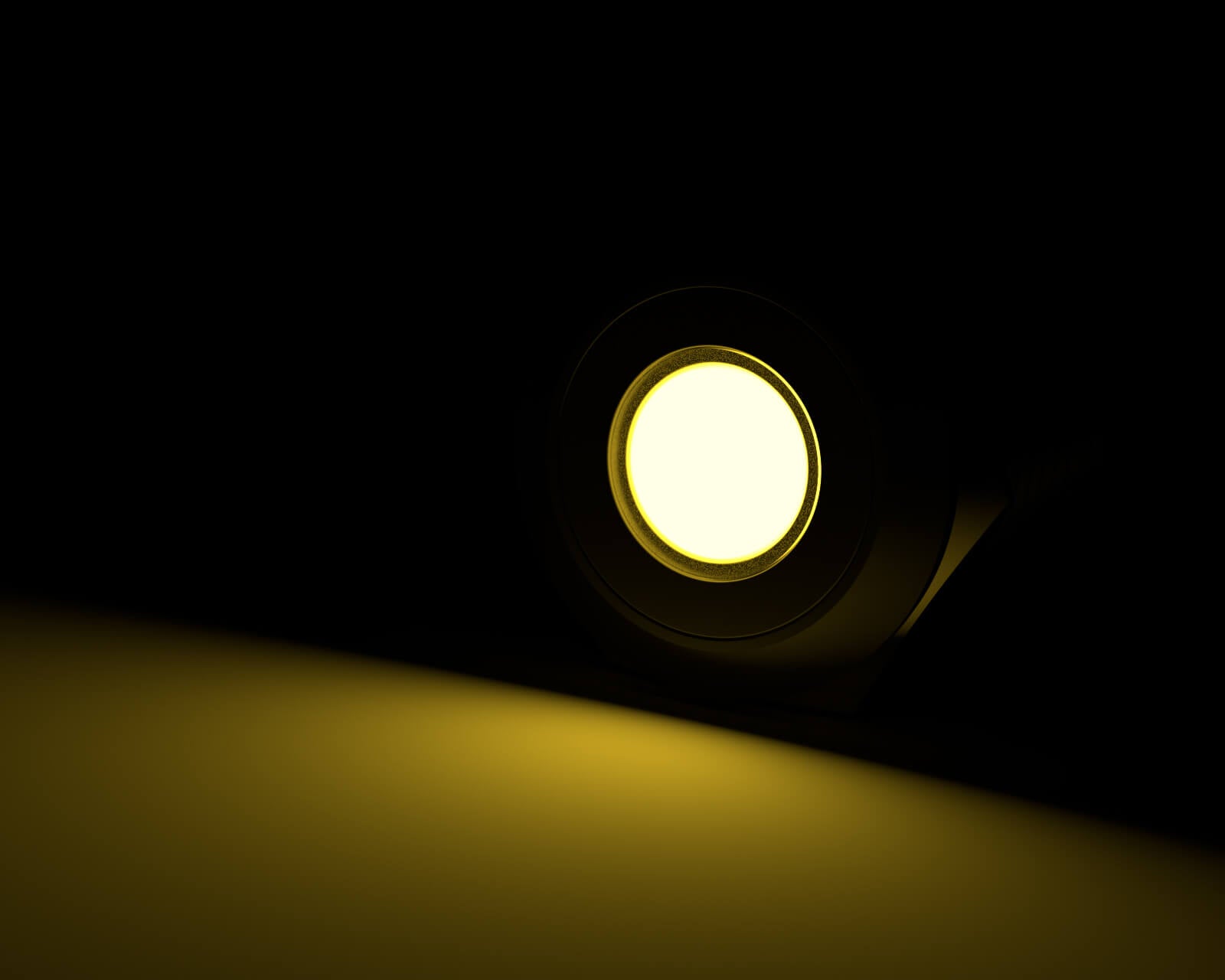

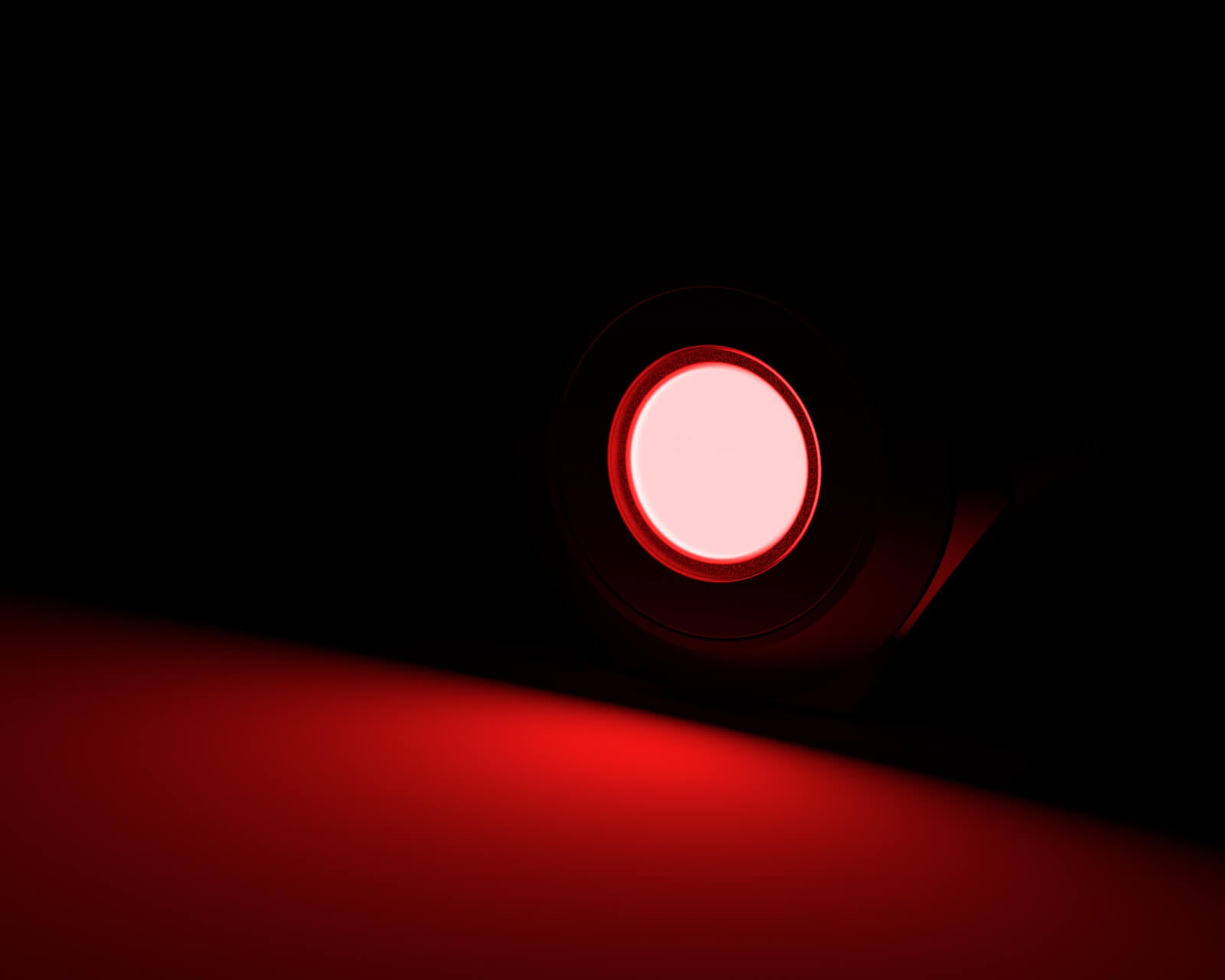

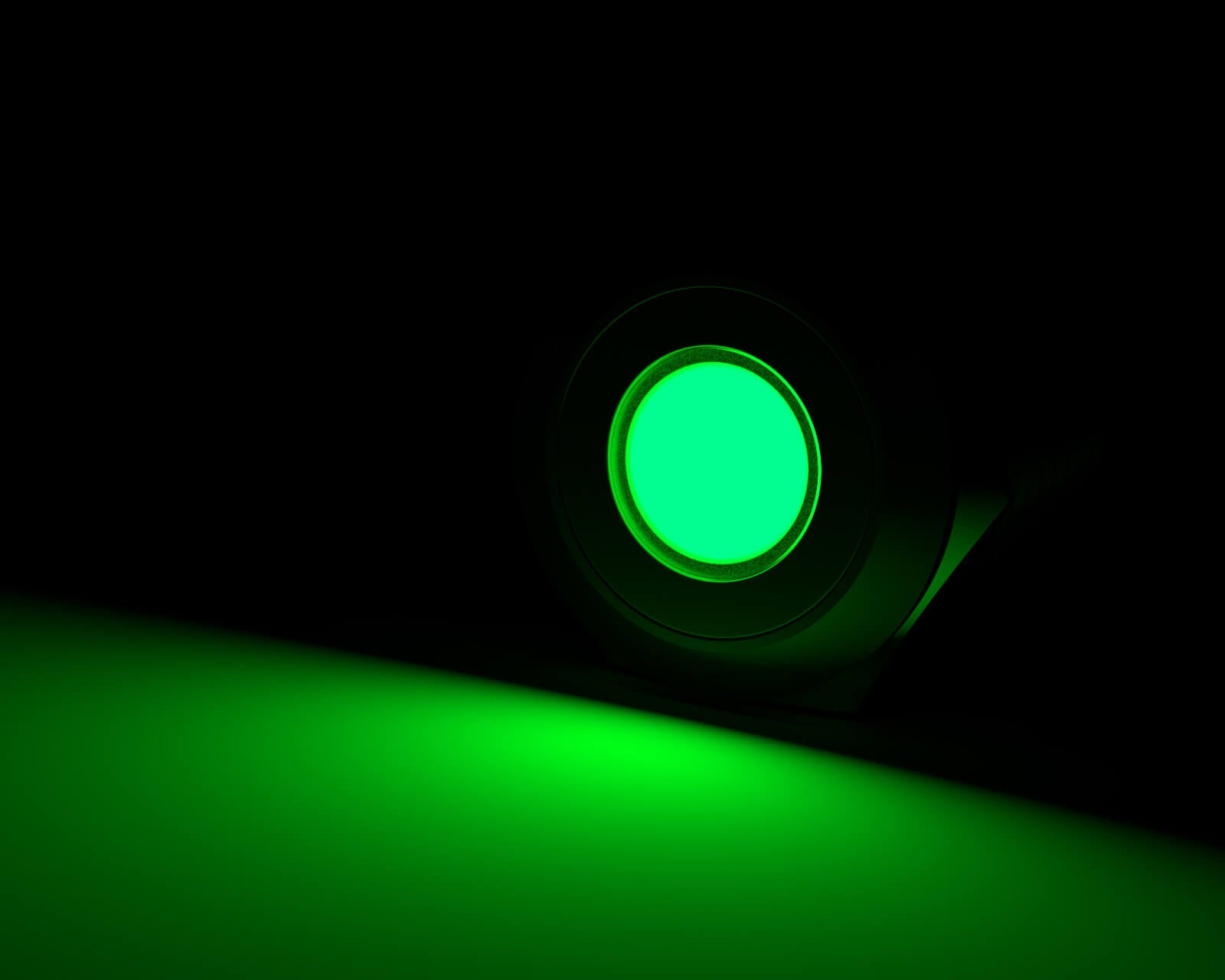

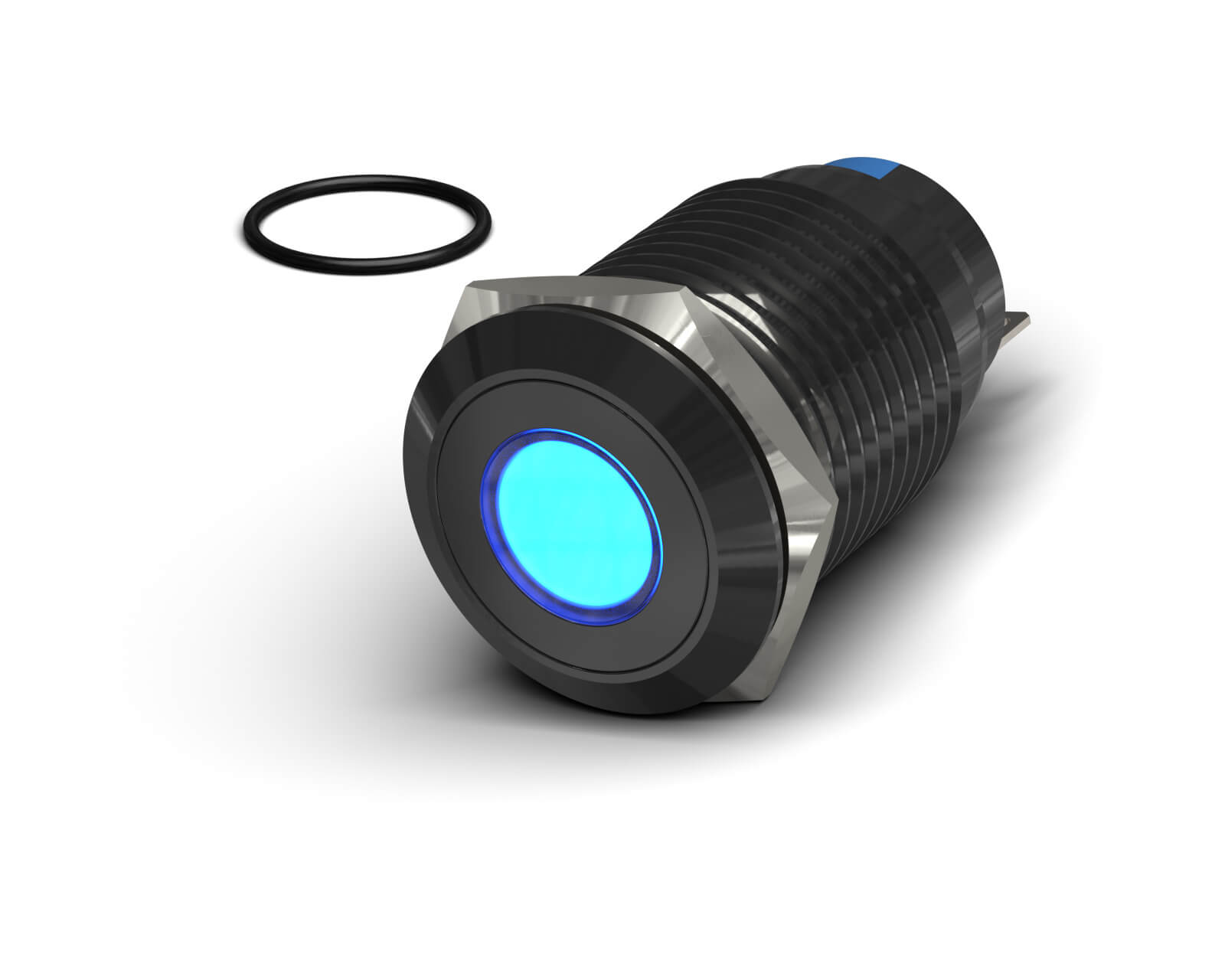

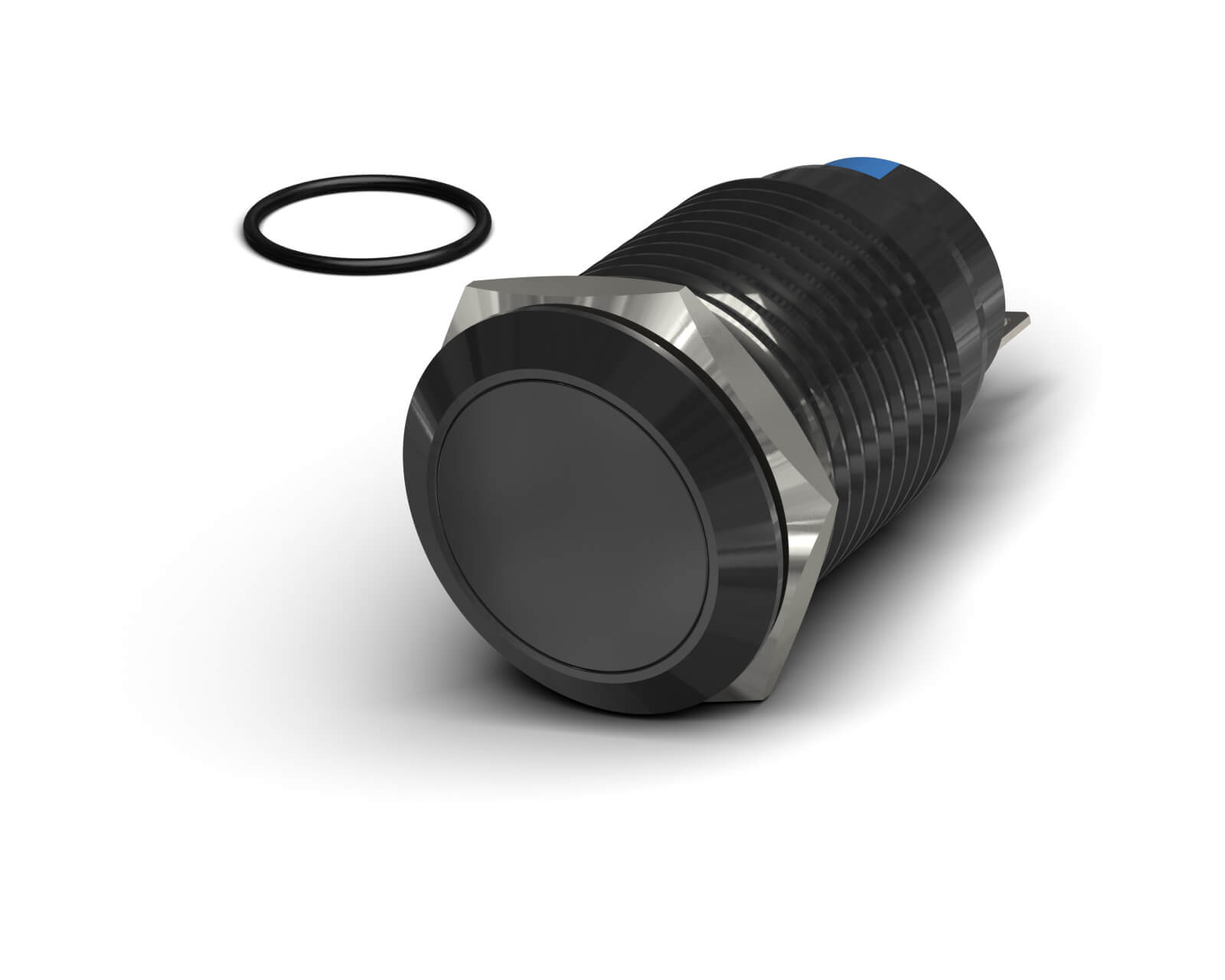

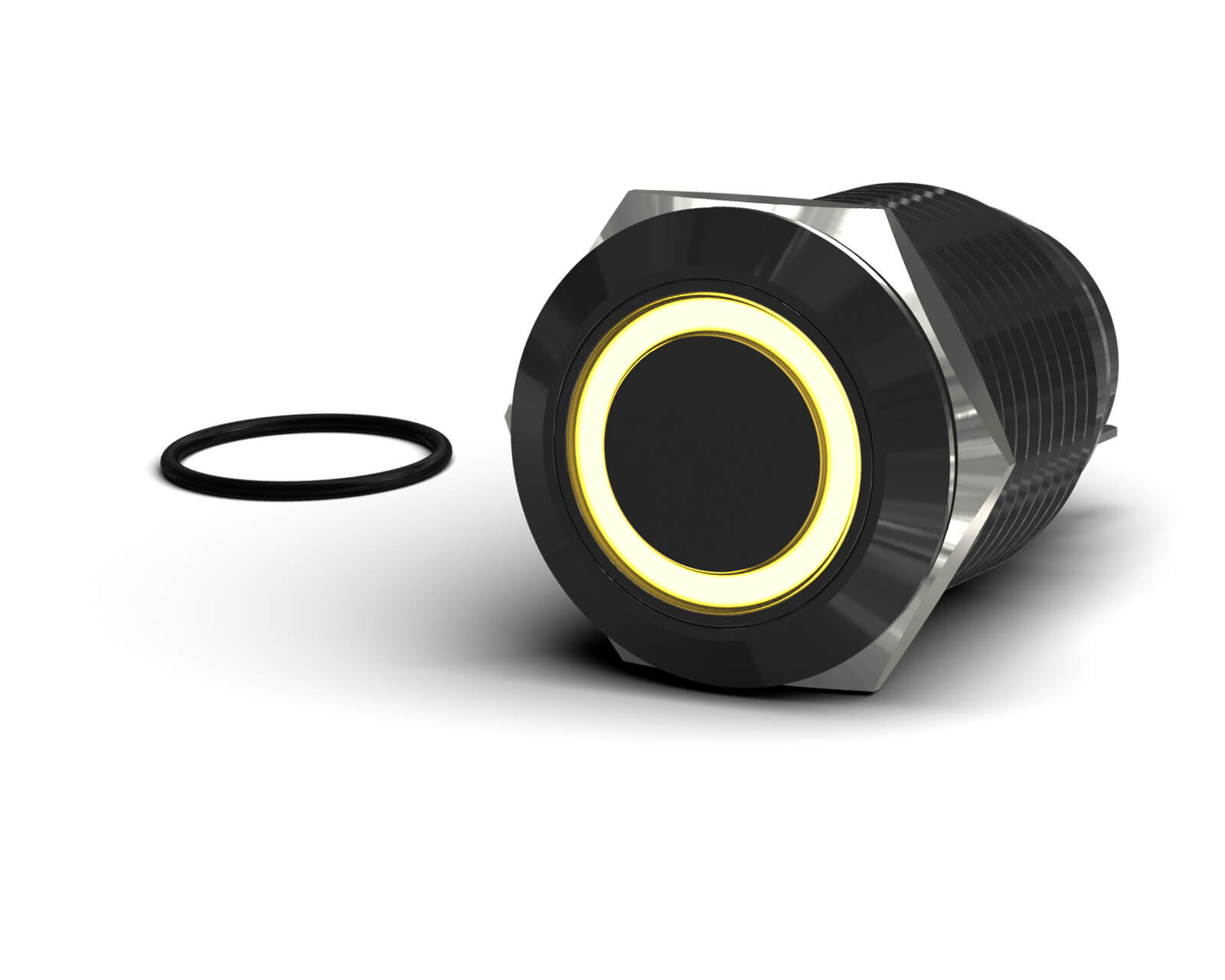

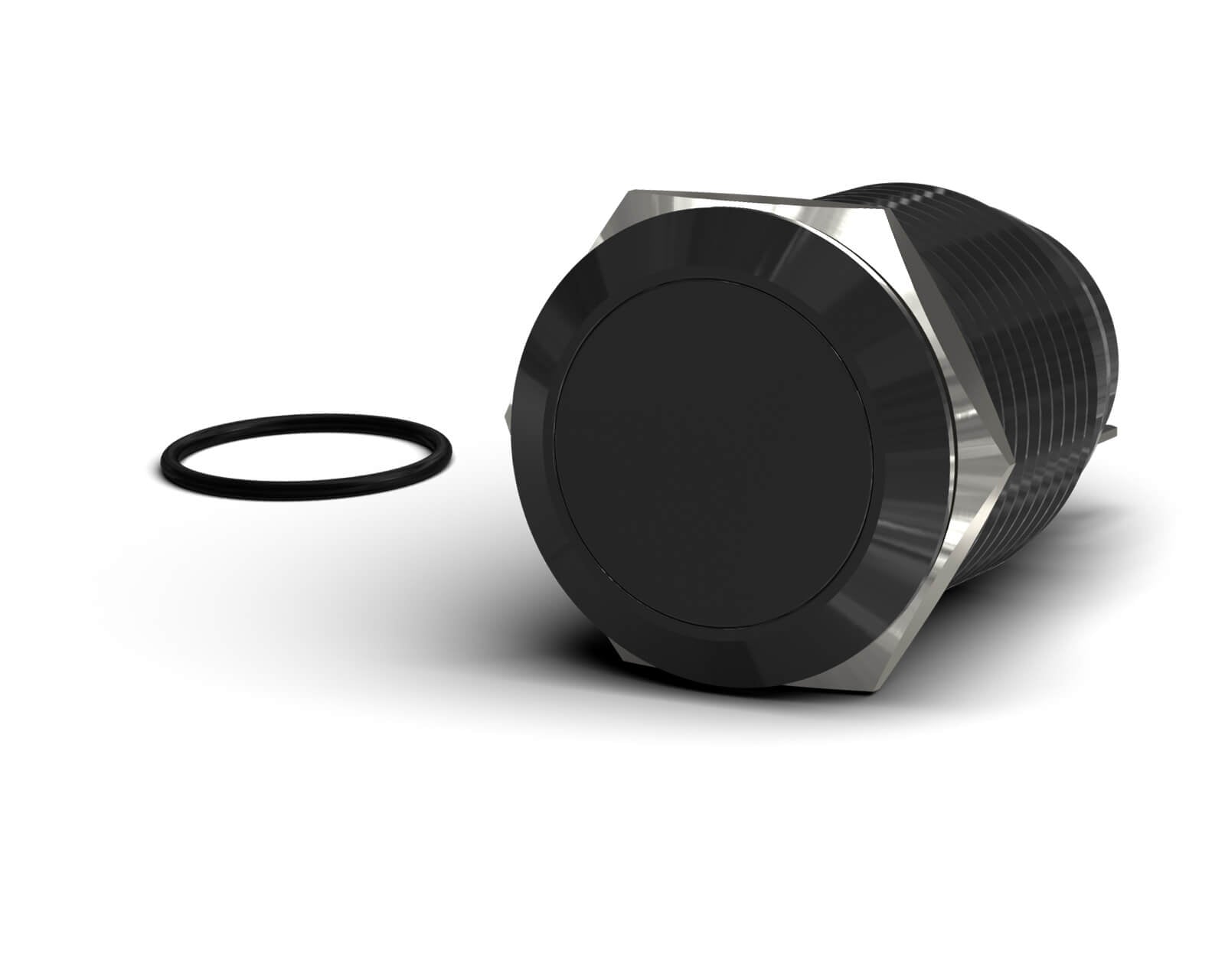

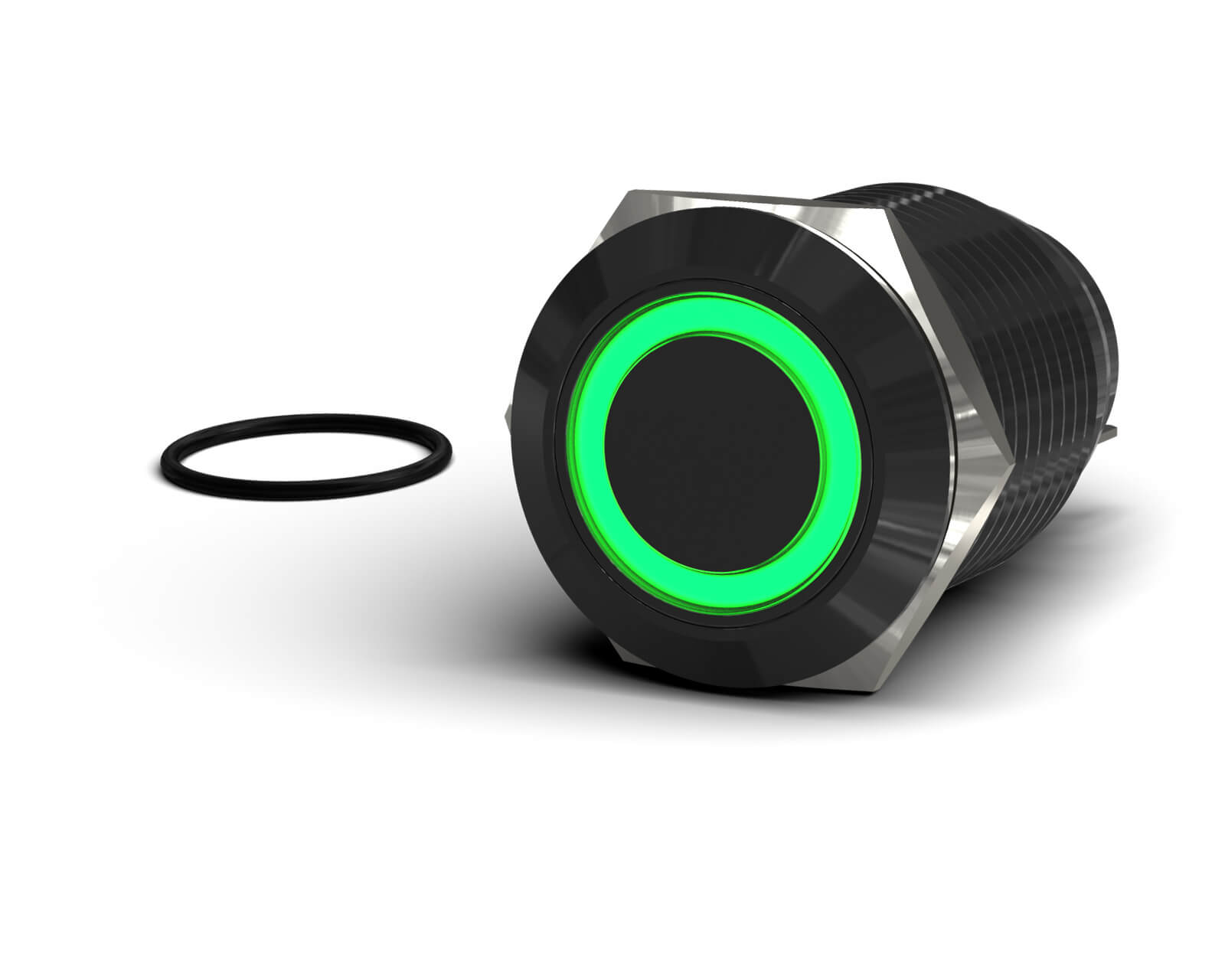

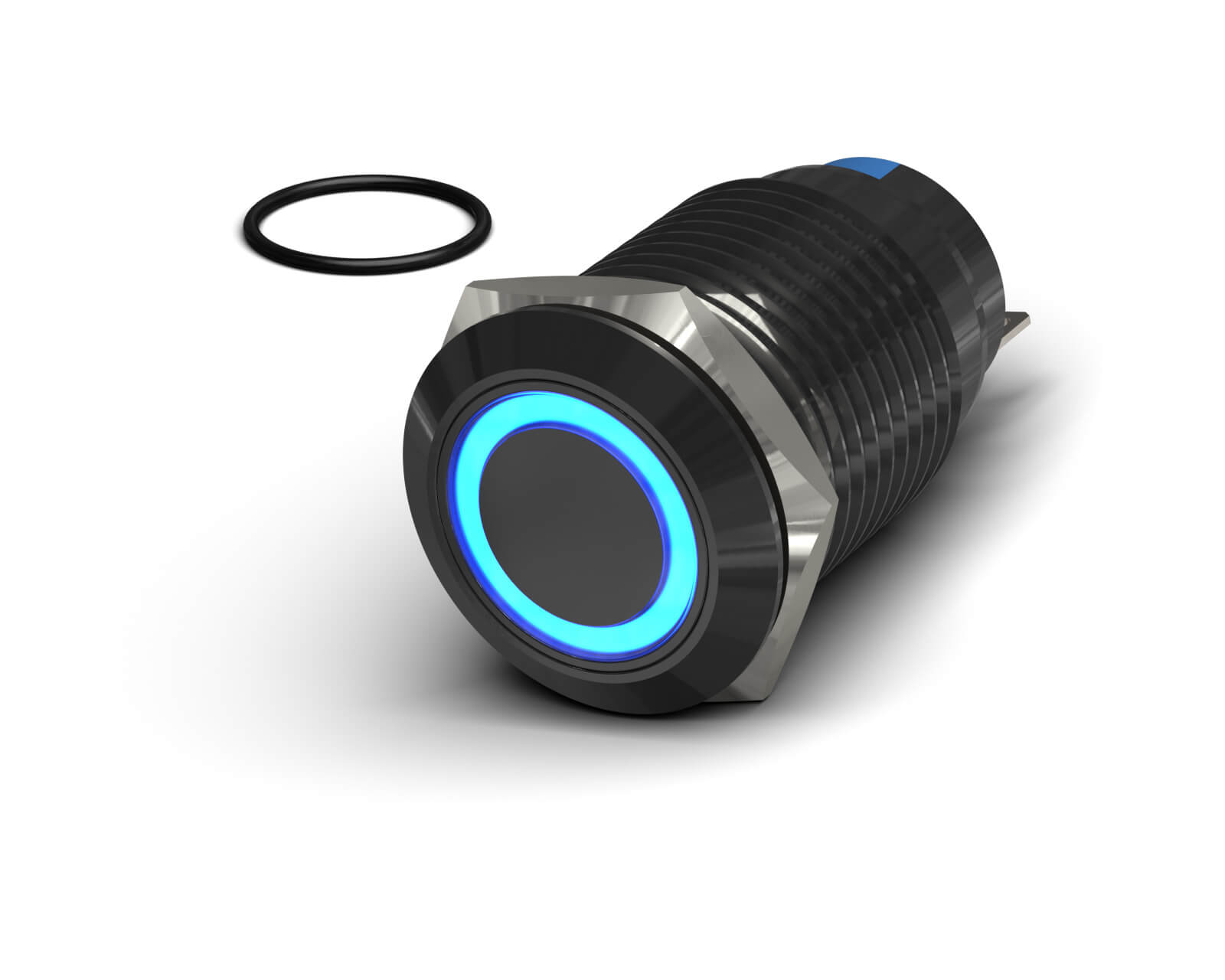

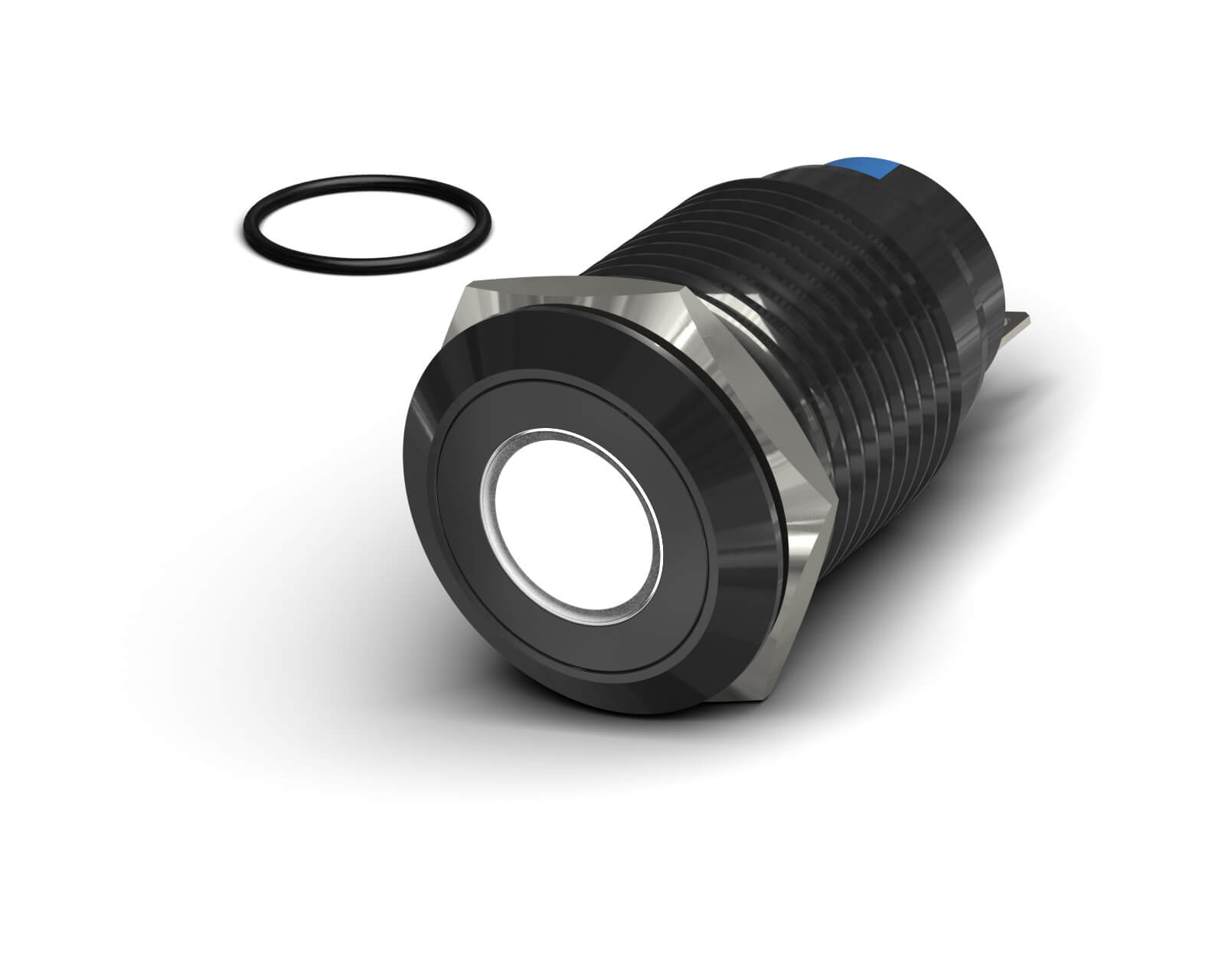

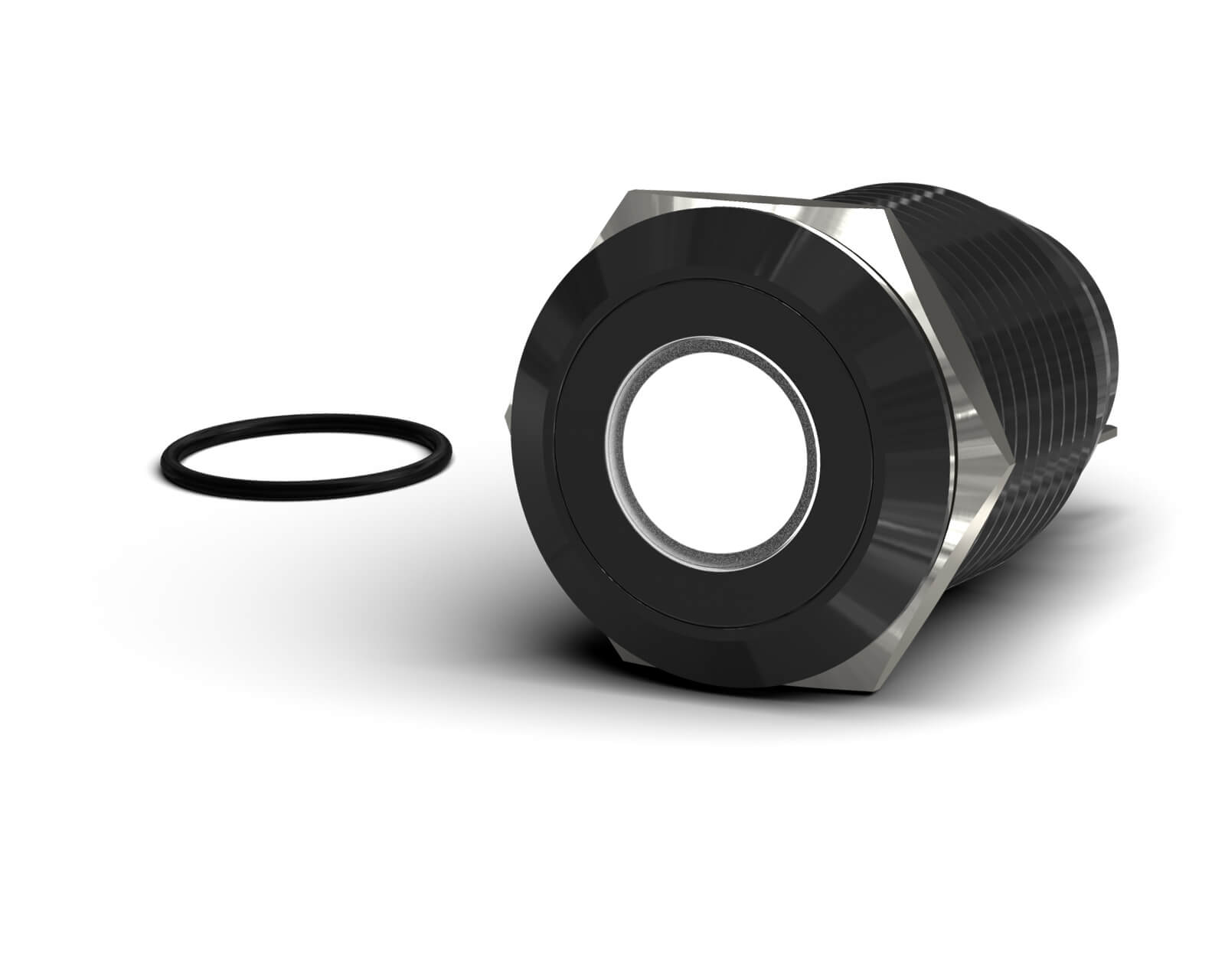

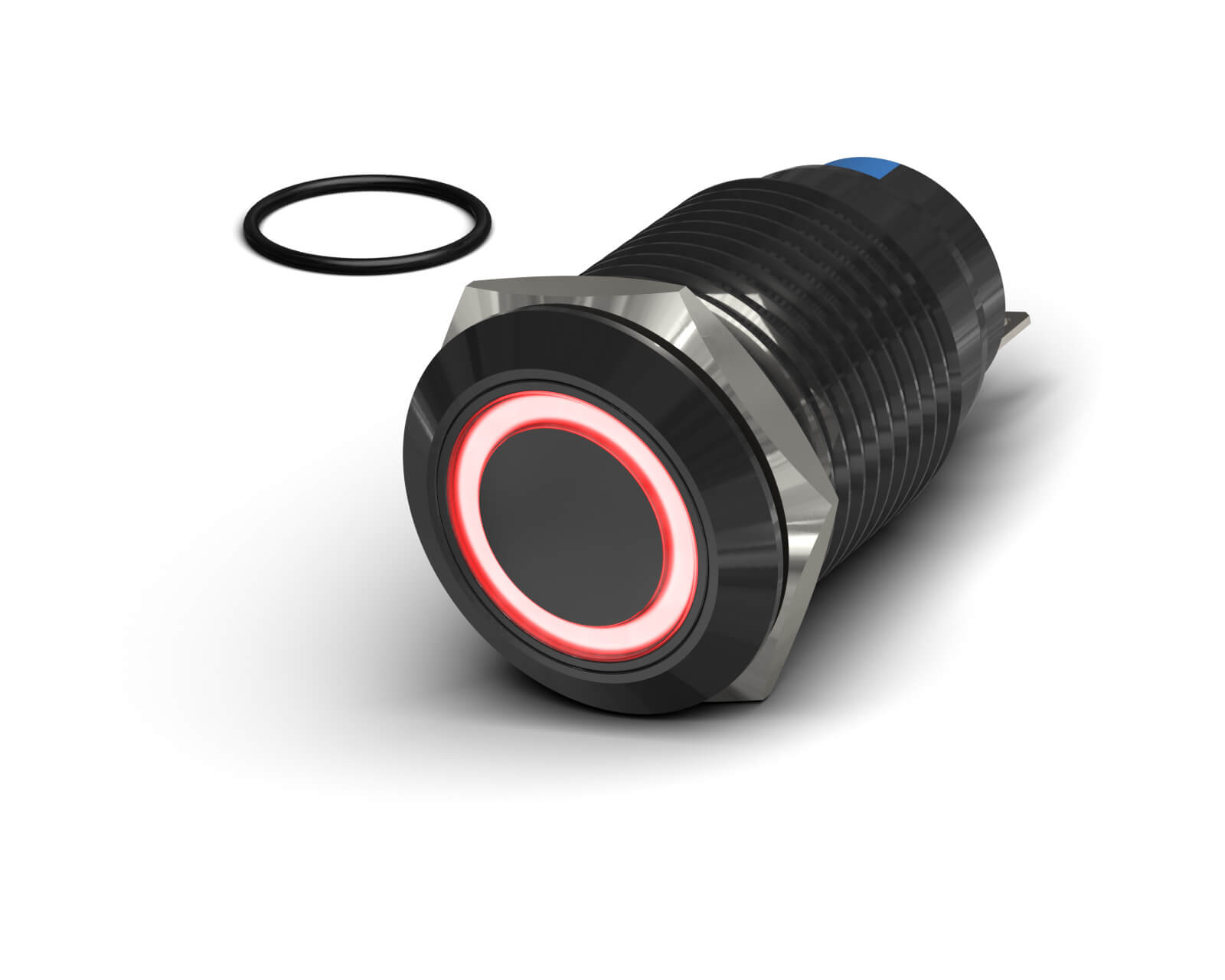

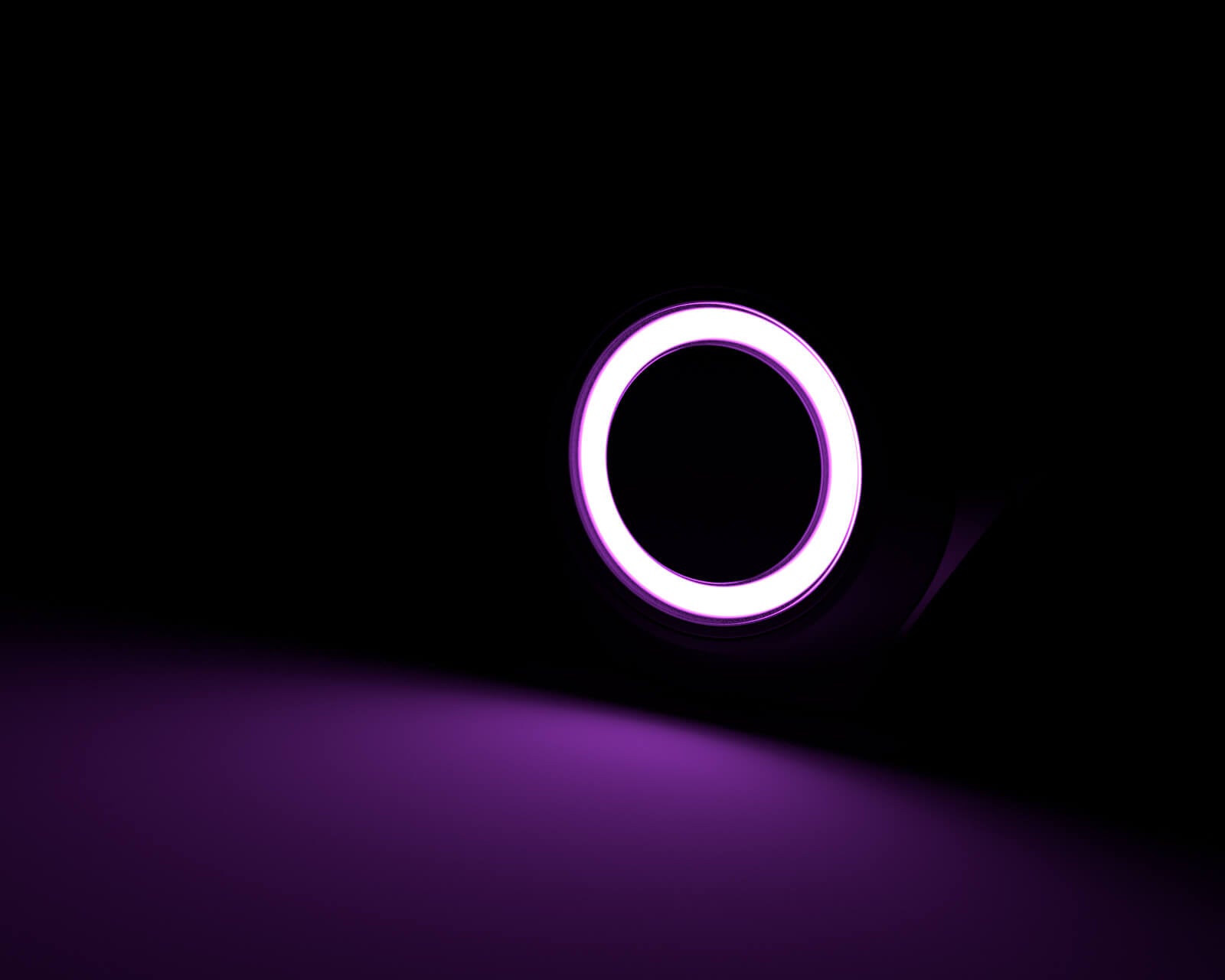

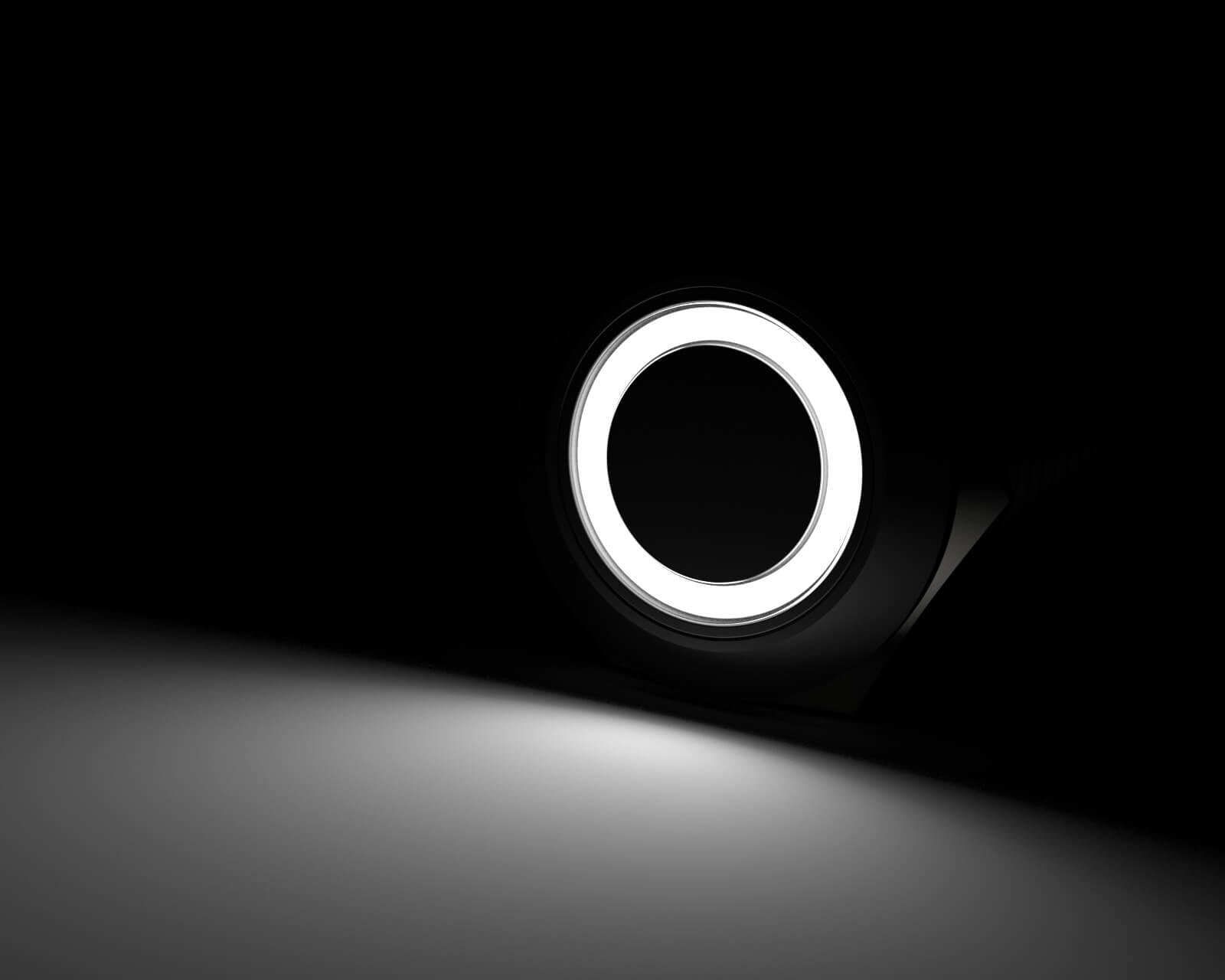

- Available in always on Illuminated (Dot and Ring Style LED) and Non-Illuminated

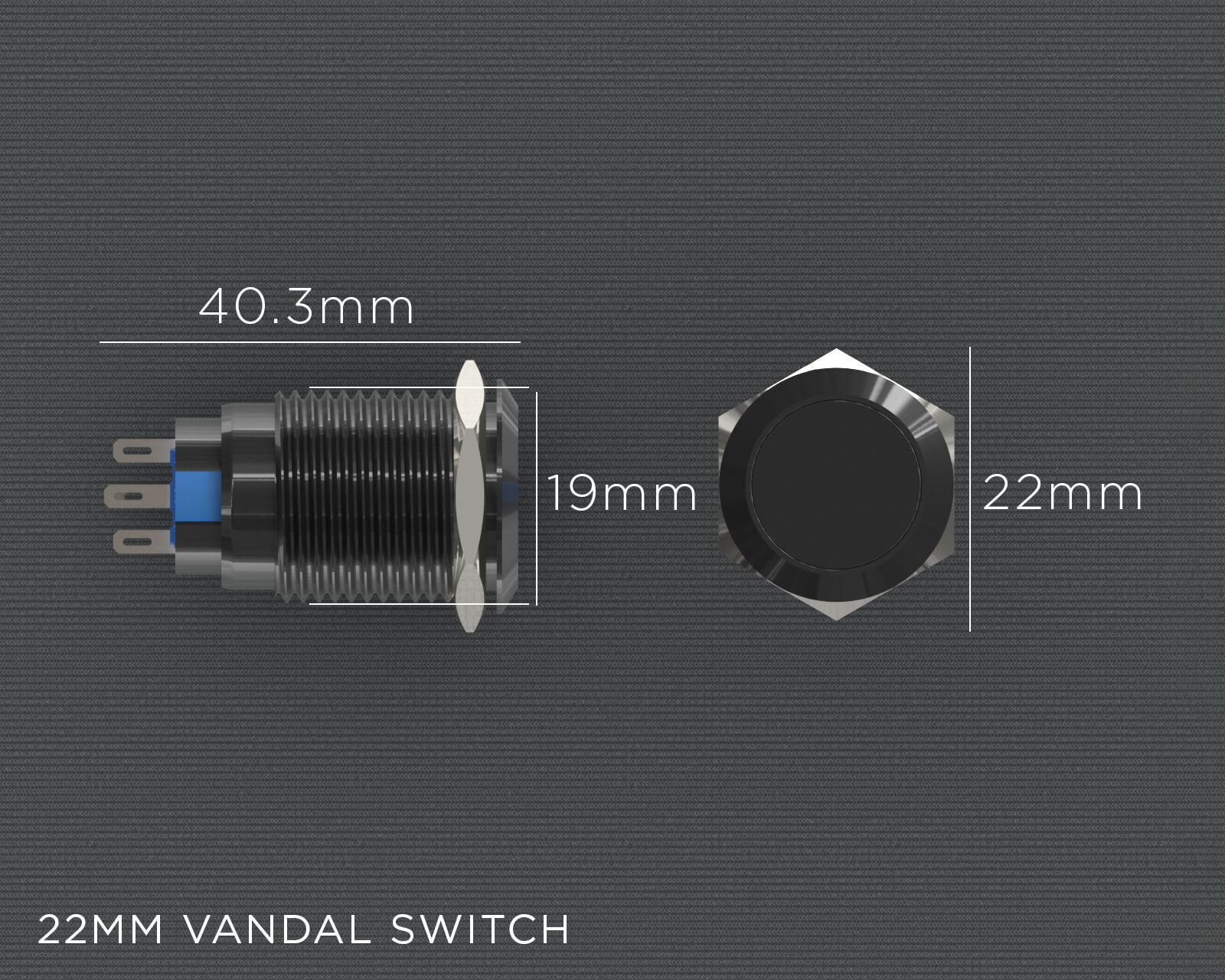

- Size: 22mm diameter
- S.P. Push to Make (Latching)
- Daylight LEDs (in Illuminated version)
- LED Terminals (in Illuminated version)
- Front Panel Mounting
- Switch harnesses with motherboard headers sold separately
Specifications
- Mount Hole: 18.75mm
- Switch Structure: No. 3
- Current: 5 A Maximum
- 24V DC contact rating (for switch, not LED)
- LED Voltage: 3.3V , 5V, 12V
- LED Lifetime: 1,000,000 hours
- Switch Depression Lifetime: 50,000 cycles
- Connection Material: Silver
Parts Included

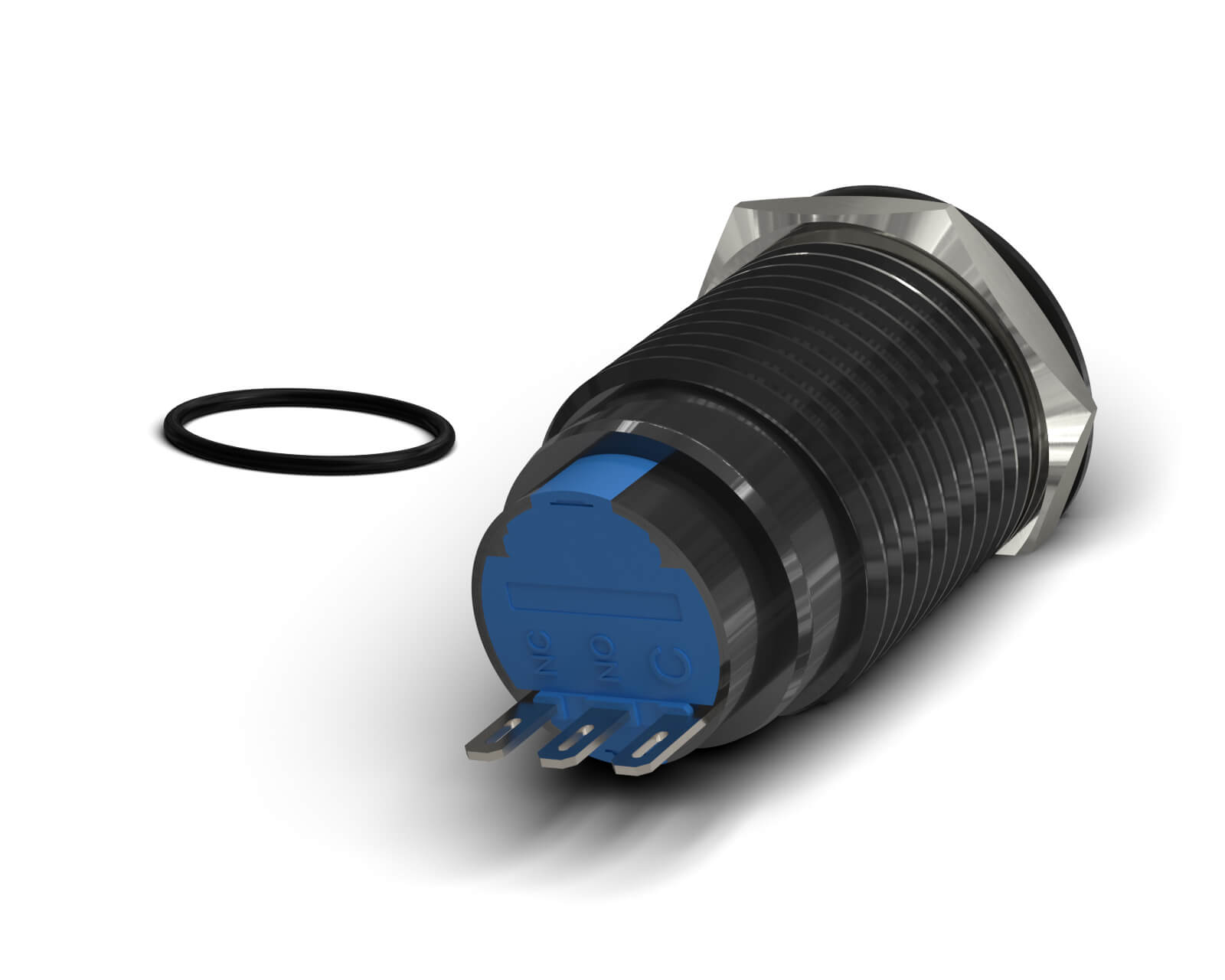

- 1x Vandal switch with oring and mount nut
- 1x Wiring diagram
Warnings
*Please be very careful with the power you apply to the LED - Returns will not be accepted of switches that have a burnt out LED. Max Voltage is 12V!Not responsible for any hardware damage. Use at your own risk.
Installation

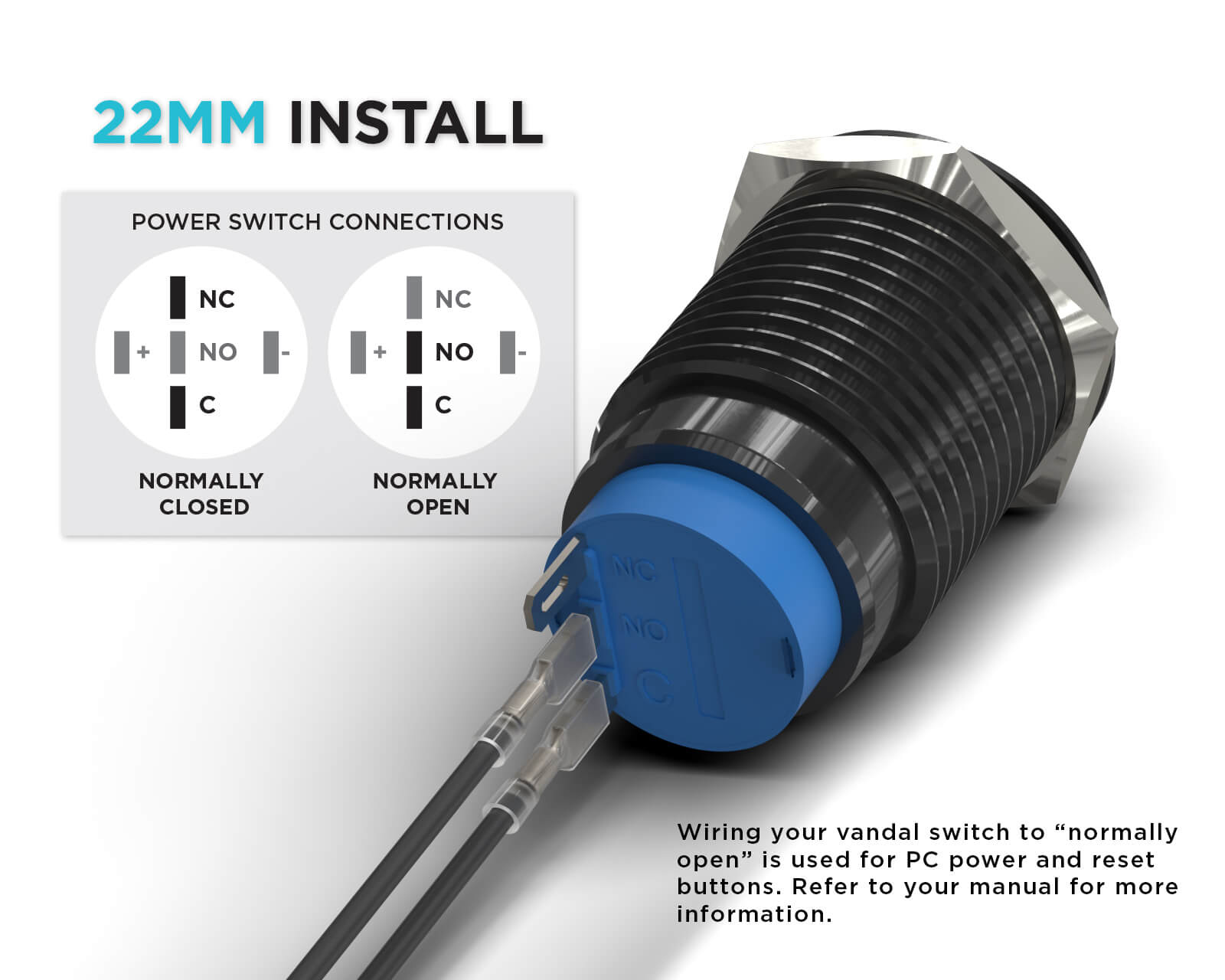

Wiring Diagram
