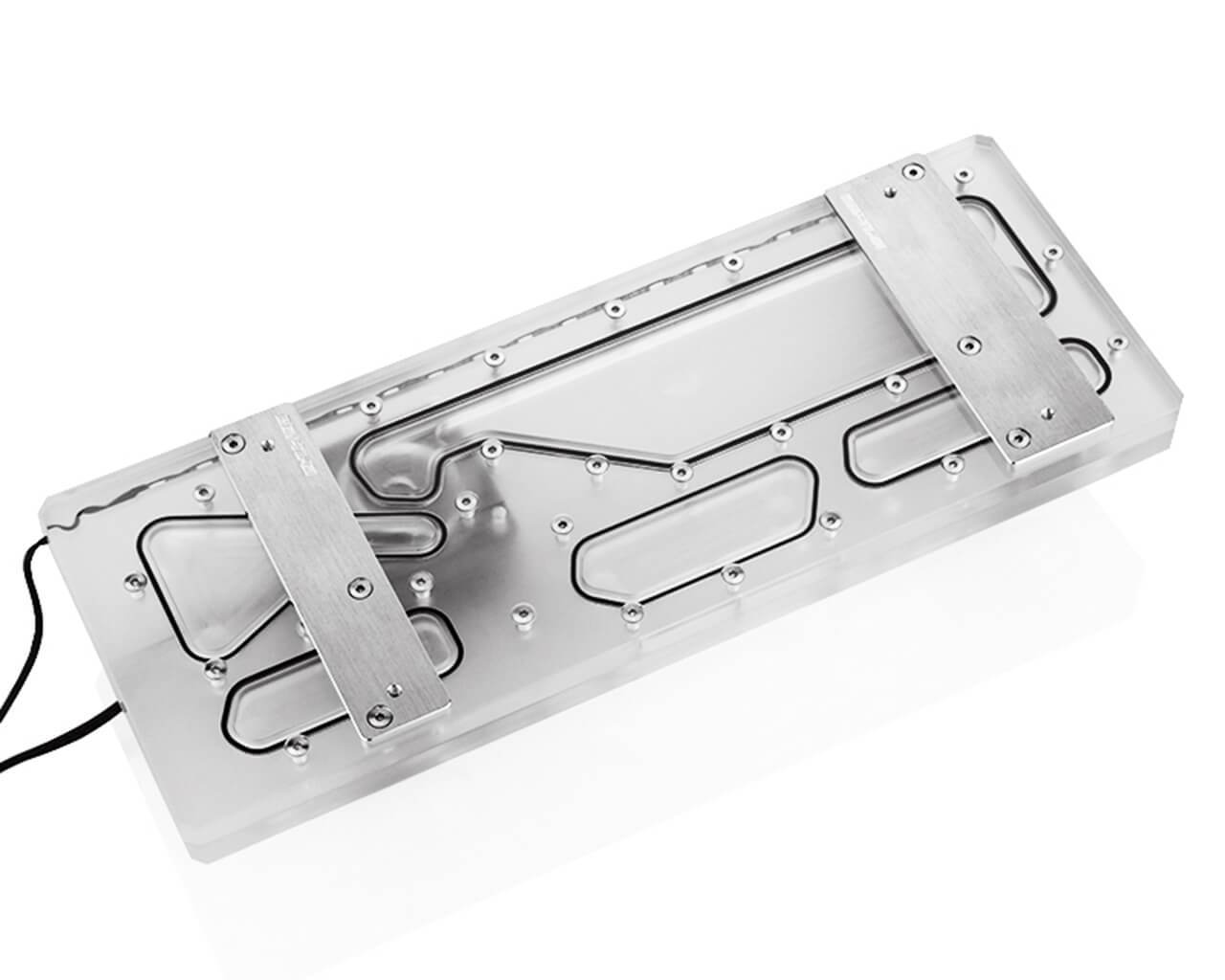

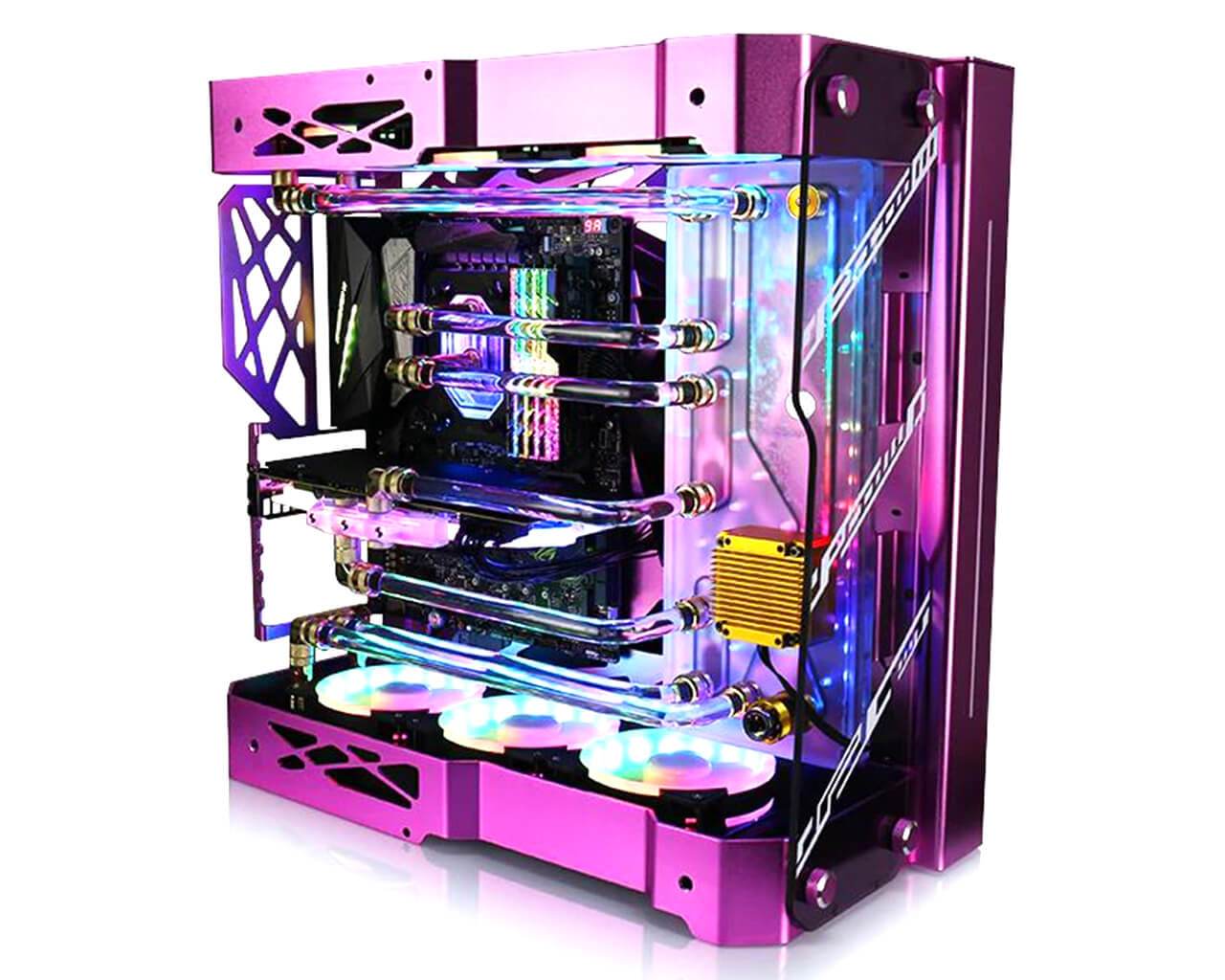

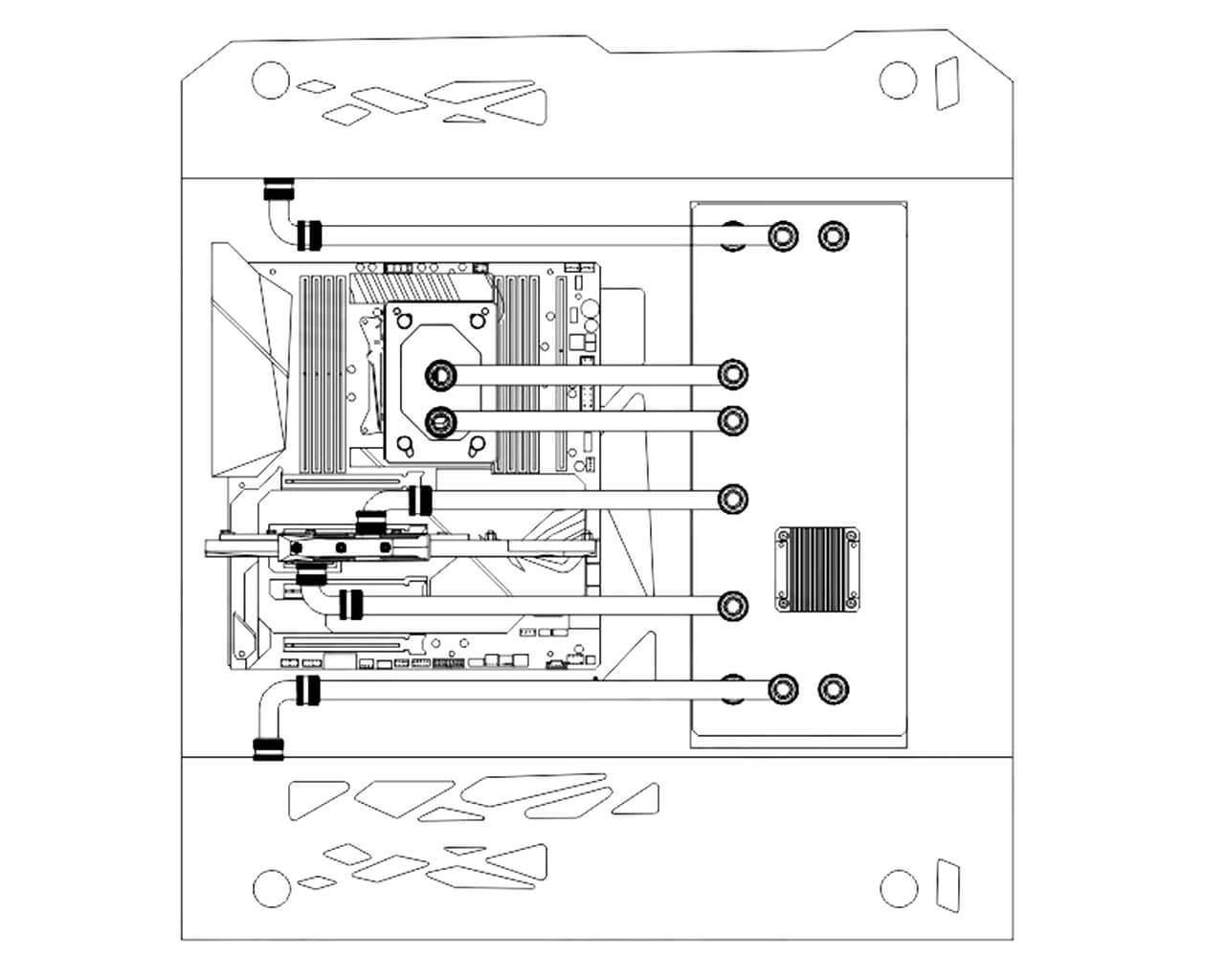

Bykski Distro or distribution plates are a unique way to outfit your cooling loop. These are designed case specific to fit perfectly to create amazing cooling loops and a stunning visual look. Ports are lined up for perfect lines to each cooling device.

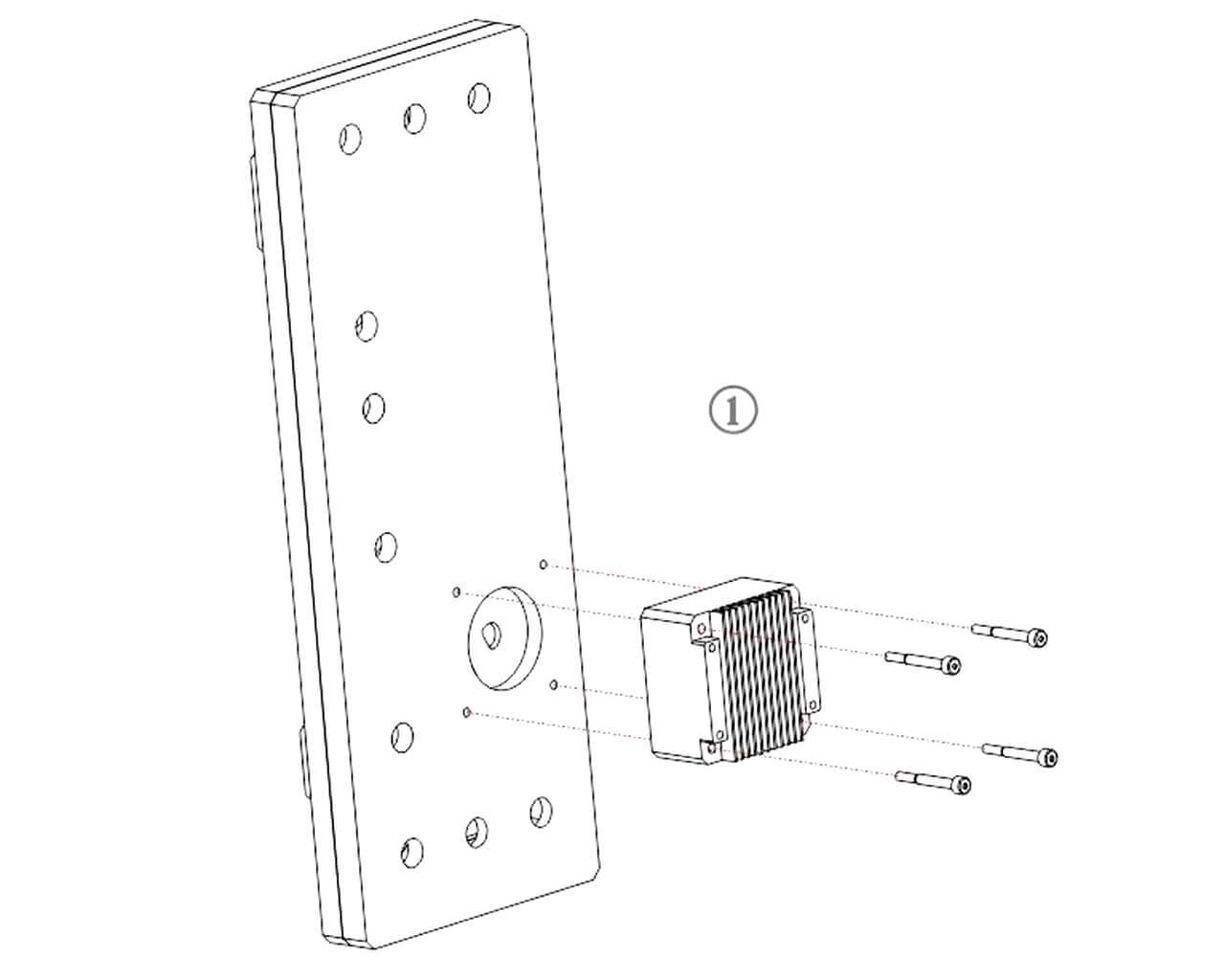

The Distro plate is engineered to be used with an inline pump (included) allowing you to power your entire loop right from your loop center piece.

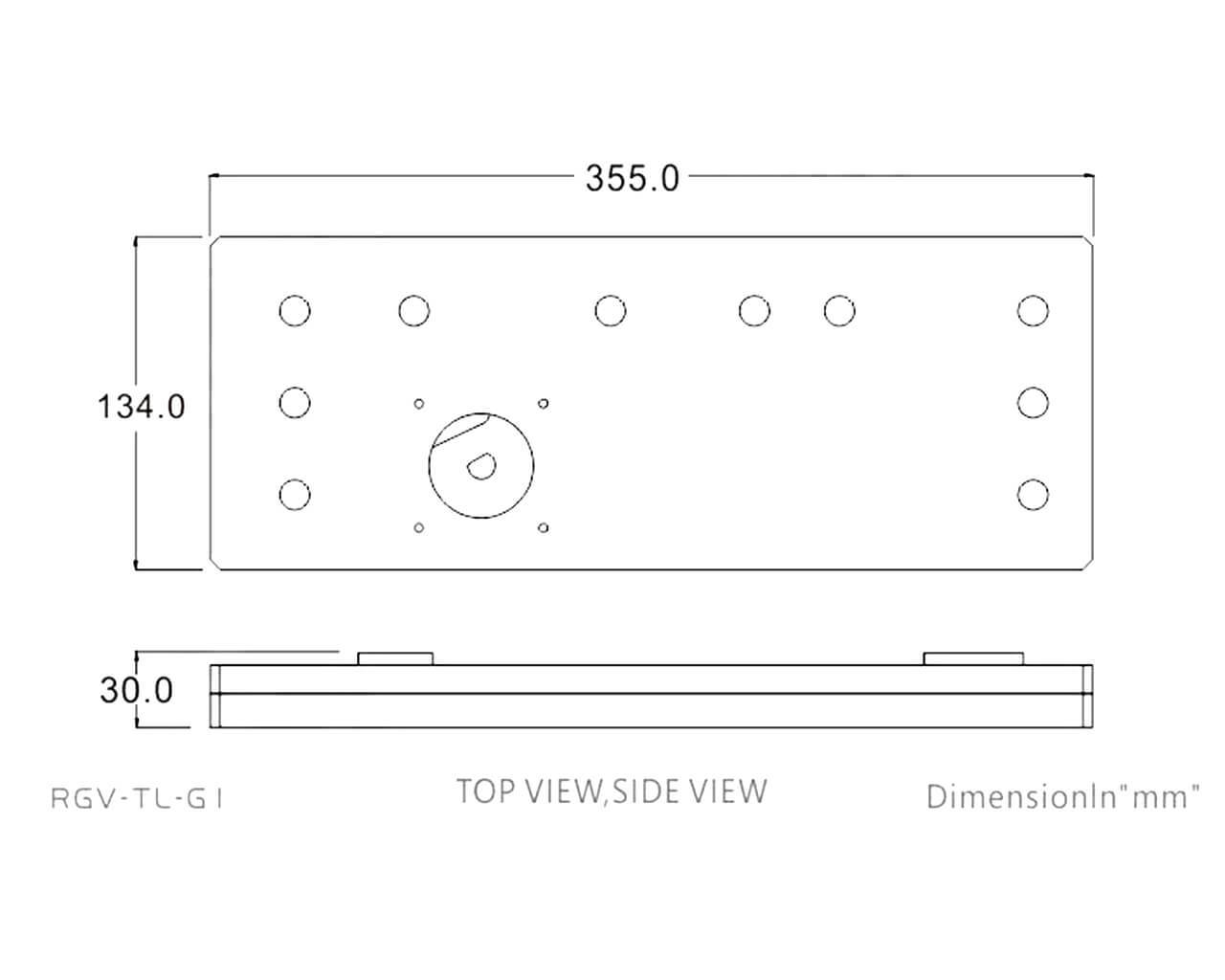

Specifications - Distro Plate

Material:PMMA

Thread:G 1/4

Specifications - DDC

Heatsink Material:Aluminum

Power:Standard 4 pin power connector and a PWM 4-Pin header

Voltage Range:10V - 15V DC

MTBF (Mean Time Between Failure):50,000 hours equivalent to 5 years lifetime

Maximum discharge:~ 132 GPH (600 LPH)

Max RPM:5000

Dimensions:62 x 62 x 58mm

Performance will vary based on cooling loop dynamic

Compatibility

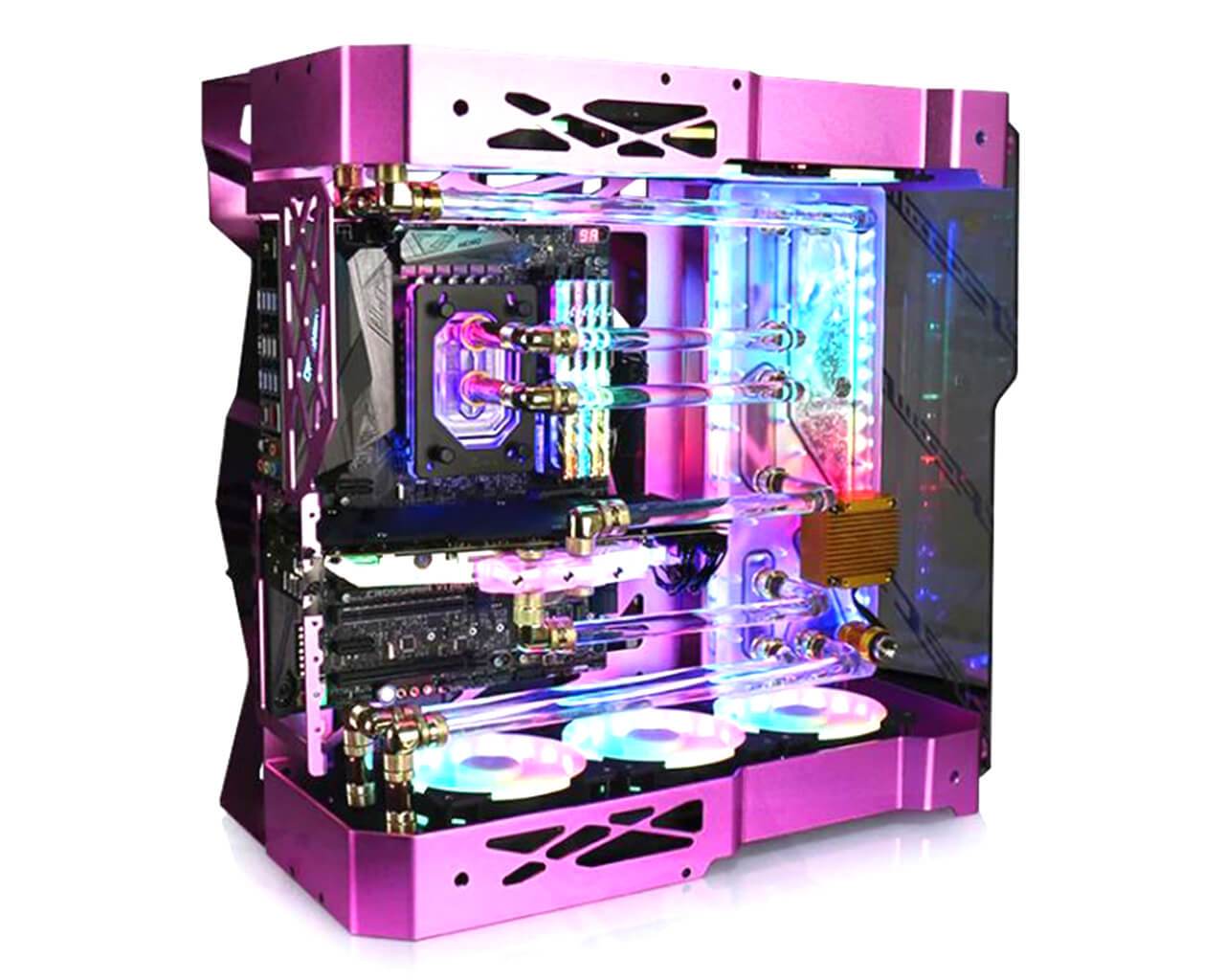

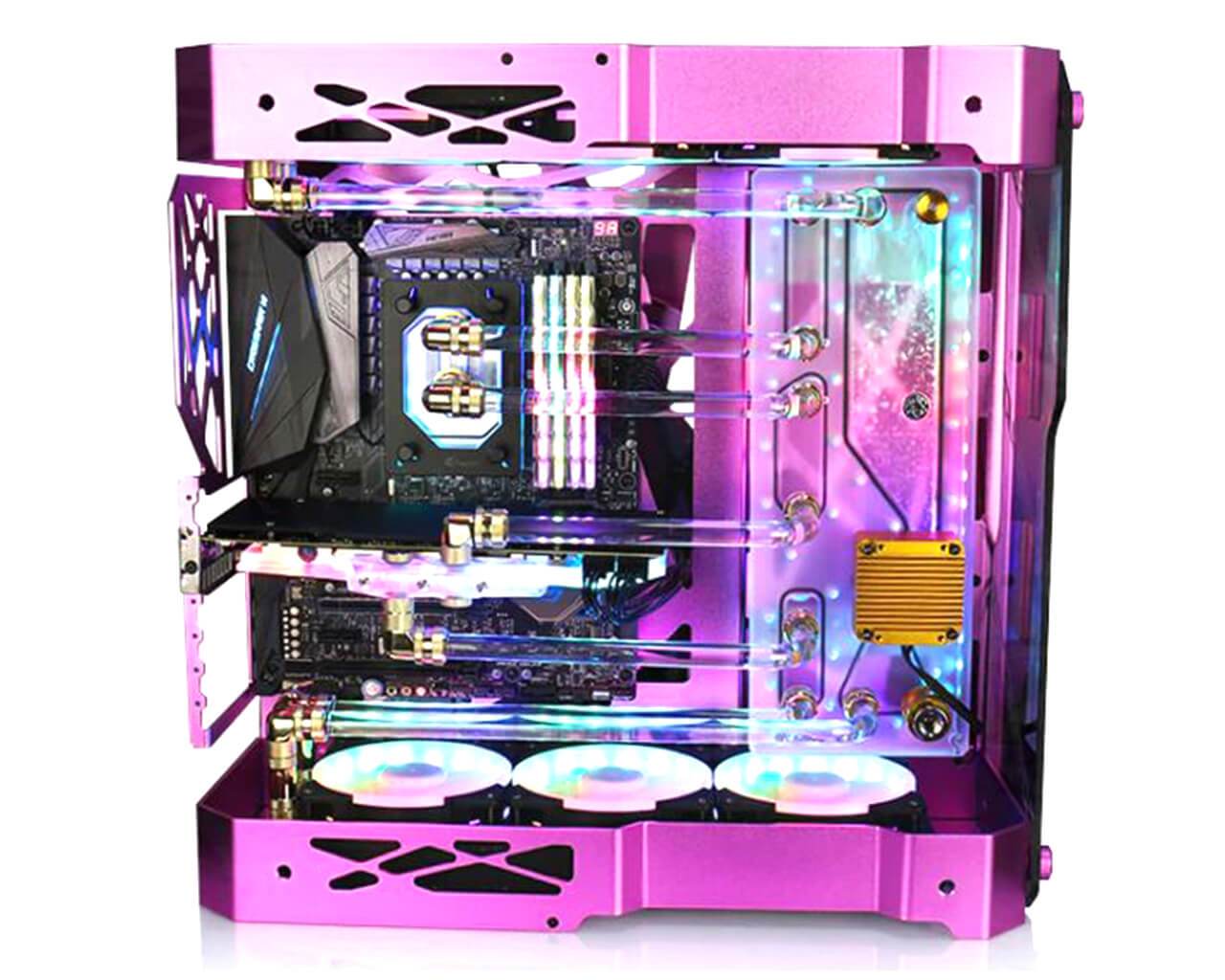

Case Type:"Tiny Whale G1"(specific)

Loop:Aluminum or Non-Aluminum

Radiator:Designed for 30mm thick or less

Included Parts

1x Distro plate

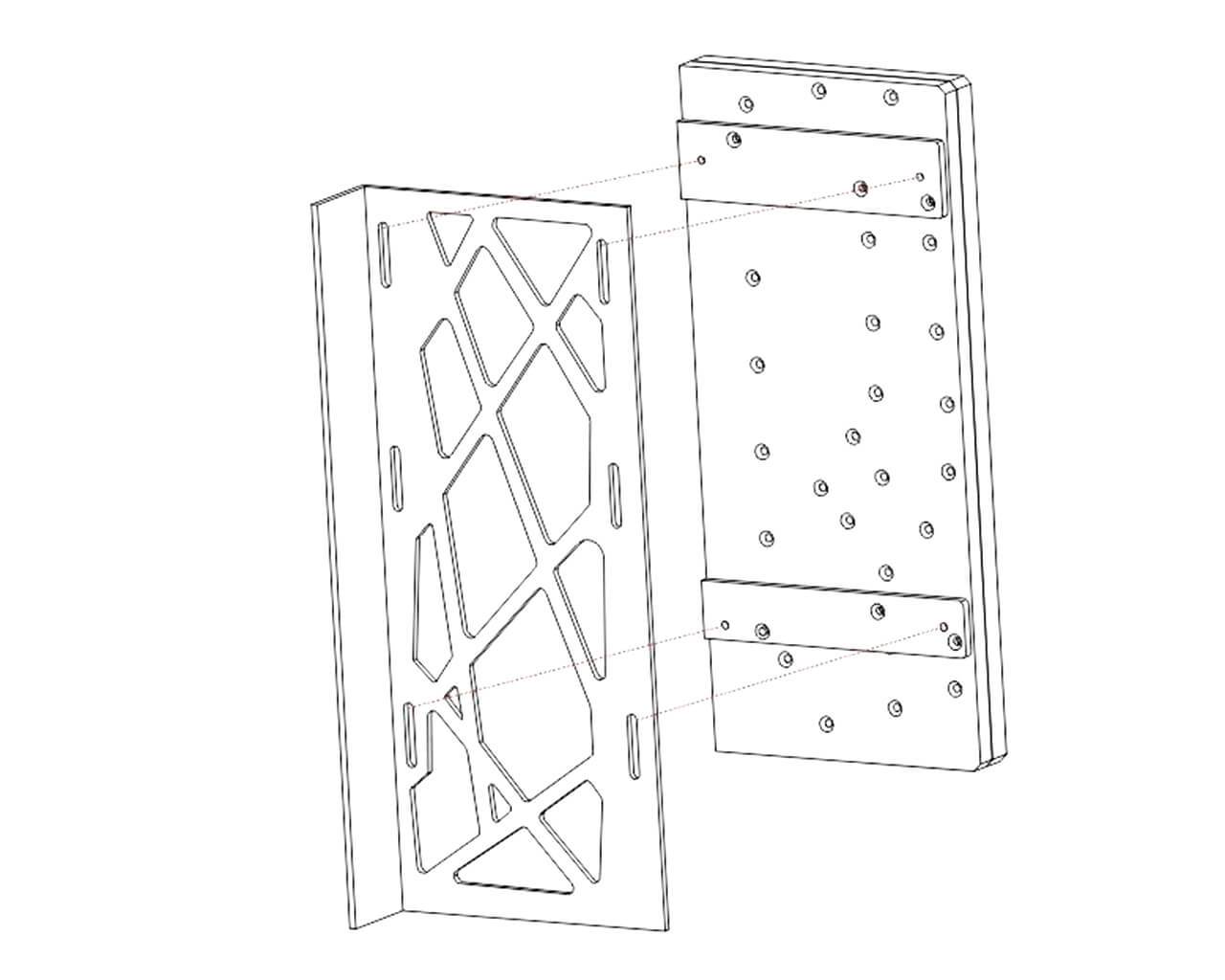

Mounting Hardware

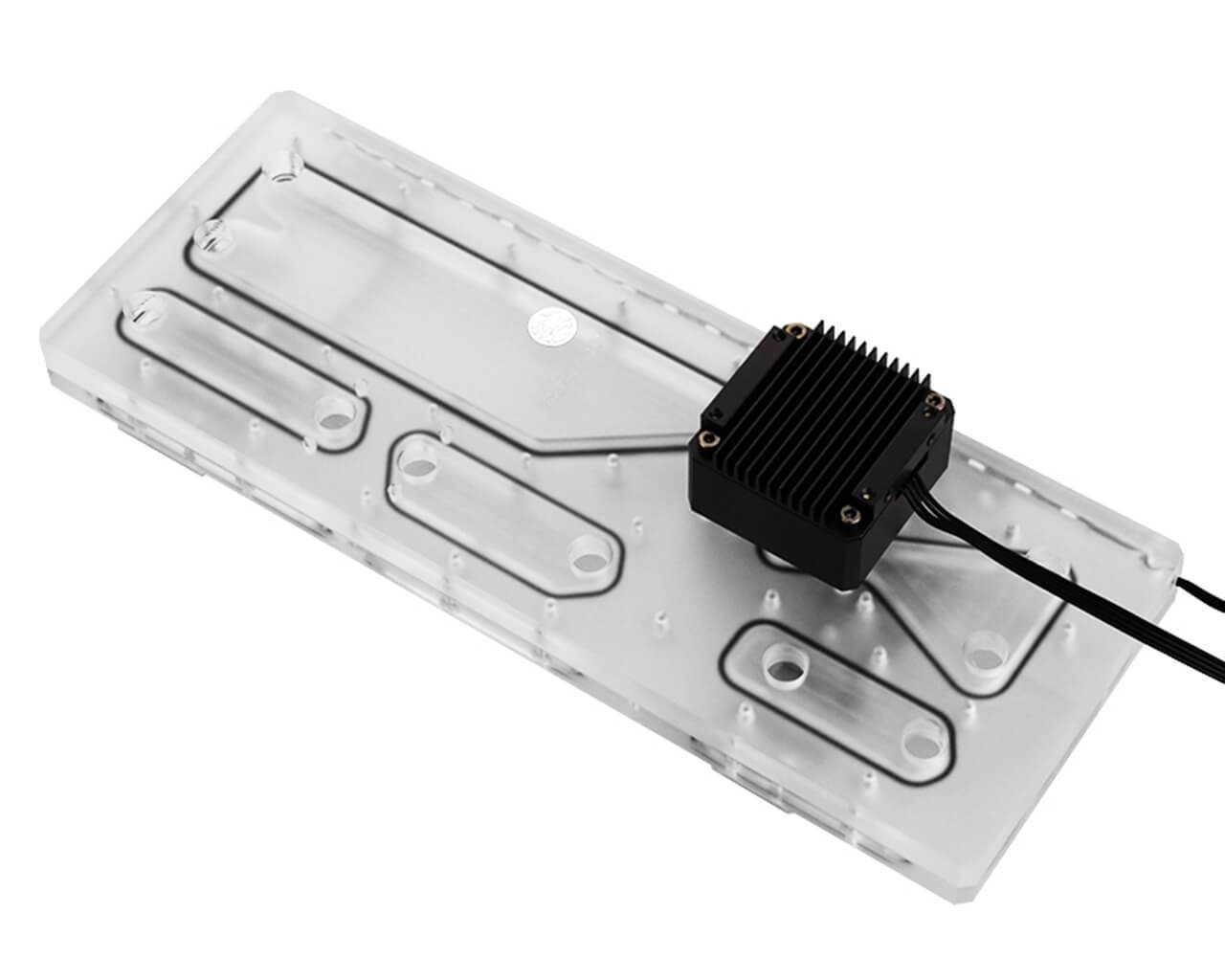

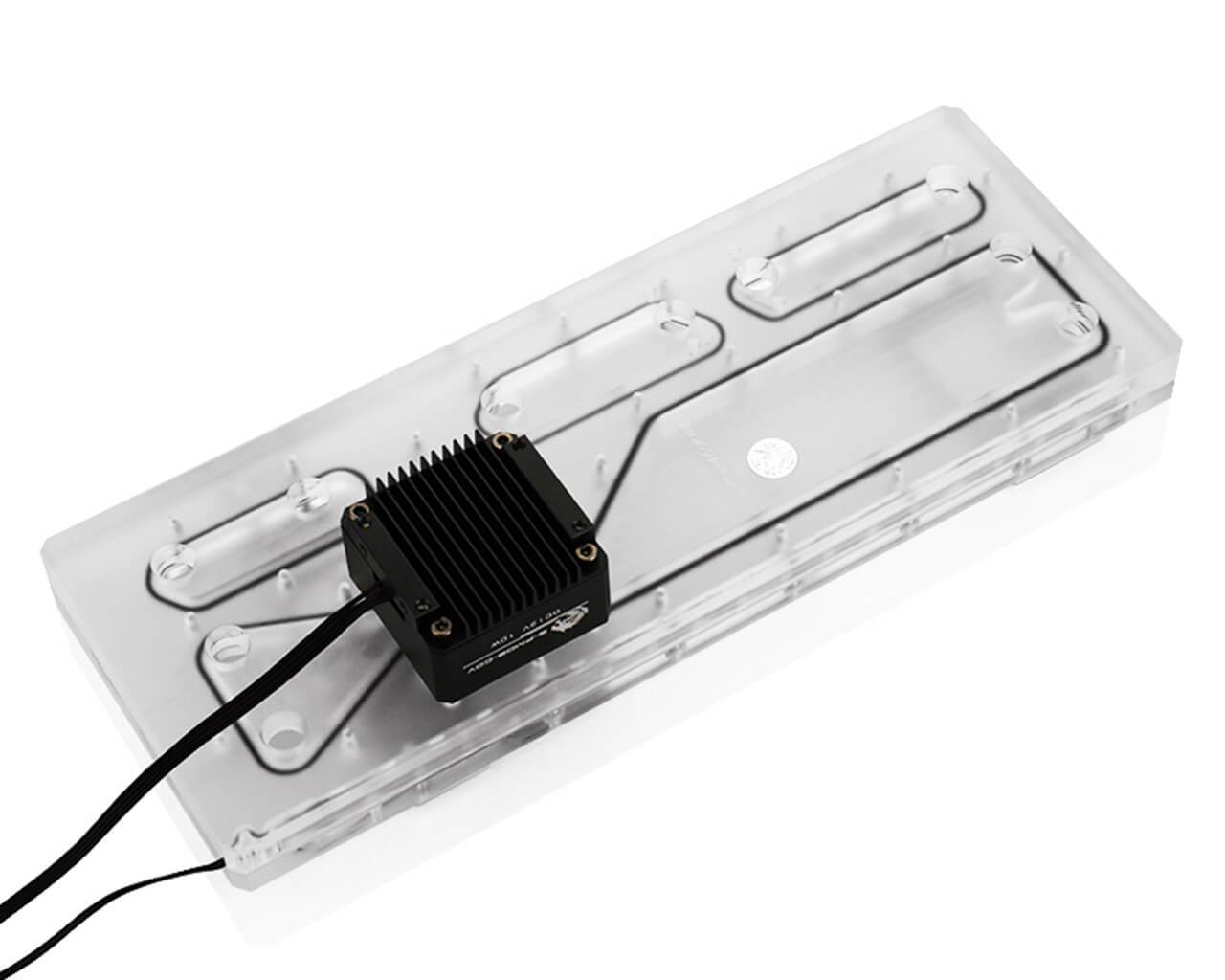

DDC Pump w/ Heatsink (Black Color)

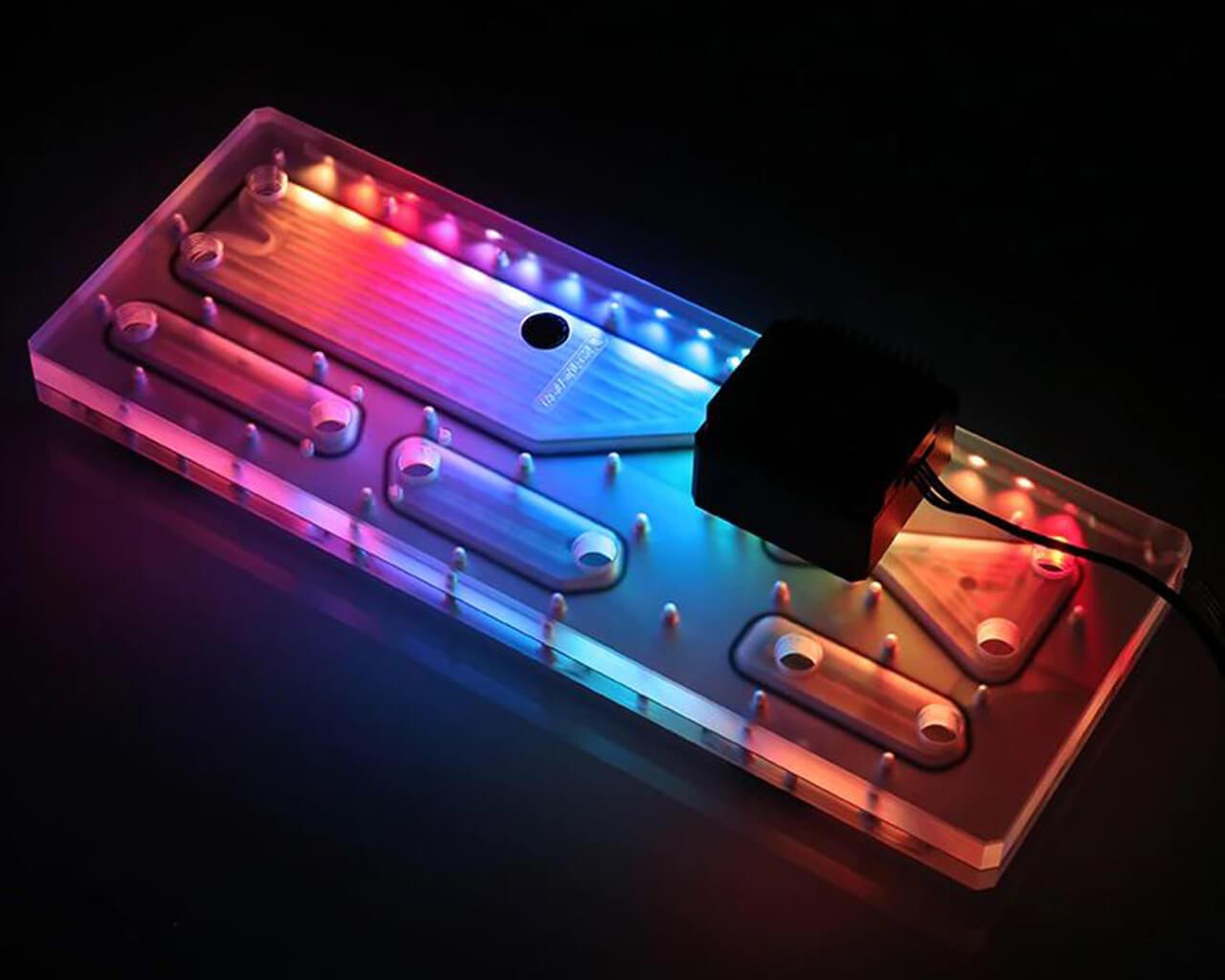

A-RGB (RBW) LED Strip

Warnings
This block is designed specifically for this case. Using other motherboards, blocks, and layouts is always possible but may not appear as pictured depending on component port locations. Not responsible for any hardware damage. Use at your own risk.
