This full coverage block directly cools the video card core (GPU), graphics memory (RAM), and voltage regulator modules (VRM). By directly cooling these components, you can achieve great temperatures and reach higher overclocks or extend the overall lifespan of your card by running at below-factory temperatures.

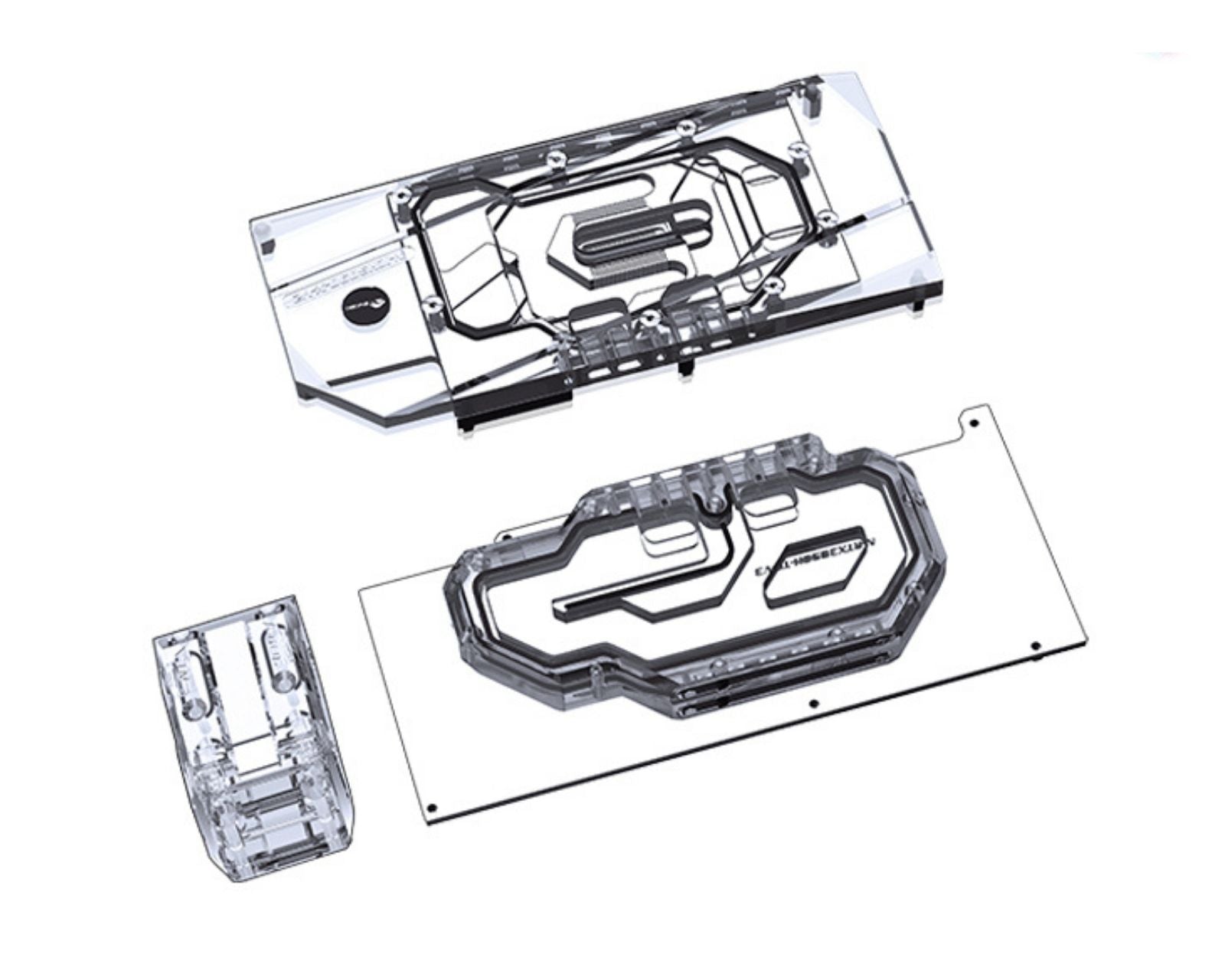

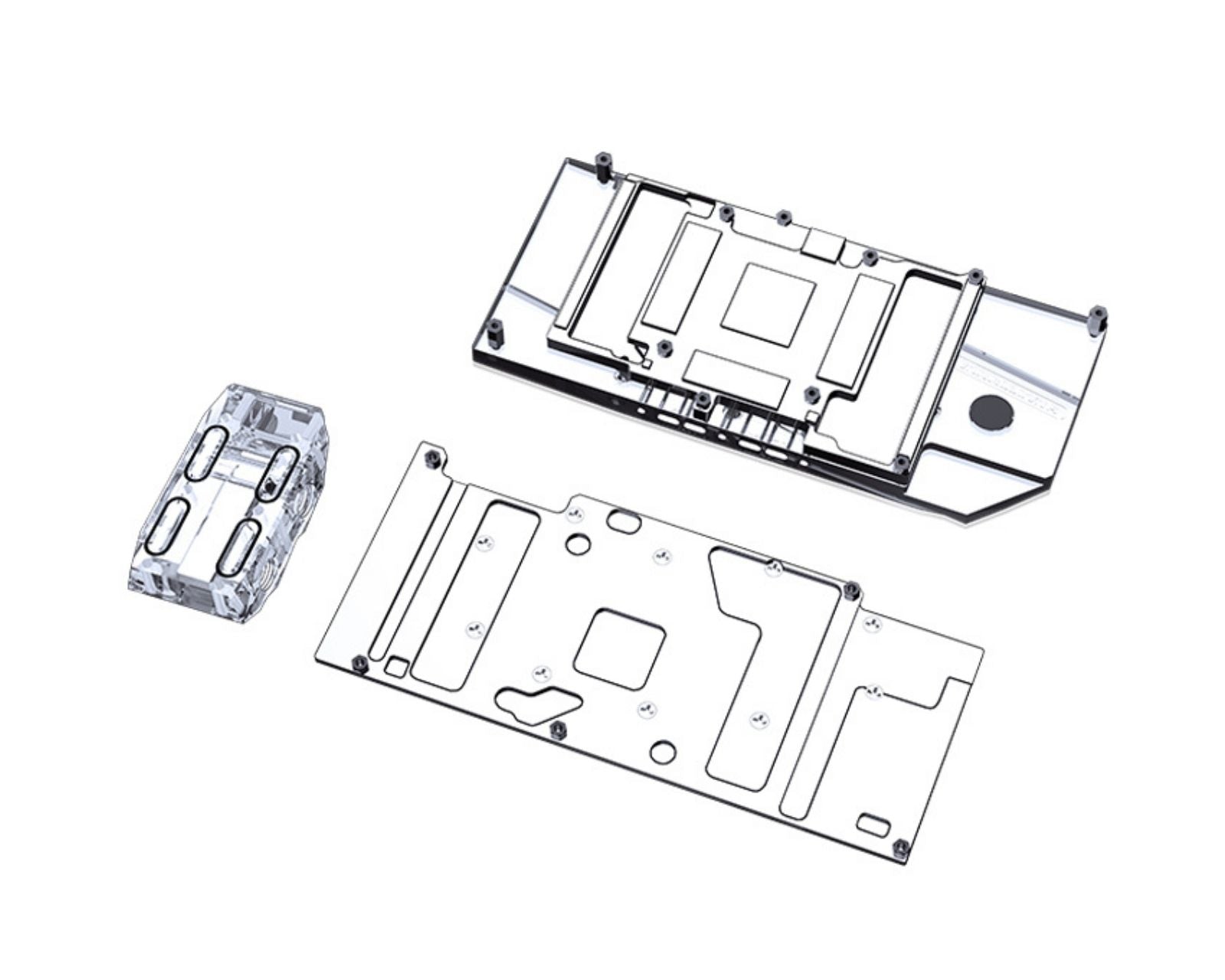

The block is constructed of high-purity copper that is nickel electroplated to prevent oxidation. A high-flow design is used to allow multiple blocks to run in series. Top and bottom ports can be used to configure parallel or serial designs in multi-block setups.

Compatibility

Compatible with

• INNO3D GeForce RTX 3080 Ice Dragon Super Edition
• INNO3D GeForce RTX 3080 GAMING X3
• INNO3D GeForce RTX 3080 TWIN X2
• INNO3D GeForce RTX 3080 iCHILL X4
• INNO3D GeForce RTX 3080TI Ice Dragon Super Edition
• INNO3D GeForce RTX 3080TI GAMING X3
• INNO3D GeForce RTX 3090 Ice Dragon Super Edition
• INNO3D GeForce RTX 3090 GAMING X3
• INNO3D GeForce RTX 3090 iCHILL X4
• AX GeForce RTX 3080TI X3W
• AX GeForce RTX 3080
• AX GeForce RTX 3090 X3W

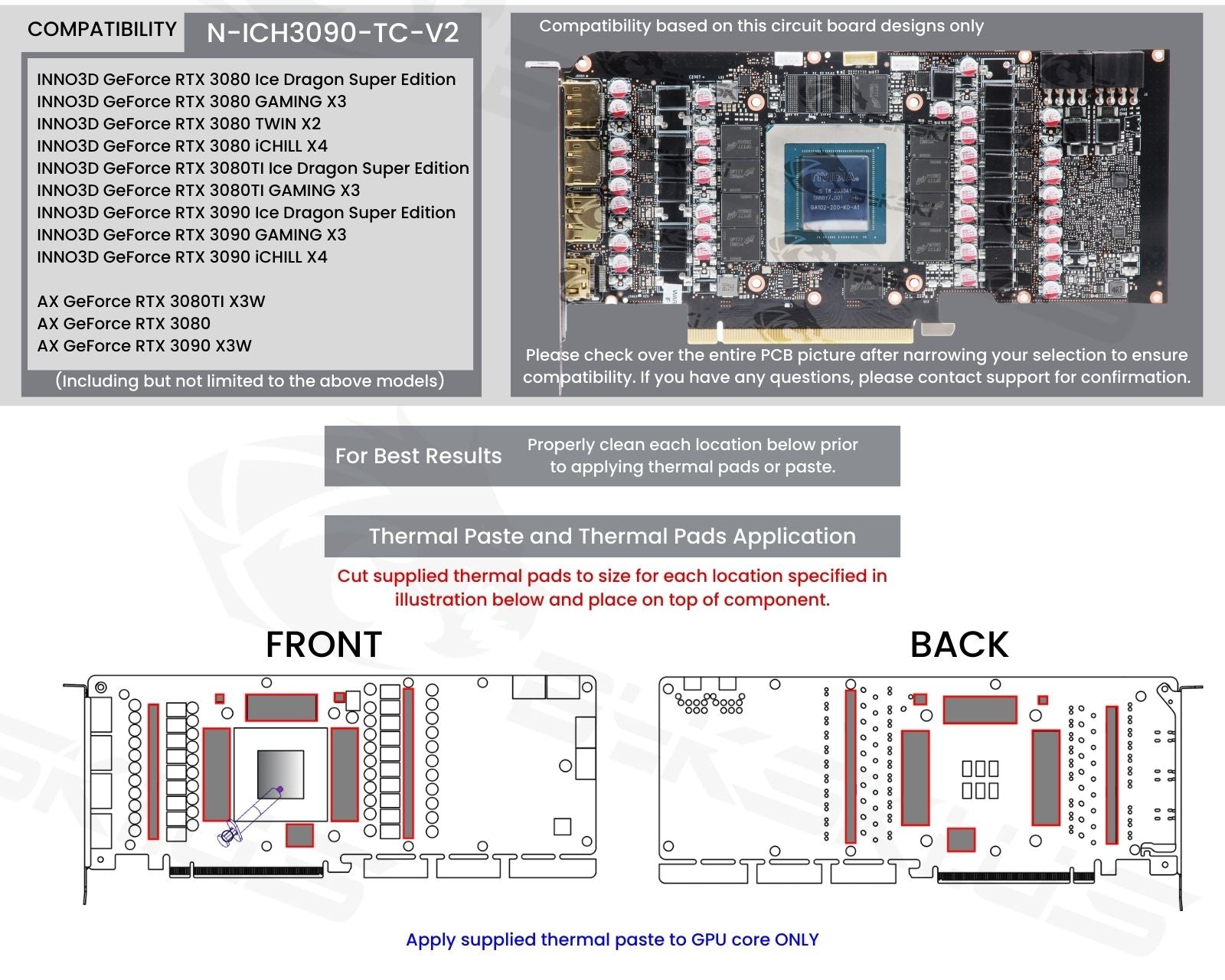

Once you have narrowed down your selection, please carefully examine the complete PCB image to ensure compatibility. If you have any doubts or inquiries, feel free to contact our support team for confirmation. Remember, compatibility is determined solely by these circuit board designs.

Parts Included

• 1x Full Coverage GPU Water Block (Front)
• 1x Full Coverage GPU Water Block (Back)
• 2x Stop Fitting
• 1x Mounting Hardware
• Thermal grease
• 1x 5v A-RGB (RBW) Light
• (Warning: Addressable RGB (RBW) is 5V and is ONLY compatible with Addressable RGB (RBW) components. RGB is 12V and is ONLY compatible with RGB components. Mix and match will NOT work and will cause damage.

Warnings

This is a repair or replacement-only item. Returns are not accepted on compatibility issues or if the block has had water/fluid run through it.

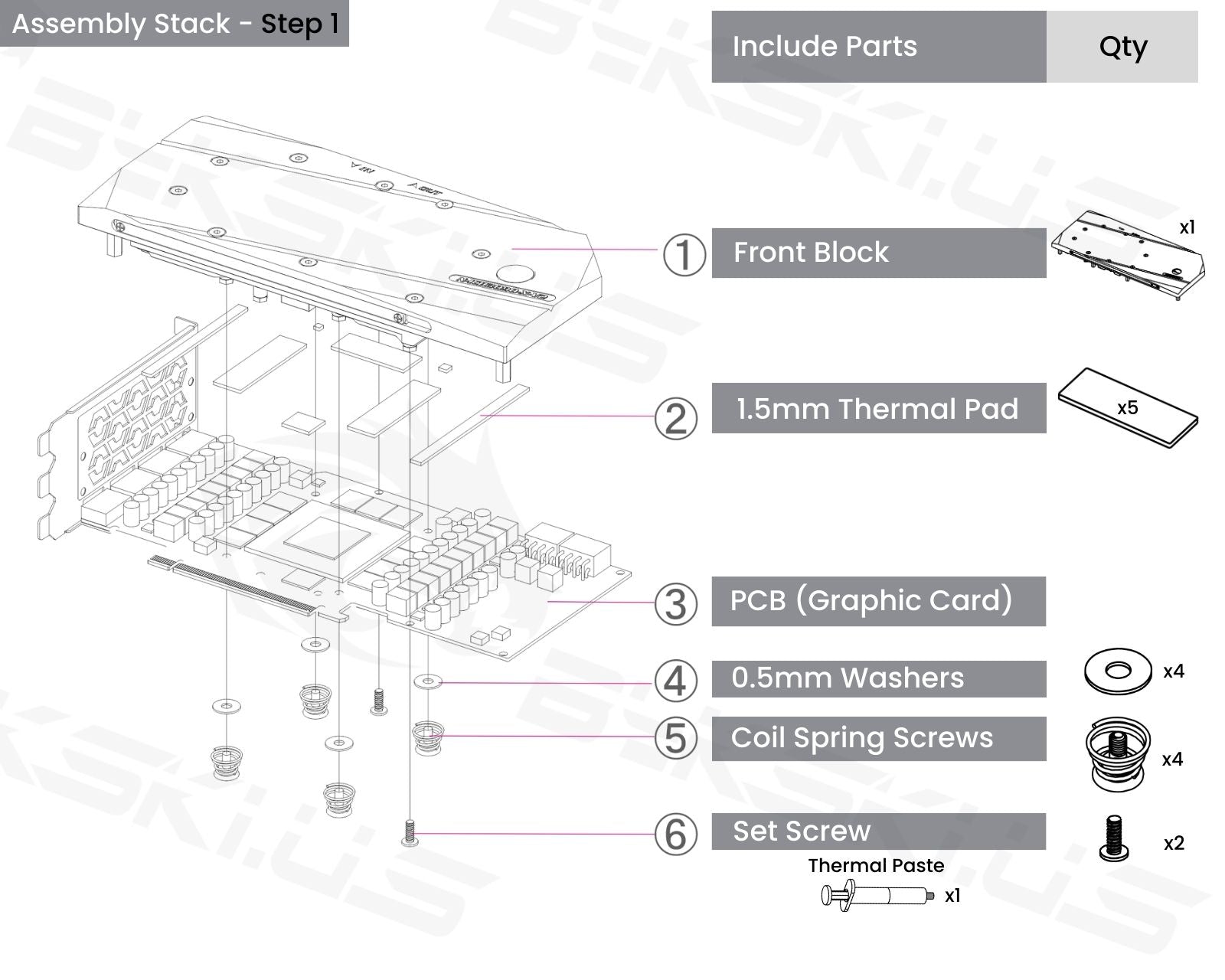

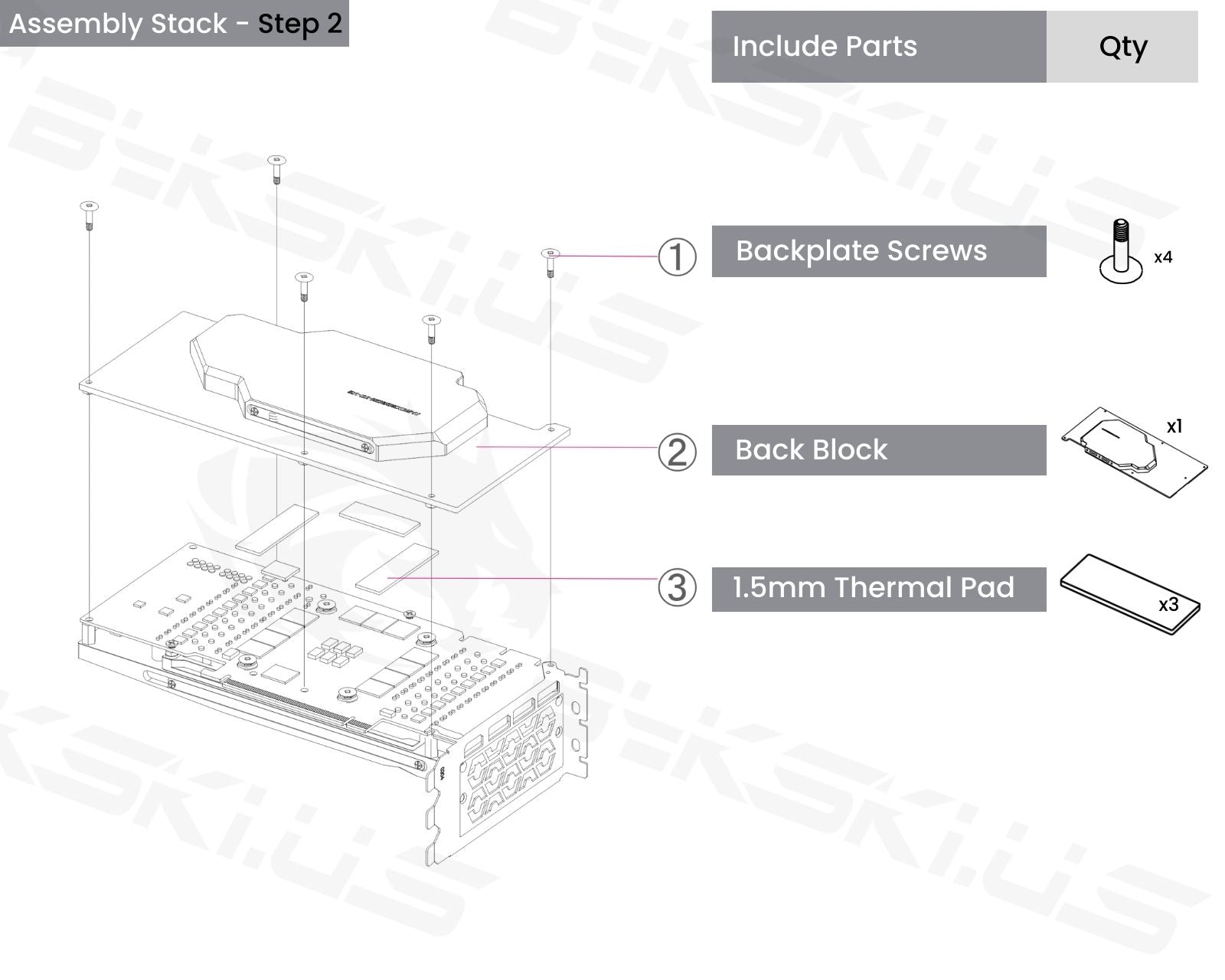

The manufacturer reserves the right to alter the block design to expand compatibility. The delivered item may not 100% match the pictured item. The product does NOT come with English instructions. Please see the product gallery images for the install guide if available. Generally, thermal pads should be installed on the card where the block has corresponding raised contact points, except the GPU core, which uses thermal paste. Installing pads on other components can lead to improper contact and poor performance.

Not responsible for any damage caused by or when using this product. Please use it at your own risk.
